| Brand | ADI |
| Date Code | 2201 |
| Packing | Tube |
| Package | PDIP-16 |
| Minimum Packing | 25pcs |

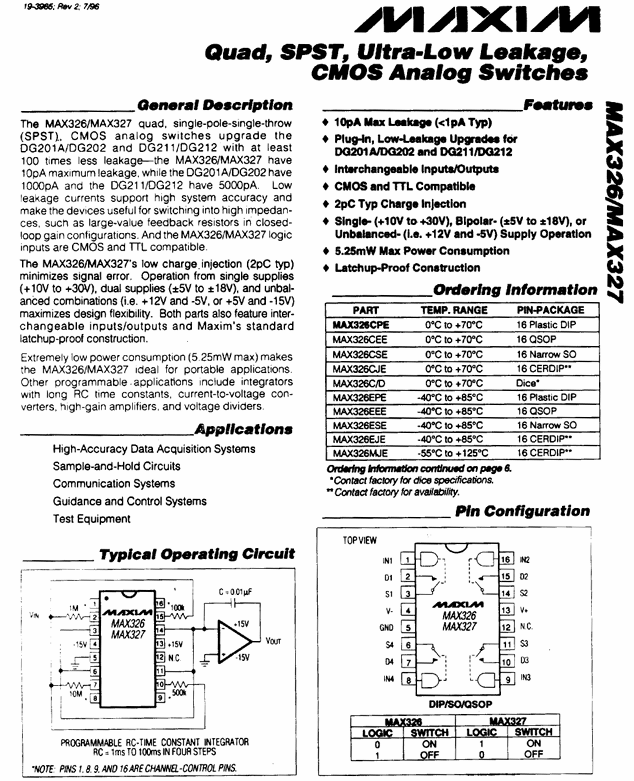

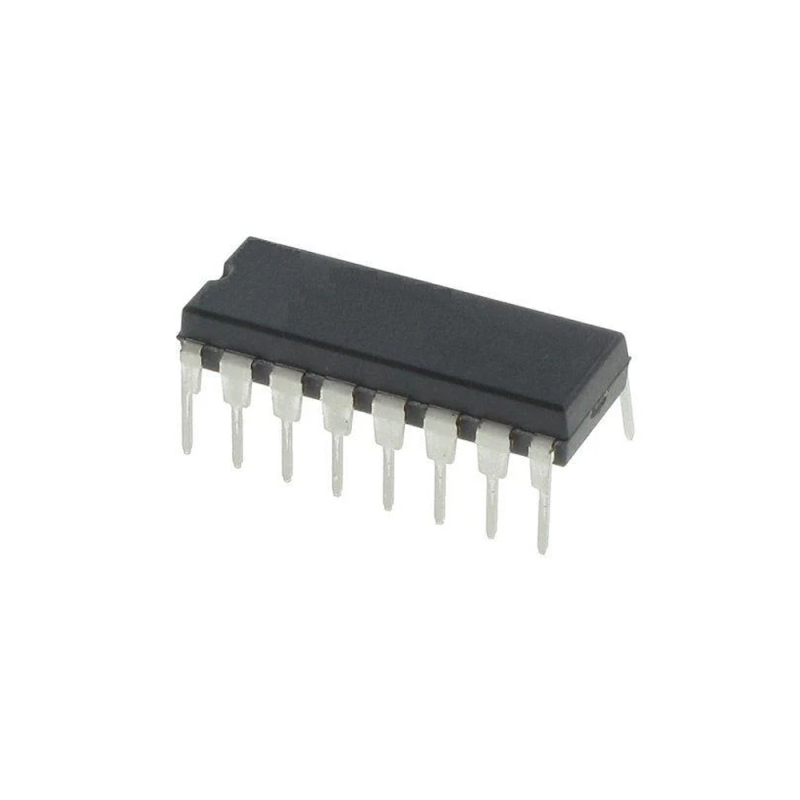

Analog Switch ICs Quad, SPST, Ultra-Low-Leakage, CMOS Anal
Features：
|
Product Attribute |
Attribute Value |
|
Manufacturer: |
Analog Devices Inc. |
|
Product Category: |
Analog Switch ICs |
|
Mounting Style: |
Through Hole |
|
Package / Case: |
PDIP-16 |
|
Number of Channels: |
4 Channel |
|
Configuration: |
4 x SPST |
|
On Resistance - Max: |
3.5 kOhms |
|
Supply Voltage - Min: |
10 V |
|
Supply Voltage - Max: |
30 V |
|
Minimum Dual Supply Voltage: |
+/- 5 V |
|
Maximum Dual Supply Voltage: |
+/- 18 V |
|
On Time - Max: |
1 us |
|
Off Time - Max: |
500 ns |
|
Minimum Operating Temperature: |
0 C |
|
Maximum Operating Temperature: |
+ 70 C |
|
Series: |
|
|
Packaging: |
Tube |
|
Brand: |
Analog Devices / Maxim Integrated |
|
Height: |
4.45 mm (Max) |
|
Length: |
19.43 mm (Max) |
|
Pd - Power Dissipation: |
470 mW |
|
Product Type: |
Analog Switch ICs |
|
Factory Pack Quantity: |
25 |
|
Subcategory: |
Switch ICs |
|
Supply Current - Max: |
250 uA |
|
Supply Type: |
Single Supply, Dual Supply |
|
Switch Continuous Current: |
20 mA |
|
Width: |
7.87 mm (Max) |
|
Part # Aliases: |
MAX326 |
|
Unit Weight: |
1.628 g |
