| Brand | ADI |
| Date Code | 2245 |
| Packing | Tube |
| Package | SSOP-48 |
| Minimum Packing | 37pcs |
Battery Management Multicell Bat Mon s

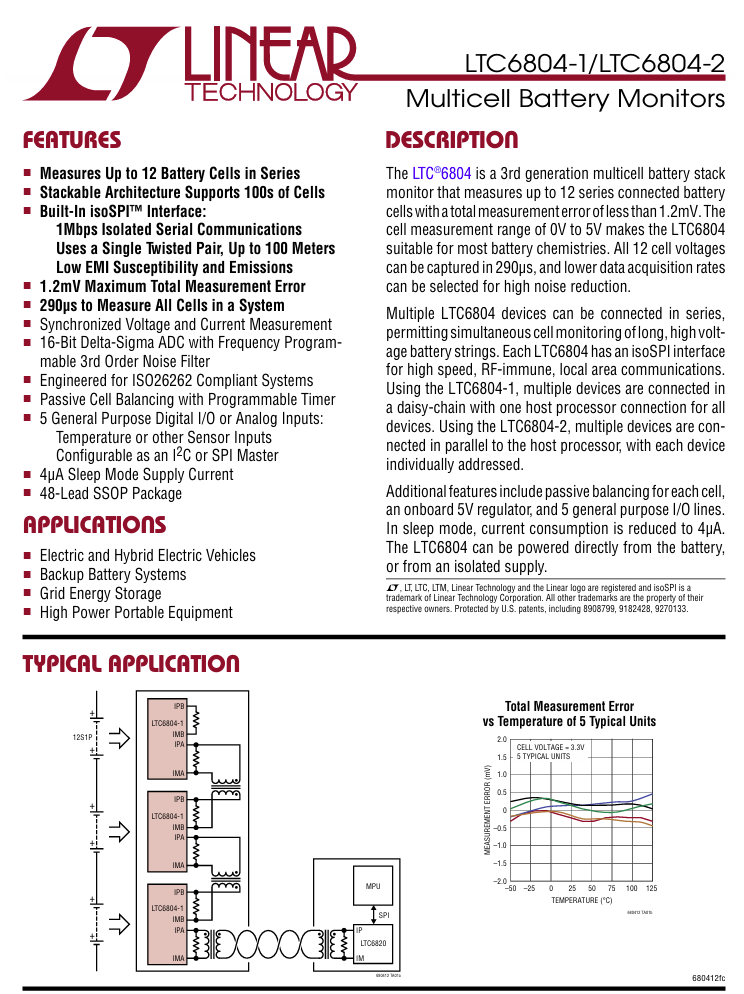

Features：
Measures Up to 12 Battery Cells in Series
Stackable Architecture Supports 100s of Cells
Built-In isoSPI™ Interface:
1Mbps Isolated Serial Communications
Uses a Single Twisted Pair, Up to 100 Meters
Low EMI Susceptibility and Emissions
1.2mV Maximum Total Measurement Error
290μs to Measure All Cells in a System
Synchronized Voltage and Current Measurement
16-Bit Delta-Sigma ADC with Frequency Programmable 3rd Order Noise Filter
Engineered for ISO26262 Compliant Systems
Passive Cell Balancing with Programmable Timer
5 General Purpose Digital I/O or Analog Inputs:
Temperature or other Sensor Inputs
Configurable as an I2C or SPI Master
4μA Sleep Mode Supply Current
48-Lead SSOP Package

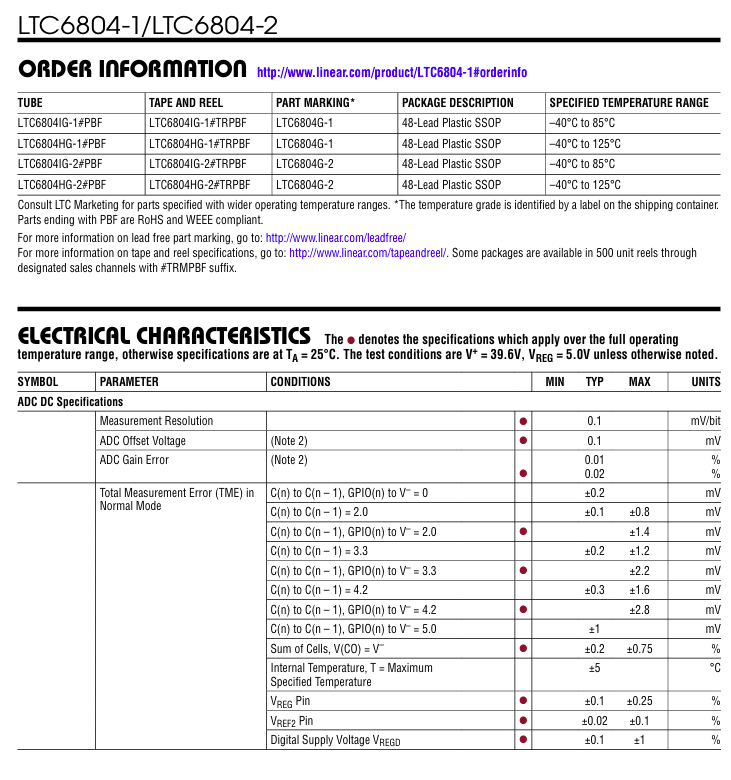

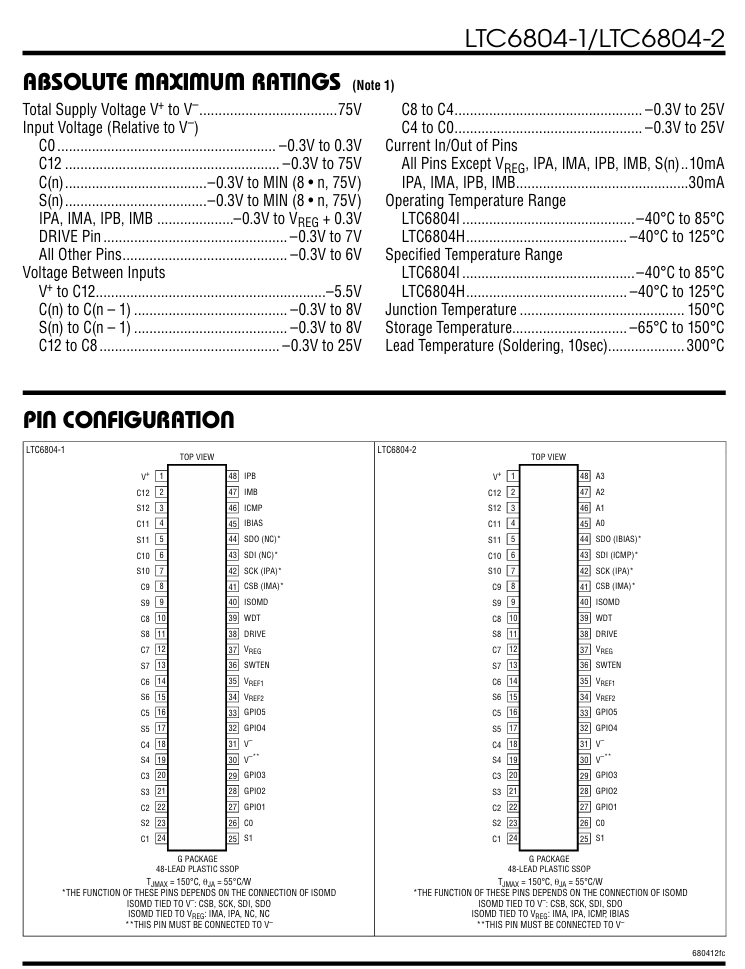

The LTC6804 is a 3rd generation multicell battery stack monitor that measures up to 12 series connected battery cells with a total measurement error of less than 1.2mV. The cell measurement range of 0V to 5V makes the LTC6804 suitable for most battery chemistries. All 12 cell voltages can be captured in 290μs, and lower data acquisition rates can be selected for high noise reduction.
Multiple LTC6804 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6804 has an isoSPI interface for high speed, RF-immune, local area communications. Using the LTC6804-1, multiple devices are connected in a daisy-chain with one host processor connection for all devices. Using the LTC6804-2, multiple devices are connected in parallel to the host processor, with each device individually addressed.
Additional features include passive balancing for each cell, an onboard 5V regulator, and 5 general purpose I/O lines. In sleep mode, current consumption is reduced to 4μA. The LTC6804 can be powered directly from the battery, or from an isolated supply.
Applications
Electric and Hybrid Electric Vehicles
Backup Battery Systems
Grid Energy Storage
High Power Portable Equipment
