Features：Ultralow RMS Noise: 0.8μVRMS (10Hz to 100kHz)
Ultralow Spot Noise: 2nV/√Hz at 10kHz
Ultrahigh PSRR: 76dB at 1MHz
Output Current: 500mA
Wide Input Voltage Range: 1.8V to 20V
Single Capacitor Improves Noise and PSRR
100μA SET Pin Current: ±1% Initial Accuracy
VIOC Pin Controls Upstream Regulator to Minimize Power Dissipation
Single Resistor Programs Output Voltage
Programmable Current Limit
Low Dropout Voltage: 260mV
Output Voltage Range: 0V to 15V
Programmable Power Good
Fast Start-Up Capability
Precision Enable/UVLO
Parallelable for Lower Noise and Higher Current
Internal Current Limit with Foldback
Minimum Output Capacitor: 10μF Ceramic
Reverse Battery and Reverse Current Protection

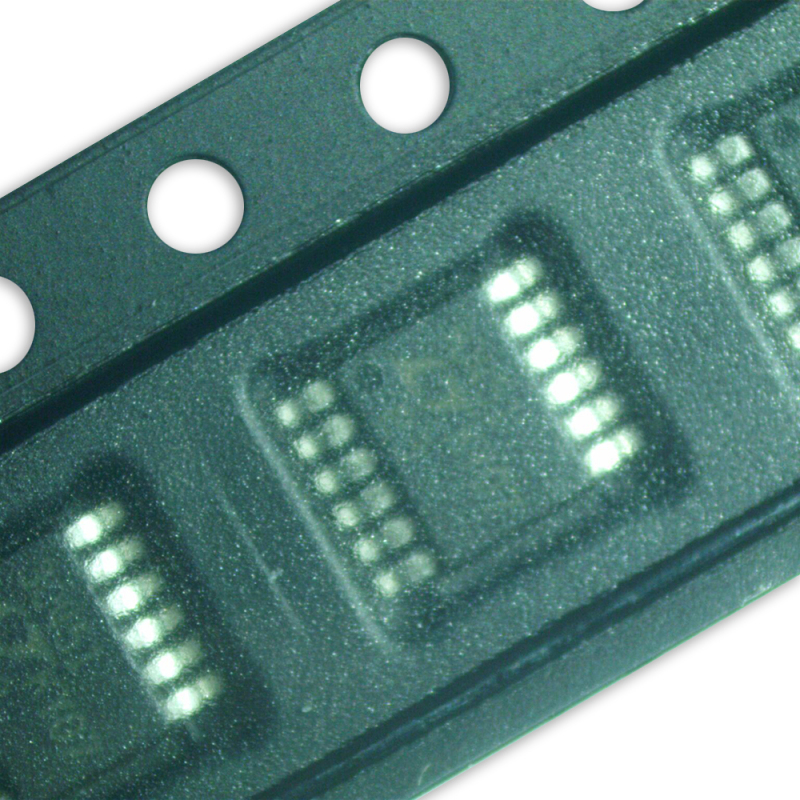

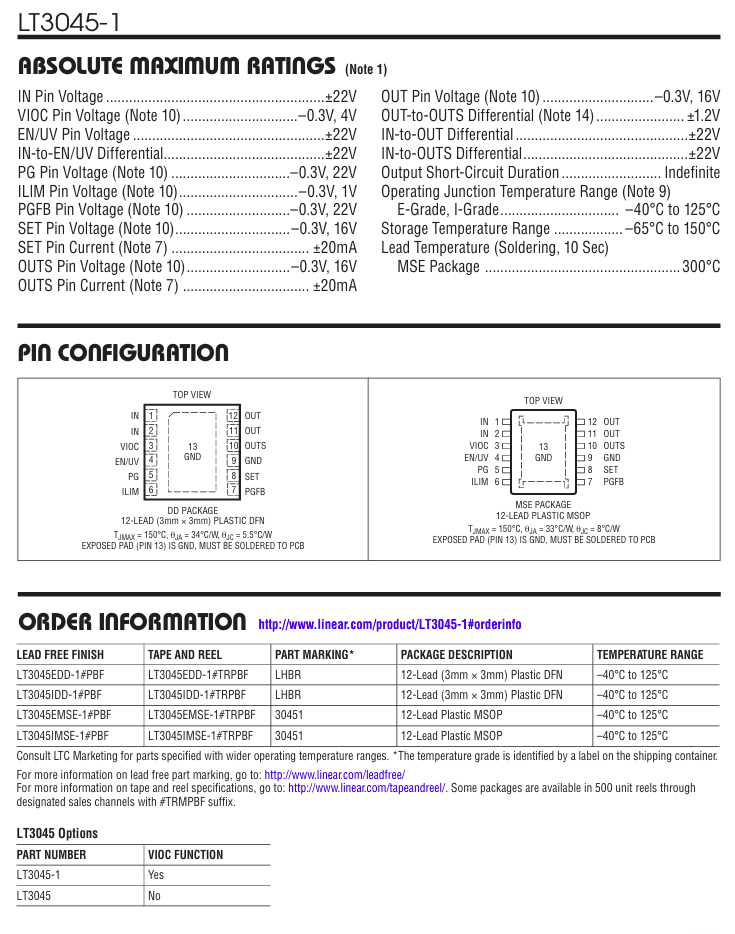

12-Lead MSOP and 3mm × 3mm DFN Packages

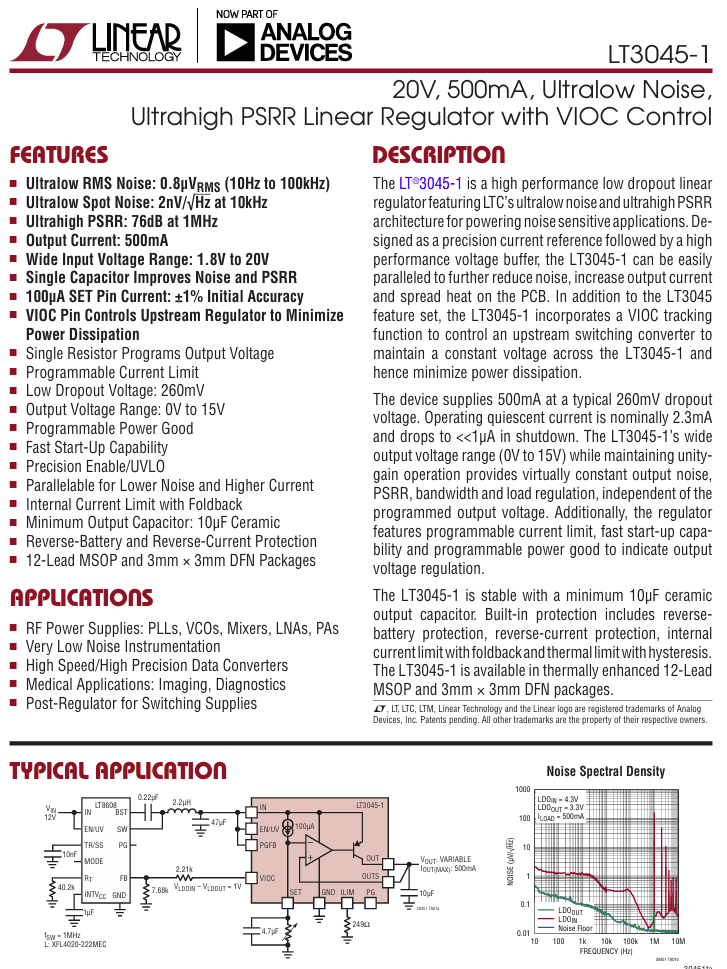

The LT3045-1 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3045-1 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB. In addition to the LT3045 feature set, the LT3045-1 incorporates a VIOC tracking function to control an upstream switching converter to maintain a constant voltage across the LT3045-1 and hence minimize power dissipation.
The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.3mA and drops to <<1μA in shutdown. The LT3045-1’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.
The LT3045-1 is stable with a minimum 10μF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3045-1 is available in thermally enhanced 12-Lead MSOP and 3mm × 3mm DFN packages.
ApplicationsRF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAs
Very Low Noise Instrumentation
High Speed/High Precision Data Converters
Medical Applications: Imaging, Diagnostics
Post-Regulator for Switching Supplies
