| Brand | LEUZE |
| Date Code | 22+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

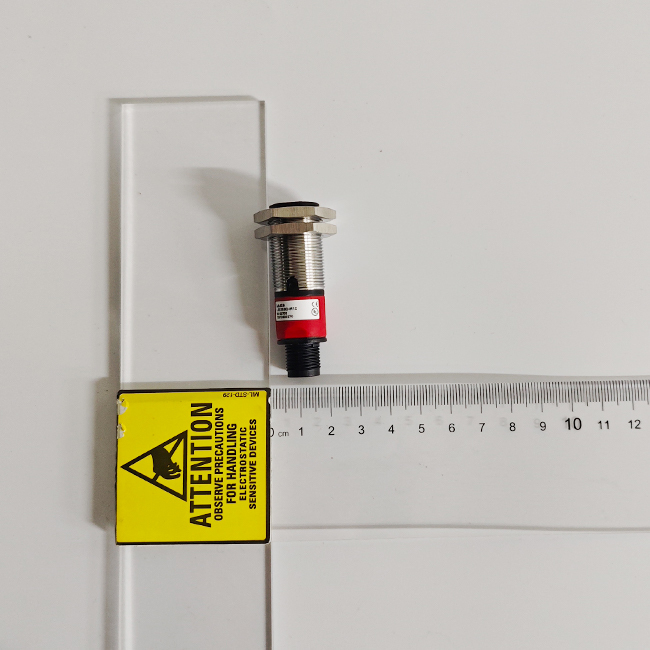

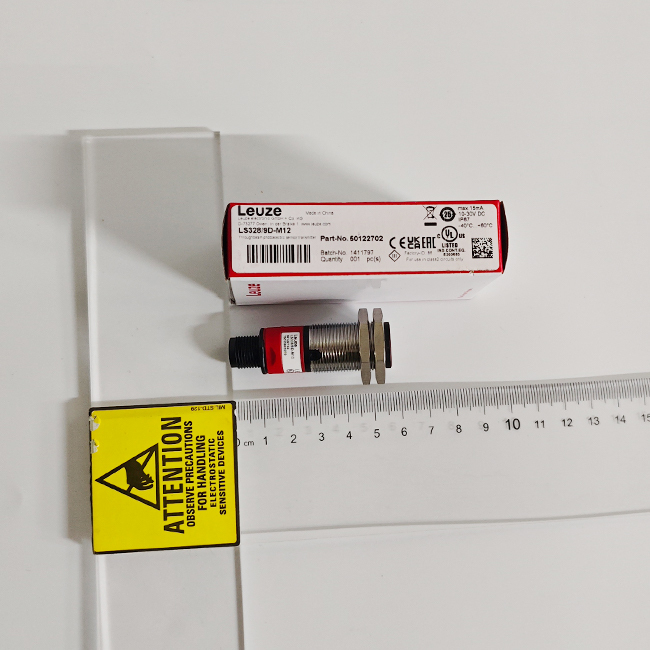

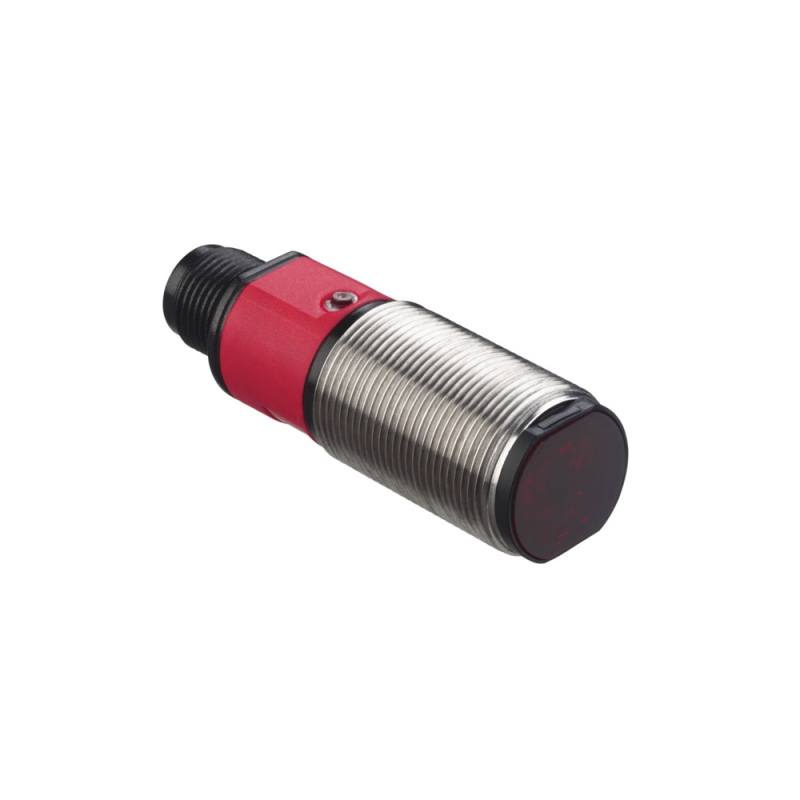

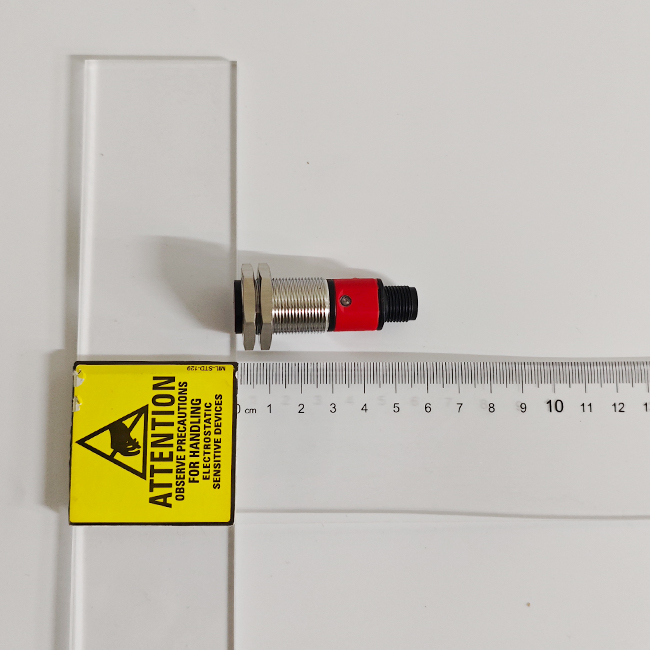

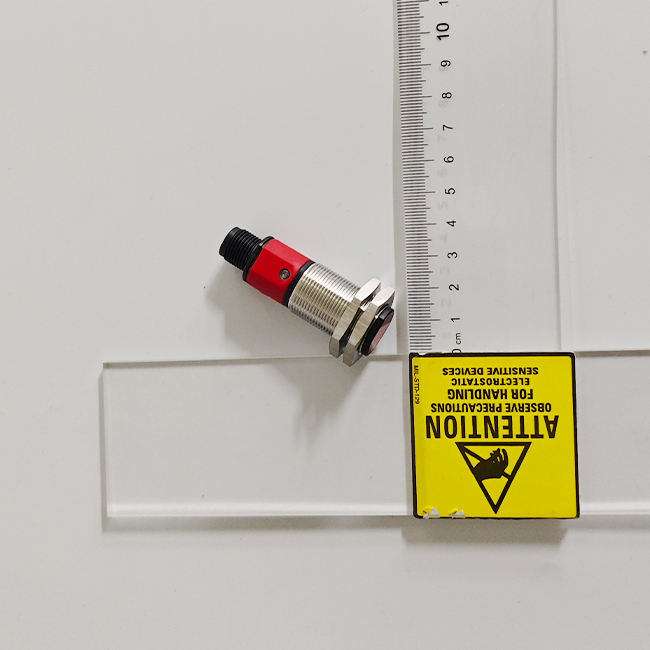

Part no.: 50122702

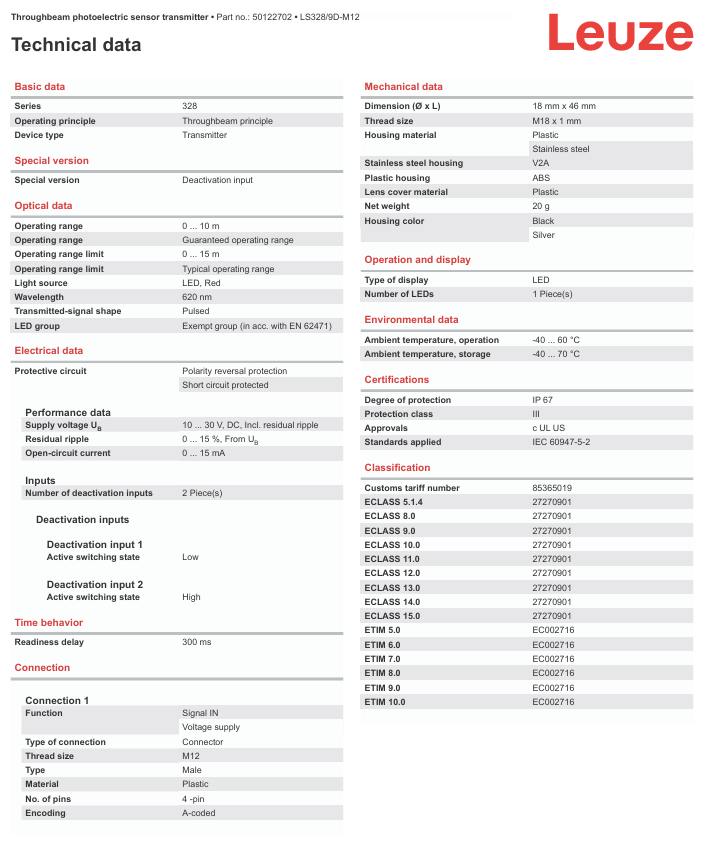

Features：
Operating range：0 ... 10 m
Operating range：Guaranteed operating range
Operating range limit：0 ... 15 m
Operating range limit：Typical operating range
Light source：LED, Red
Wavelength：620 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Type of connection：Connector
Thread size：M12
Type：Male
Material：Plastic
No. of pins：4 -pin
Encoding：A-coded

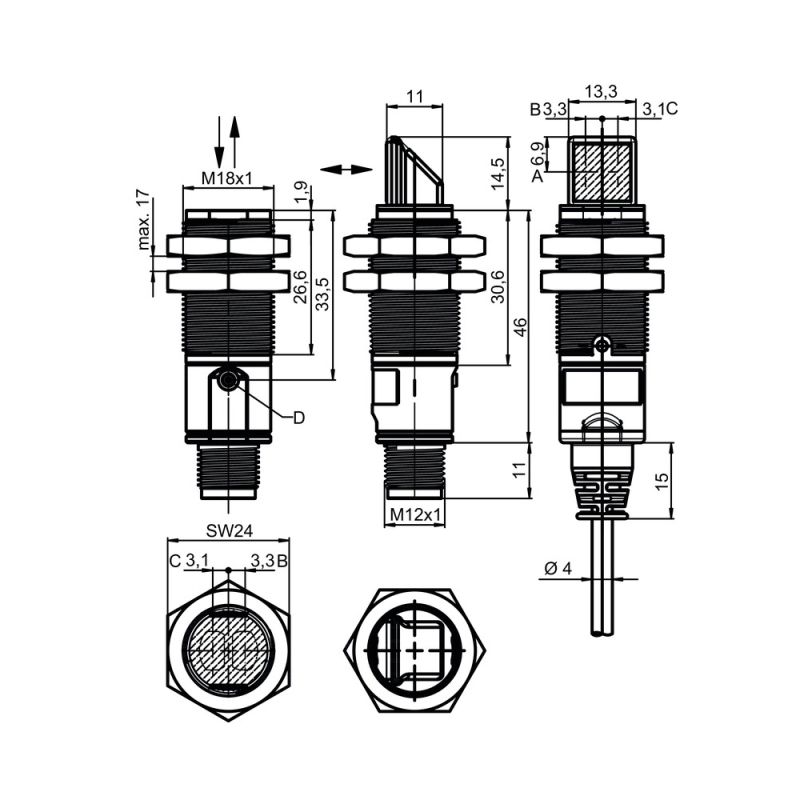

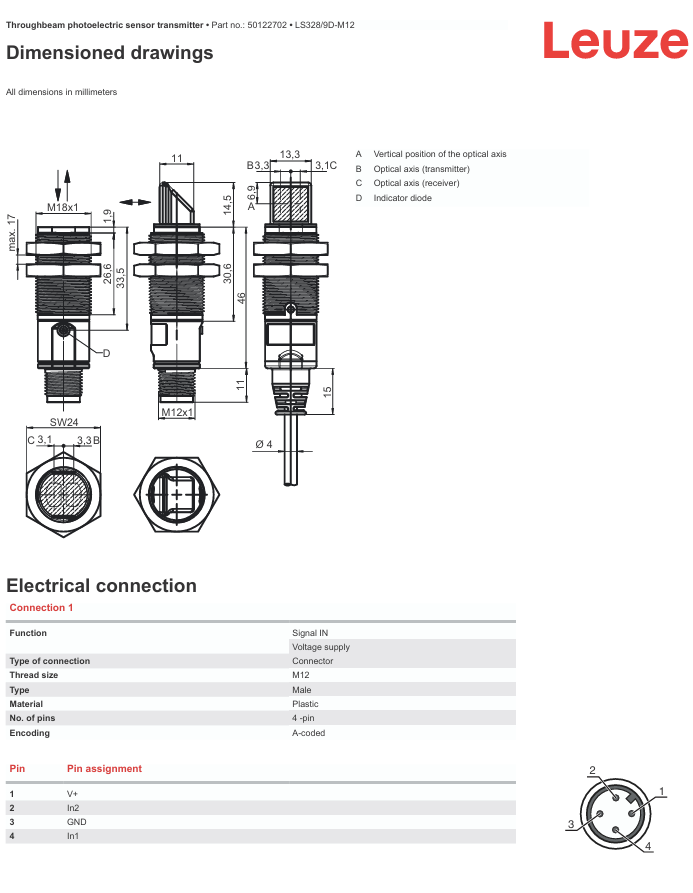

Dimension (Ø x L)：18 mm x 46 mm
Thread size：M18 x 1 mm
Housing material：Plastic
Stainless steel
Stainless steel housing：V2A
Plastic housing：ABS
Lens cover material：Plastic
Net weight：20 g
Housing color：Black/Silver
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
Protection class：III
Approvals：c UL US
Standards applied：IEC 60947-5-2
Optical sensors
Optical sensors use light in various forms to perform their detection tasks. An extensive product line is available with reliable and efficient sensor solutions for all applications that can be solved optically. Object detection for different surfaces, object sizes and colors requires various function principles, such as a throughbeam photoelectric sensor, a retro-reflective photoelectric sensor or a diffuse reflection sensor. All different operating principles are usually available in a given series (size). Universal series are also available with extended models and additional useful functions.
Throughbeam photoelectric sensors
Separate transmitter and receiver opposite one another
Reliable standard photoelectric sensors
With high function reserves and operating ranges up to 150 m
Retro-reflective photoelectric sensors
Transmitter and receiver in the same housing, opposing reflector
Special sensors for transparent media or extremely small objects
Models for foil-wrapped pallets or highly accurate positioning
Diffuse sensors
Object detection in front of a background
Available in a variety of special designs
Red-light and infrared models, solutions with IO-Link for format changeover
Sensors for Ex applications
Universal sensors for use in potentially explosive areas
Certified in accordance with ATEX and IECEx directives
Devices with type examination certificates for zone 2 and 22, as well as zone 1 and 21
Similar Models:
LS328I/9D-200-M12 50144556 LE328/4P-200-M12 50144557 LS328/9D 50122703 LE328/4P 50122710 LS328/9D-M12 50122702 LE328/4P-M12 50122709 LS328.W/9D 50122701 LE328/2N 50122712 LE328/2N-M12 50122711 LE328.W/4P 50122705 LE328.W/2N 50122707 LS328.W/9D-M12 50122700 LE328.W/4P-M12 50122704 LE328.W/2N-M12 50122706 LS328/XX-M12 50122699 LE328/4P-M12 50122709 LE328/2N-M12 50122711
