| Brand | Coilcraft |
| Date Code | 25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 1000pcs |
Power Inductors - SMD 15uH Shld 20% 950mOhms AECQ2
Features：

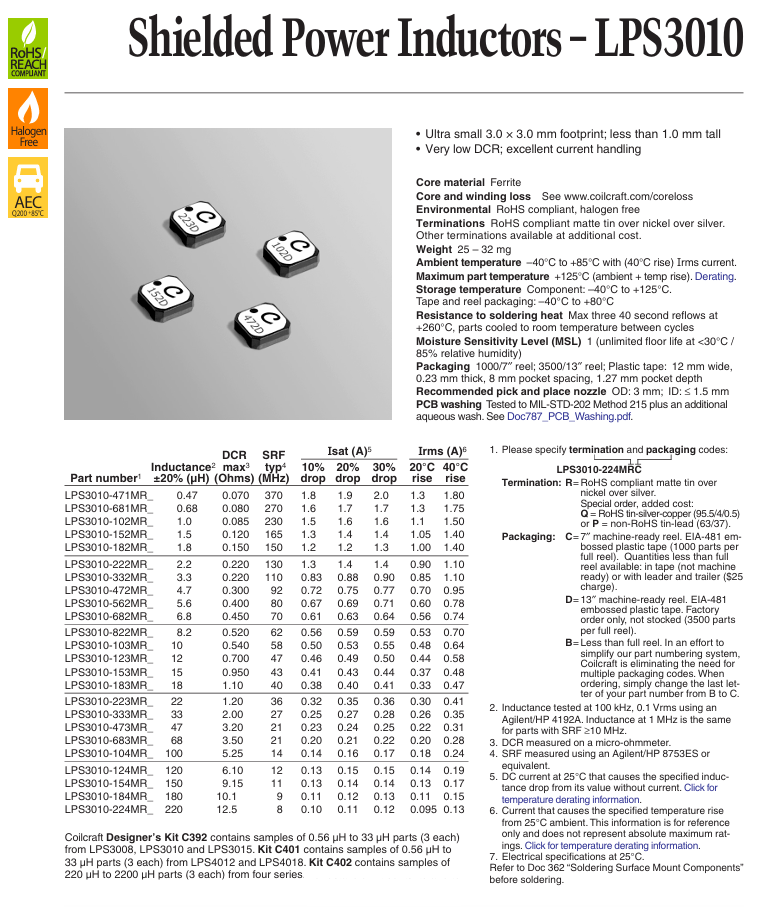

Coilcraft LPS3010 Series surface-mount power inductors offer high performance in a low-profile package. These compact power inductors offer excellent current handling, low DC resistance, a low profile, and magnetic shielding for high-density mounting.
High performance in low profile
High energy storage and low DC resistance
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
15 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
480 mA |
|
Maximum DC Resistance: |
950 mOhms |
|
Saturation Current: |
440 mA |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
43 MHz |
|
Termination: |
Standard |
|
Length: |
3 mm |
|
Width: |
3 mm |
|
Height: |
1 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
25 mg |
Similar Models：
LPS3010-471MRC LPS3010-681MRC LPS3010-102MRC LPS3010-152MRC LPS3010-182MRC LPS3010-222MRC LPS3010-332MRC LPS3010-472MRC LPS3010-562MRC LPS3010-682MRC LPS3010-822MRC LPS3010-103MRC LPS3010-123MRC LPS3010-153MRC LPS3010-183MRC LPS3010-223MRC LPS3010-333MRC LPS3010-473MRC LPS3010-683MRC LPS3010-104MRC LPS3010-124MRC LPS3010-154MRC LPS3010-184MRC
LPS3010-224MRC
