| Brand | Coilcraft |
| Date Code | 2410 |
| Packing | Tray |
| Package | SMD/SMT |
| Minimum Packing | 25pcs |

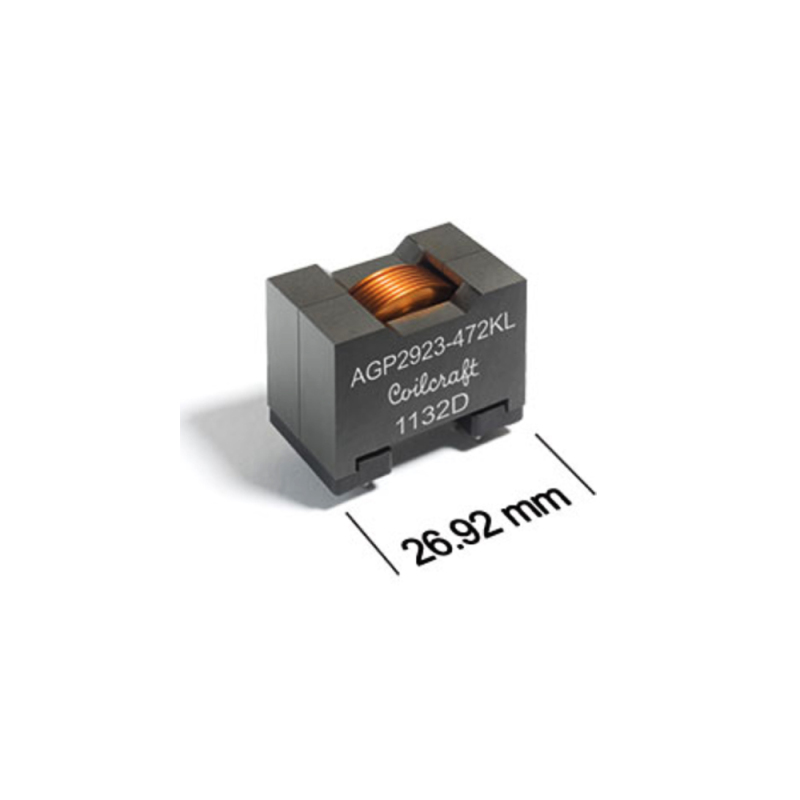

Power Inductors - Leaded 3.3uH Shld 10% 26A 2.6mOhms AECQ2
Features：

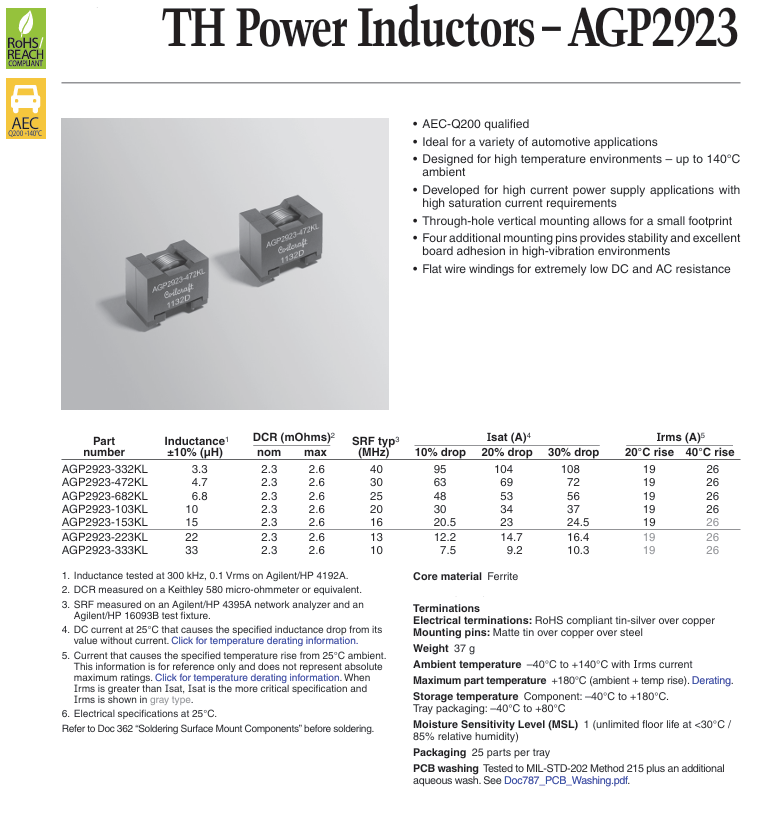

Coilcraft AEC-Q200 qualified AGP2923 Series power inductor is ideal for automotive applications and other high-temperature environments. AGP2923 power inductor, along with VER2923 and HA3588, is designed for high-efficiency power supplies requiring high current and high inductance.
Four mounting pins for additional stability in high-vibration environments
Flat wire windings provide extremely low DC and AC resistance.
Low loss ferrite cores provide flat L vs I
Magnetic shielding to minimize EMI
Through-hole (TH) mounting with small footprint
Exceeds AEC-Q200 requirements – up to 140°C ambient
|
Product Attribute |
Attribute Value |
|
Product Category: |
Power Inductors - Leaded |
|
Package / Case: |

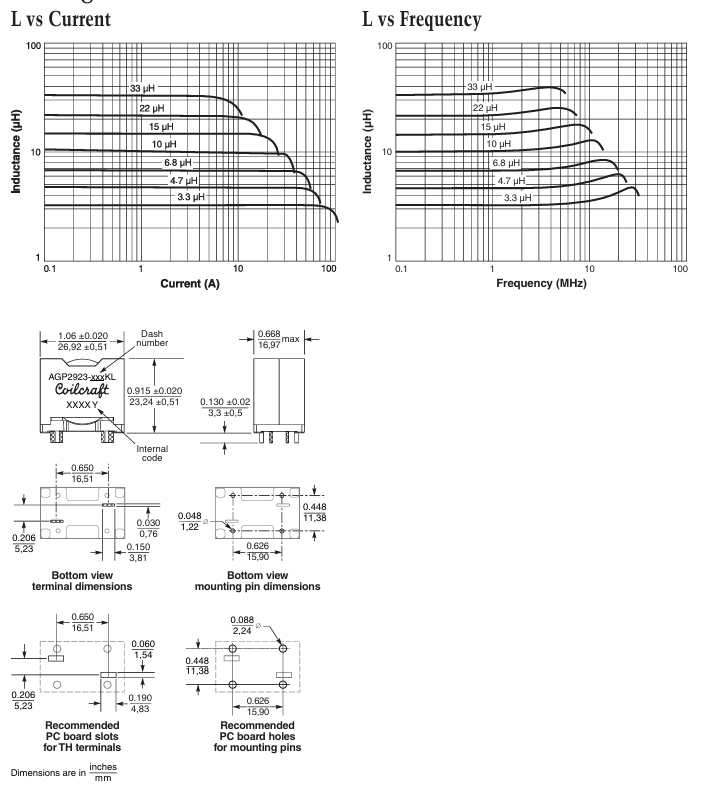

16.97 mm x 23.24 mm x 26.92 mm |
|
Shielding: |
Shielded |
|
Inductance: |
3.3 uH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
26 A |
|
Maximum DC Resistance: |
2.6 mOhms |
|
Saturation Current: |
108 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 140℃ |
|
Self Resonant Frequency: |
40 MHz |
|
Termination: |
Standard |
|
Mounting Style: |
PCB Mount |
|
Length: |
26.92 mm |
|
Width: |
16.97 mm |
|
Height: |
23.24 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
300 kHz |
|
Unit Weight: |
37 g |
