| Brand | Coilcraft |
| Date Code | 24+/25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

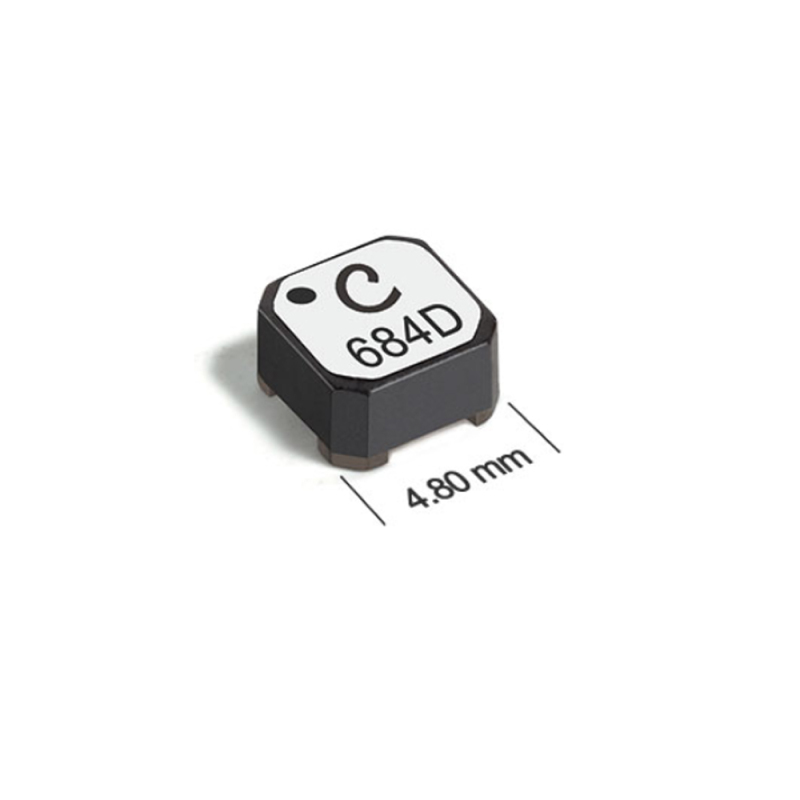

Coupled Inductors LPD5030V Mini Hi Iso 20% 825mOhms
Features：

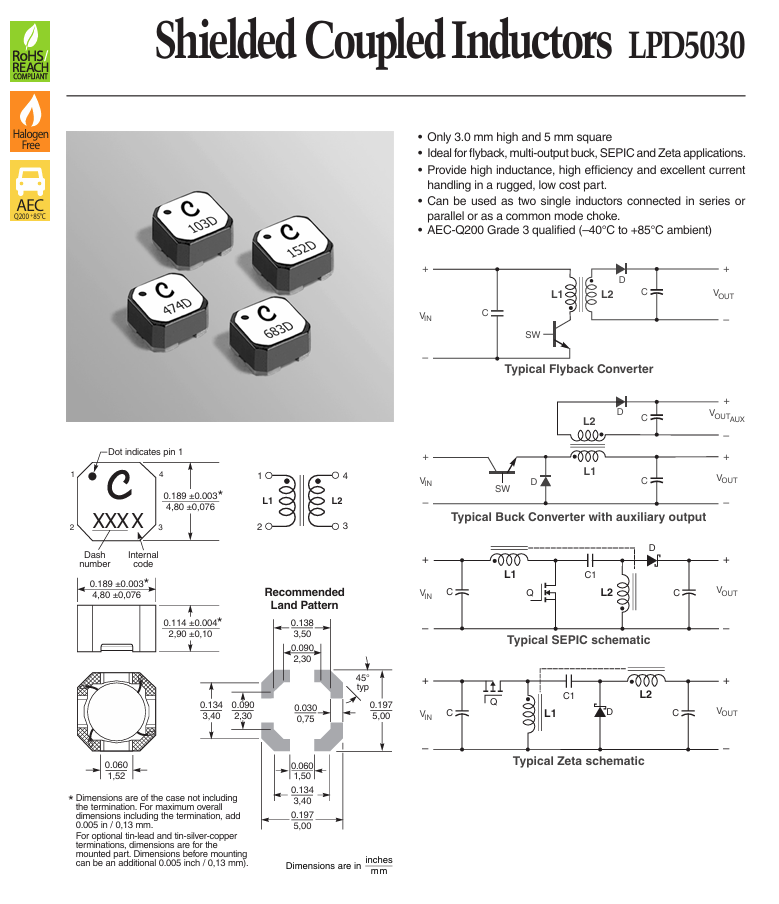

Coilcraft LPD5030 Series surface-mount 1:1 coupled power inductors are ideal for Flyback, SEPIC, Cuk, Zeta and other applications. Their compact, low-profile design and magnetic shielding make them ideal for high-density circuits.
Low-profile design with smaller footprint than MSD Family
Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetically shielded to minimize EMI
AEC-Q200 Grade 3 (−40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Inductance - Parallel: |
33 uH |
|
Tolerance: |
20 % |
|
Maximum DC Resistance: |
825 mOhms |
|
Length: |
4.8 mm |
|
Width: |
4.8 mm |
|
Height: |
0.9 mm |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Unit Weight: |
225 mg |

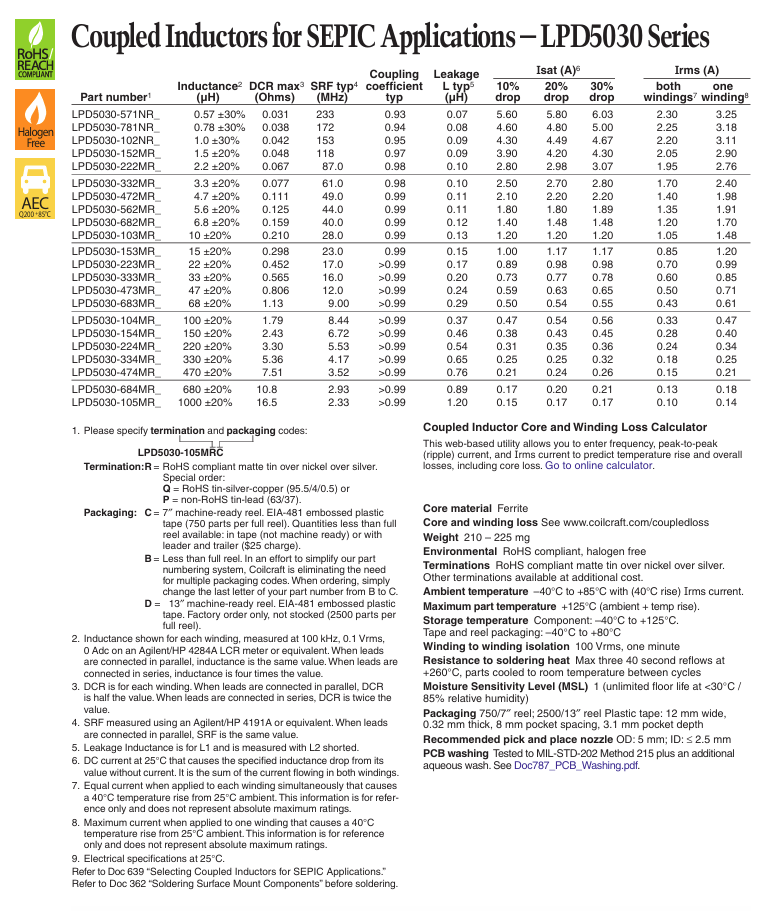

Similar Models：
LPD5030-571NRC LPD5030-781NRC LPD5030-102NRC LPD5030-152MRC LPD5030-222MRC LPD5030-332MRC LPD5030-472MRC LPD5030-562MRC LPD5030-682MRC LPD5030-103MRC LPD5030-153MRC LPD5030-223MRC LPD5030-333MRC LPD5030-473MRC LPD5030-683MRC LPD5030-104MRC LPD5030-154MRC LPD5030-224MRC LPD5030-334MRC LPD5030-474MRC LPD5030-684MRC LPD5030-105MRC LPD5030-571NRC LPD5030-781NRC LPD5030-102NRC LPD5030-152MRC LPD5030-222MRC LPD5030-332MRC LPD5030-472MRC LPD5030-562MRC LPD5030-682MRC LPD5030-103MRC LPD5030-153MRC LPD5030-223MRC LPD5030-333MRC LPD5030-473MRC LPD5030-683MRC LPD5030-104MRC LPD5030-154MRC LPD5030-224MRC LPD5030-334MRC LPD5030-474MRC LPD5030-684MRC LPD5030-105MRC
