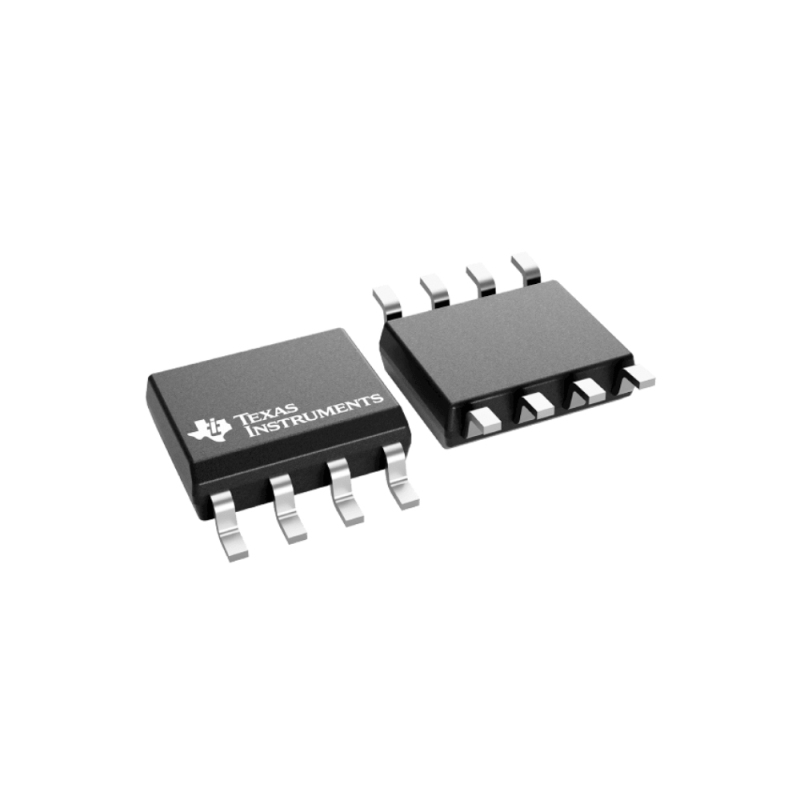

In Stock ! Texas Instruments Gate Drivers LM5104MX/NOPB

2-A, 100-V half bridge gate driver with 8-V UVLO and adaptive delay

Features：

Quality information

Packaging information

Features for the LM5104

• Drives Both a High-Side and Low-Side N-Channel MOSFET
• Adaptive Rising and Falling Edges With Programmable
  Additional Delay
• Single Input Control
• Bootstrap Supply Voltage Range up to 118-V DC
• Fast Turnoff Propagation Delay (25 ns Typical)
• Drives 1000-pF Loads With 15-ns Rise and Fall Times
• Supply Rail Undervoltage Lockout
• SOIC and WSON-10 4-mm × 4-mm Package

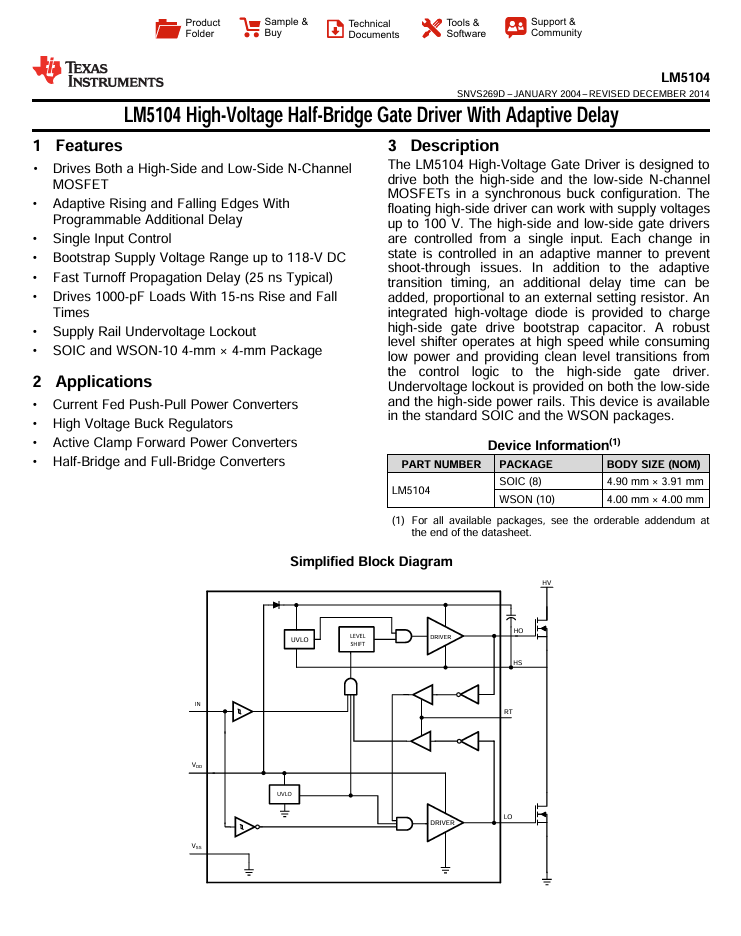

Description for the LM5104

The LM5104 High-Voltage Gate Driver is designed to drive both the high-side and the low-side N-channel MOSFETs in a synchronous buck configuration. The floating high-side driver can work with supply voltages up to 100 V. The high-side and low-side gate drivers are controlled from a single input. Each change in state is controlled in an adaptive manner to prevent shoot-through issues. In addition to the adaptive transition timing, an additional delay time can be added, proportional to an external setting resistor. An integrated high-voltage diode is provided to charge high-side gate drive bootstrap capacitor. A robust level shifter operates at high speed while consuming low power and providing clean level transitions from the control logic to the high-side gate driver. Undervoltage lockout is provided on both the low-side and the high-side power rails. This device is available in the standard SOIC and the WSON packages.
