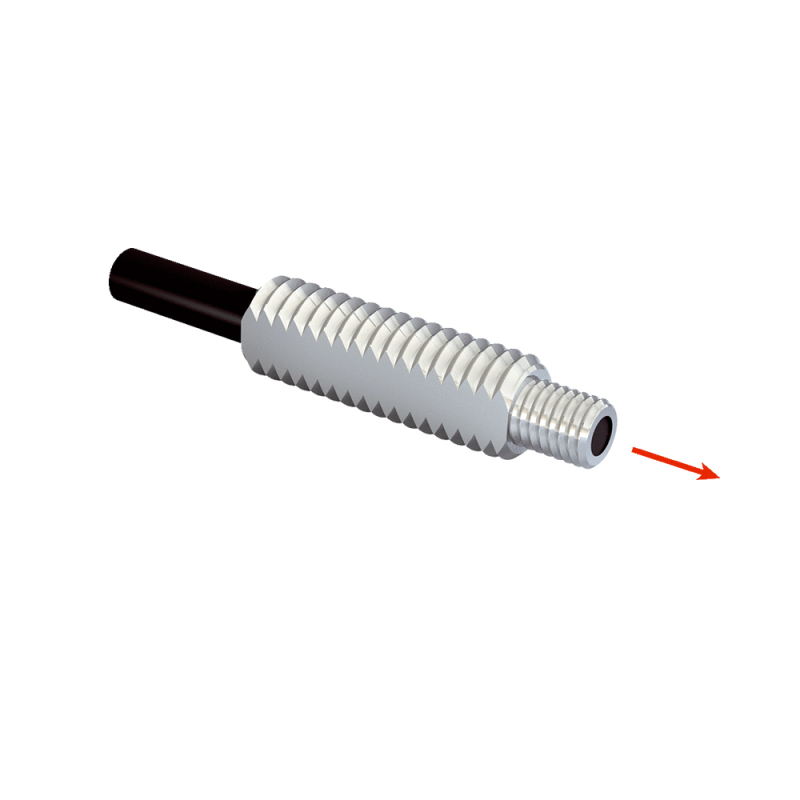

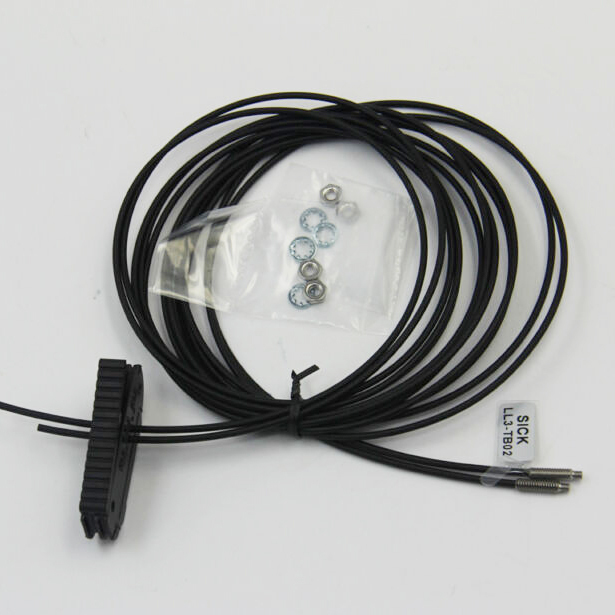

In Stock ! SICK Fiber-optic sensors LL3-TB02

Part no.: 5308048

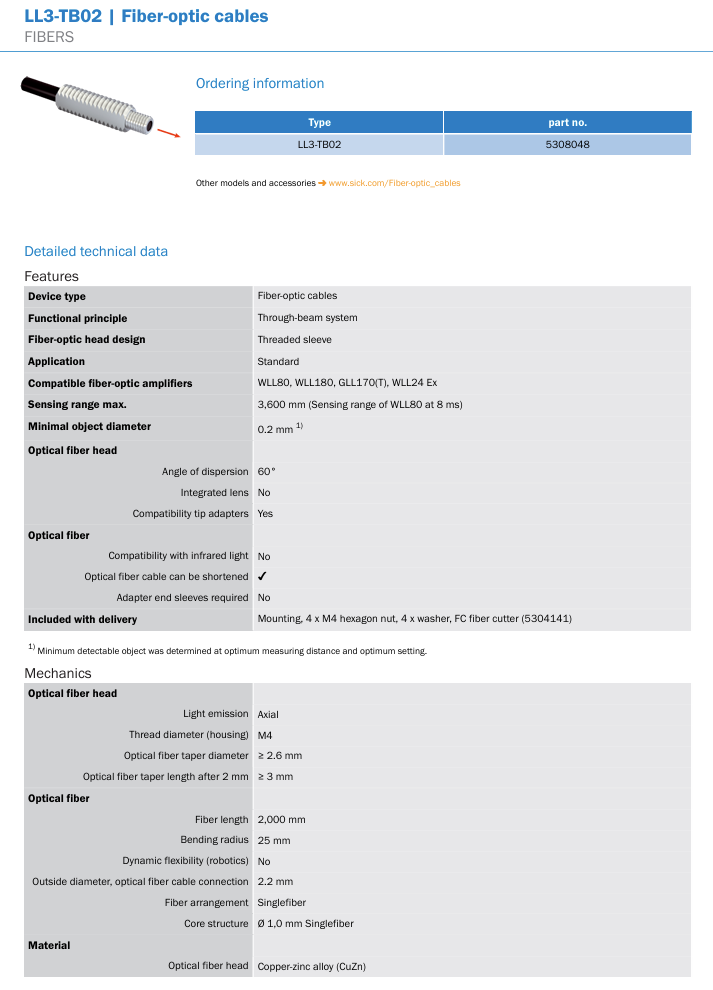

Features：

Sensing range max.：3,600 mm (Sensing range of WLL80 at 8 ms)

Minimal object diameter：0.2 mm

Optical fiber head：

Angle of dispersion：60°

Integrated lens：No

Compatibility tip adapters：Yes

Optical fiber taper diameter：≥ 2.6 mm

Optical fiber taper length after 2 mm：≥ 3 mm

Optical fiber：

Fiber length：2,000 mm

Bending radius：25 mm

Dynamic flexibility (robotics)：No

Outside diameter, optical fiber cable connection：2.2 mm

Fiber arrangement：Singlefiber

Core structure：Ø 1,0 mm Singlefiber

Ambient operating temperature：–40 °C ... +70 °C

Fiber-optic sensors

Fiber-optic cables

Versatile solutions for different requirements: Optical fiber cables from SICK

Together with the right fiber optic amplifier, optical fiber cables are crucial for mastering complex detection tasks in automation technology. Optical fiber cables from SICK consist of three main components: a sensor head, a fiber, and a sheath. The durable fiber, which is protected by resistant materials, in combination with the wide range of sensor heads, makes optical fiber cables from SICK the right choice for numerous applications.

Benefits

Very large selection of fiber-optic cables with plastic and glass fibers, giving users more application flexibility

Resistant to damage caused by mechanical and chemical stress, as well as high temperatures

Standard and customer-specific types

Simple installation saves time

For detection of objects, surfaces, leading edges, and fluid levels

Very large selection of plastic and glass fiber-optic cables.

Fiber-optic cables resistant to chemicals and high temperature

Threaded and smooth sleeves, bands of light (array), 90° reflection versions available

Focused optics

Proximity and through-beam versions available

Plastic , protective metal or Teflon sheathing available
