| Brand | LEUZE |
| Date Code | 24+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

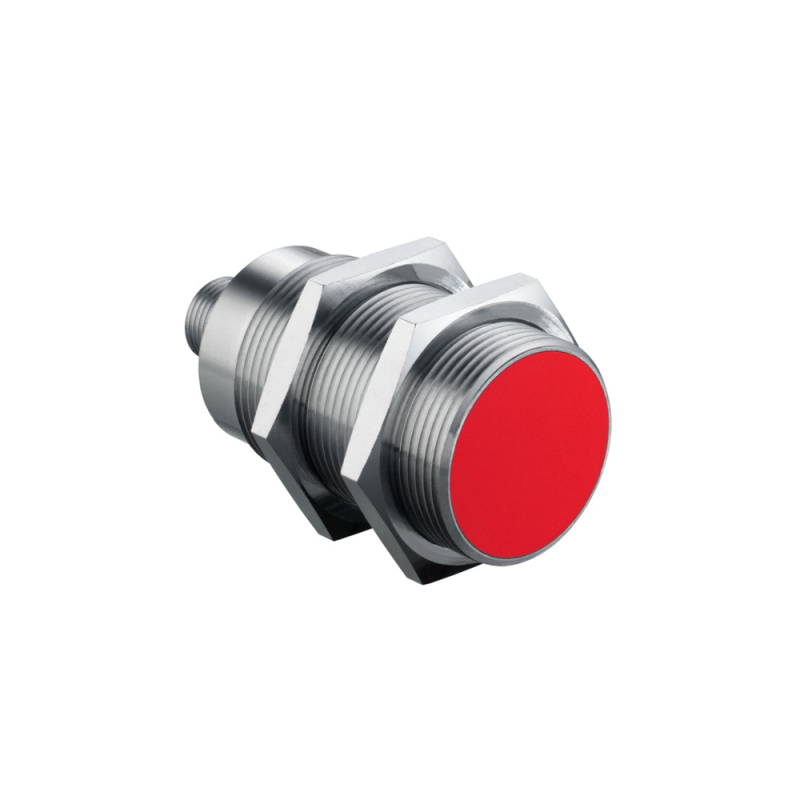

Part no.: 50109721
Features：
Series：230
type. operating range limit Sn：22 mm
Operating range Sa：0 ... 17.8 mm
.Supply voltage UB：10 ... 30 V, DC
Residual ripple：0 ... 20 %, From UB
Open-circuit current：0 ... 10 mA
Temperature drift, max. (in % of Sr)：10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr)：5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
Switching hysteresis：10 %
Voltage type：DC
Switching current, max.：200 mA
Residual current, max.：0.1 mA
Voltage drop：≤ 2 V
Switching frequency：200 Hz
Readiness delay：200 ms
Design：Cylindrical
Dimension (Ø x L)：30 mm x 73.5 mm
Thread size：M30 x 1.5 mm
Type of installation：Embedded
Housing material：Metal
Metal housing：Chromed brass
Sensing face material：Plastic, Polybutylene (PBT)
Net weight：155 g
Housing color：Red, RAL 3000 Silver
Standard measuring plate：66 x 66 mm², Fe360
Type of display：LED
Ambient temperature, operation：-25 ... 70 °C
Ambient temperature, storage：-25 ... 70 °C
Degree of protection：IP 67
Protection class：II
Inductive switches
Inductive sensors are the industrial standard for the contactless detection of metallic objects.
The Leuze product range includes a wide variety of standard and special sensors that are available in many different designs and have already been tried and tested millions of times by our customers.
In particular our extremely robust all stainless steel sensors, sensors with extended switching distance or miniature sensors for extremely constrained spaces have again and again proven to be ideal for challenging applications.
Standard sensors
Popular standard portfolio for a wide range of applications in all industries
Outstanding price-performance ratio
Up to 2x switching distance
Cylindric designs with external thread
UL-certified
Advanced sensors
Extensive portfolio with cubic and cylindrical designs
Short and normal designs
Sensors with high-end performance and UL certification
Up to 3x switching distance and antivalent sensors available
Special sensors
Sensors with an extra level of performance
All stainless steel sensors for extreme requirements
10-320V AC/DC 2-wire sensors
Inductive sensors with impressive cost effectiveness: The new IS D series for industrial automation
The new IS D series’ inductive sensors offer a universal and reliable solution for the contactless detection of metallic objects in various industries. The portfolio includes the cylindrical designs M8, M12, M18 and M30 in the embedded and non-embedded installation variants. The sensors are easy to install thanks to their external thread and are UL-certified to meet the requirements of international standards. The excellent price-performance ratio makes the IS D series a cost-effective solution for projects with a large number of sensors.
Your benefit
For a wide range of applications in various industries
Excellent price-performance ratio
Up to 2x switching distance
Common cylindrical designs with external thread
Robust bending protection (for cable variants) for variable applications
UL-certified
Similar Models:
IS 230MM.2/4NO-22E-S12 IS 230MM.2/4NC-22E-S12 ISS 230MM/44-15E-S12 ISS 230MM/44-15E ISS 230MM/44-10E-S12 ISS 230MM/44-10E IS 230MM/4NC-10E IS 230MM/4NC-10E-S12 IS 230MM/2NO-22E IS 230MM/4NC-22E-S12 IS 230MM/4NO-22E-S12 IS 230MM/4NO-22E IS 230MM/2NO-10E IS 230MM/4NO-10E-S12 IS 230MM/4NO-10E
