| Brand | LEUZE |
| Date Code | 21+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

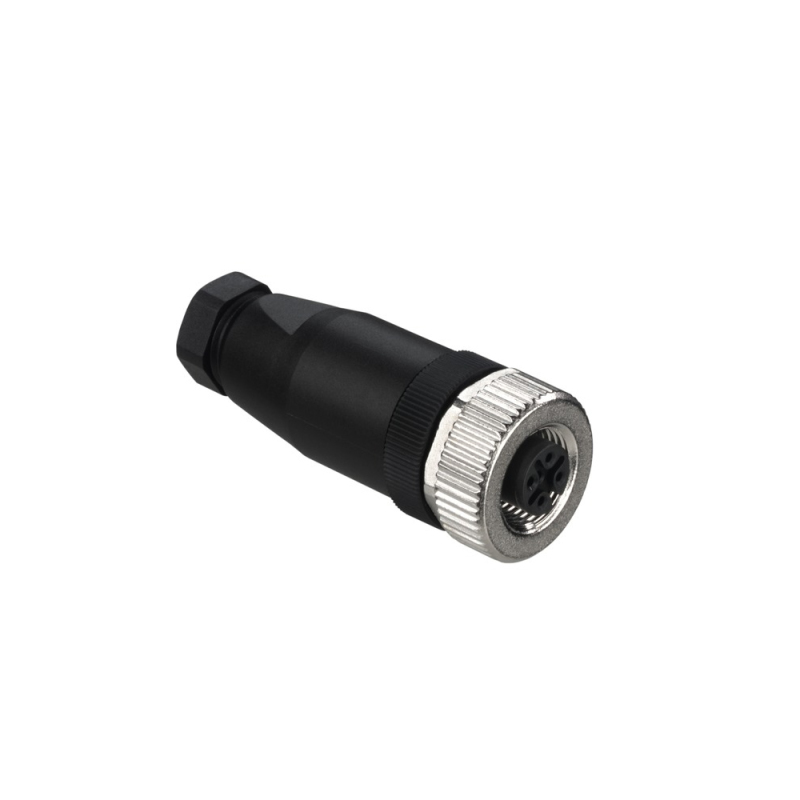

Leuze Connector KD 095-4A
Part no.: 50031323
Features：
Operating voltage：Max. 250 V AC/DC
Rated operating current：4,000 mA
Permissible conductor cross section：0.14 ... 0.75 mm²
Design：Cylindrical
Dimension (Ø x L)：20 mm x 52.5 mm
Width across flats：15 mm
Net weight：22 g
Connection 1
Type of connection：Connector
Thread size：M12
Type：Female
Material：Metal
Handle body material：Plastic
No. of pins：4 -pin
Encoding：A-coded
Version：Axial
Connection 2
Type of connection：Screw terminal
Ambient temperature, operation：-25 ... 85 °C
Degree of protection：IP 67
Cables and connectors
Sensors are only as good as the options for integrating them in your controls. For this reason, we offer you an extensive selection of accessories, including everything from the cables, to the connectors to the optional adapters. You can easily find the right parts for your application.
Connection cables
M8 and M12 connection cables for the connection of sensors in industrial environments
3-, 4-, 5-, 8-, 12-, 17-pin cables
Cables made of PUR, PVC, TPE and connectors with or without LED, angled or straight – high flexibility for many applications
Interconnection cables
M8 and M12 connection cables for the connection of sensors in industrial environments
3-, 4-, 5-, 8-, 12-, 17-pin cables
Cables made of PUR, PVC, TPE and connectors with or without LED, angled or straight – high flexibility for many applications
Y-distribution cables
For bundling signals
Configuration cables
User-configurable connectors
Afford maximum flexibility when planning the machine
Versions in metal and plastic
