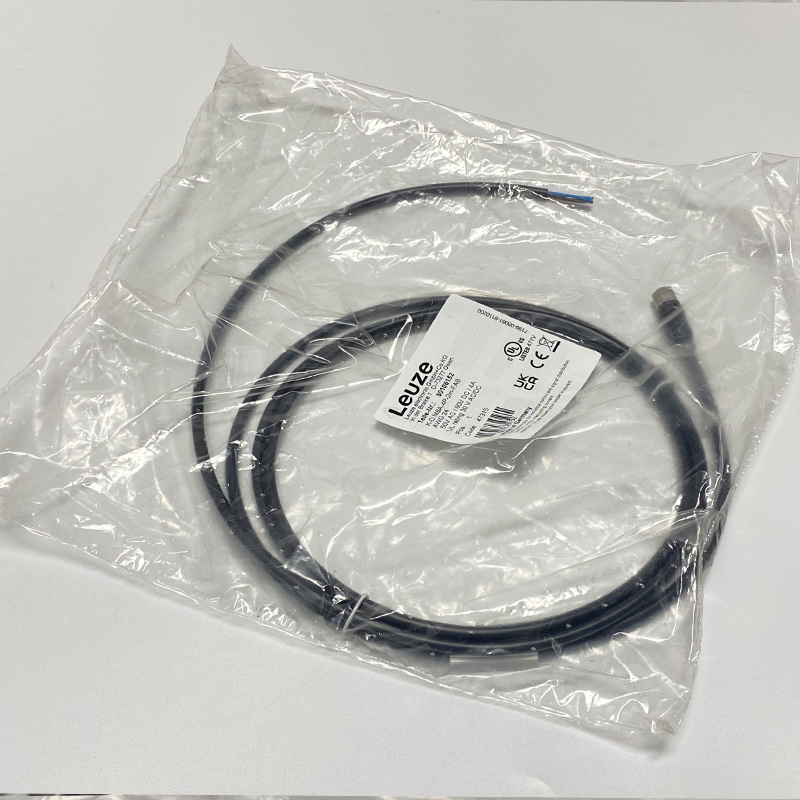

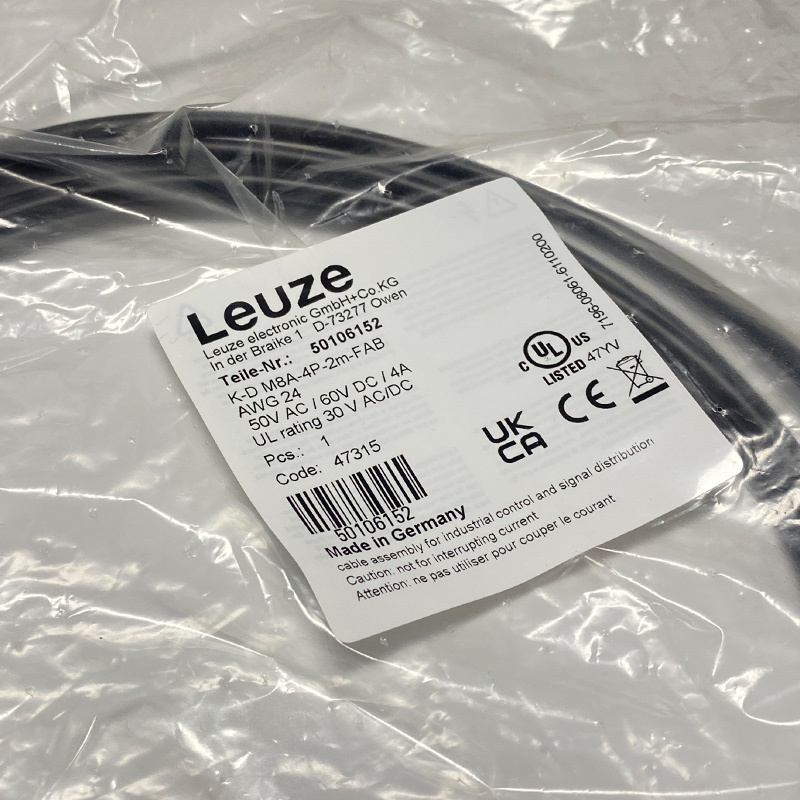

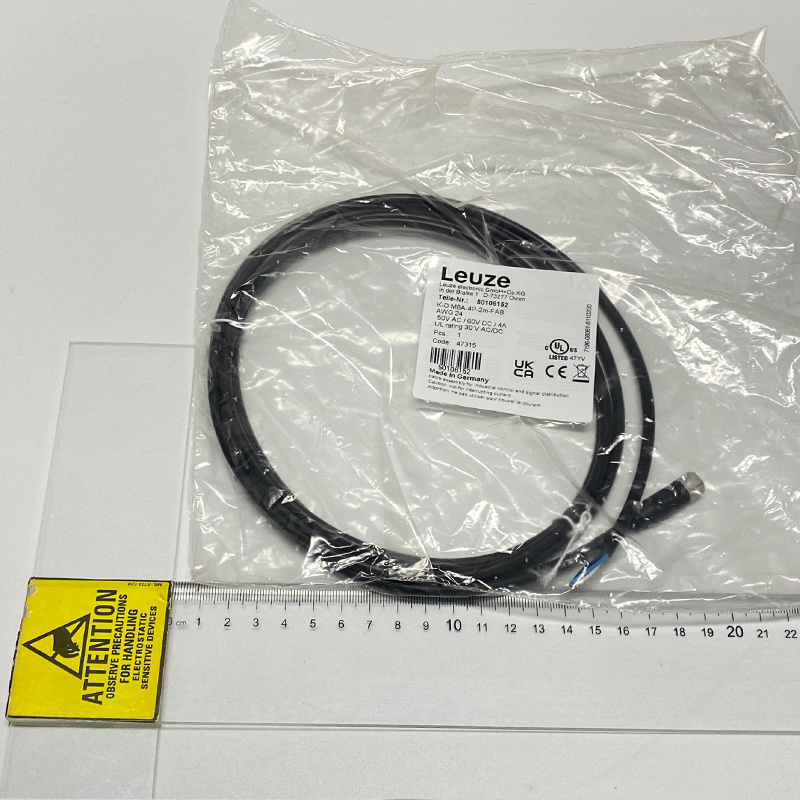

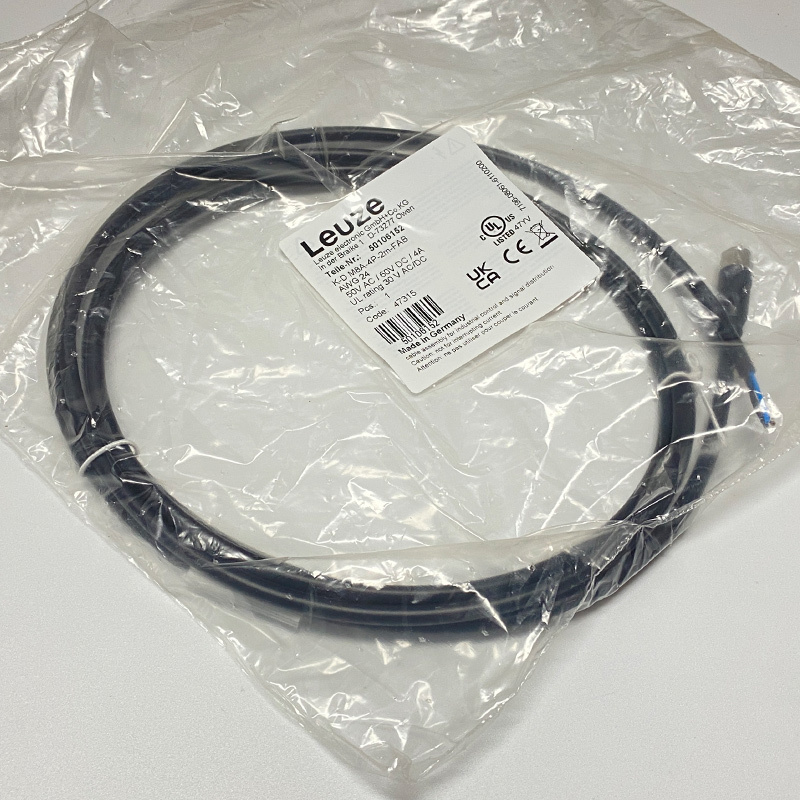

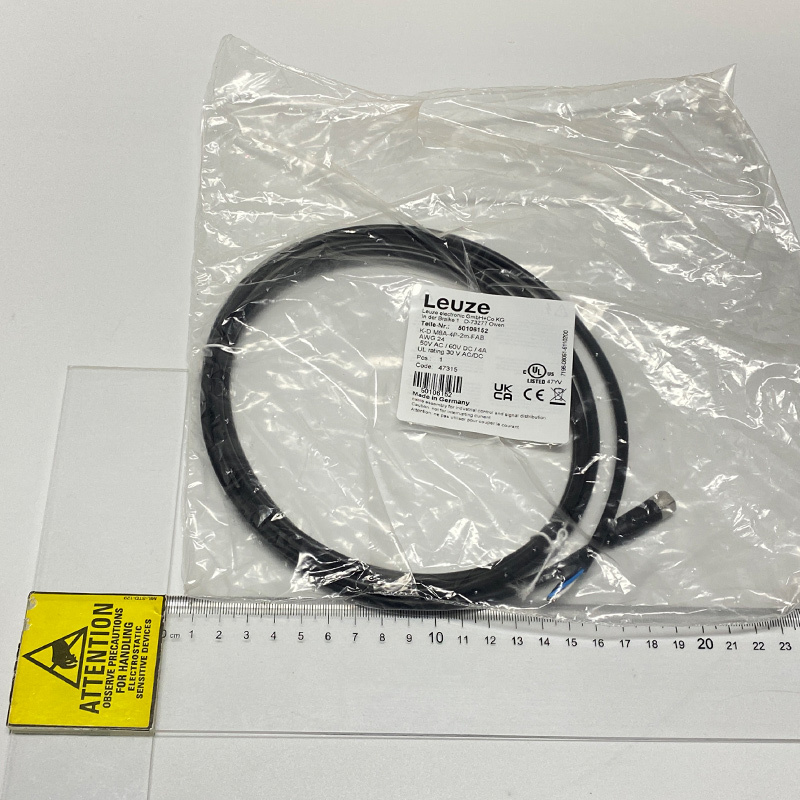

In Stock ! Leuze connection cable K-D M8A-4P-2M-FAB

Part no.: 50106152

Features：

Number of conductors：4 Piece(s)

Sheathing color：Black

Shielded：No

Silicone-free：Yes

Cable length：2,000 mm

Sheathing material：PVC

Wire insulation：PVC

Suitability for drag chains：No

Properties of the outer sheathing：Free of CFC, cadmium, silicone and lead, easily machine-processable

Resistance of the outer sheathing：Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1

Net weight：65 g

Bending radius, flexible laying, min.：Min. 10 x cable diameter

Bending radius, stationary laying, min.：Min. 5 x cable diameter

Ambient temperature, operation, flexible use：-5 ... 80 °C

Ambient temperature, operation, stationary use：-30 ... 80 °C

Degree of protection：IP 65;IP 67;IP 69K

Cables and connectors

Sensors are only as good as the options for integrating them in your controls. For this reason, we offer you an extensive selection of accessories, including everything from the cables, to the connectors to the optional adapters. You can easily find the right parts for your application.

Connection cables

• M8 and M12 connection cables for the connection of sensors in industrial environments

• 3-, 4-, 5-, 8-, 12-, 17-pin cables

• Cables made of PUR, PVC, TPE and connectors with or without LED, angled or straight – high flexibility for many applications

Interconnection cables

• M8 and M12 connection cables for the connection of sensors in industrial environments

• 3-, 4-, 5-, 8-, 12-, 17-pin cables

• Cables made of PUR, PVC, TPE and connectors with or without LED, angled or straight – high flexibility for many applications

Y-distribution cables

• For bundling signals

• Configuration cables

User-configurable connectors

• Afford maximum flexibility when planning the machine

• Versions in metal and plastic

Adapters

• Optimized to reduce wiring

• Several wiring variants available

• Group together signals on one port on our IO-Link master
