| Brand | LEUZE |
| Date Code | 24+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

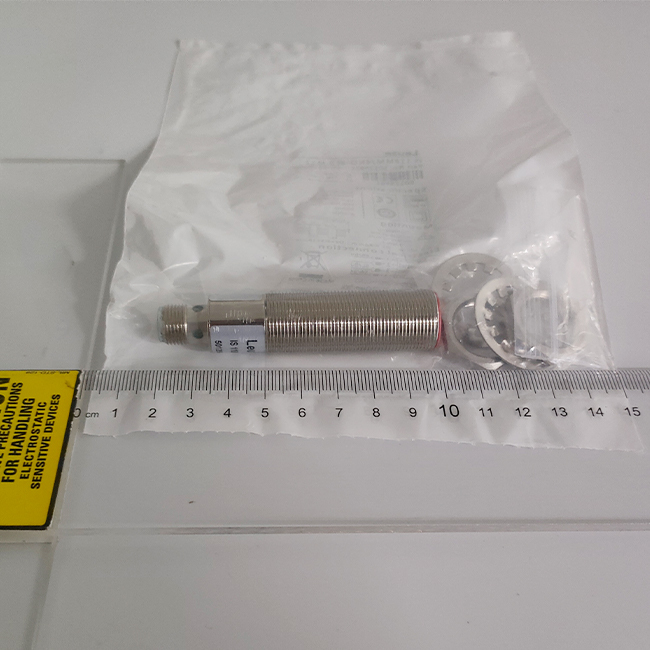

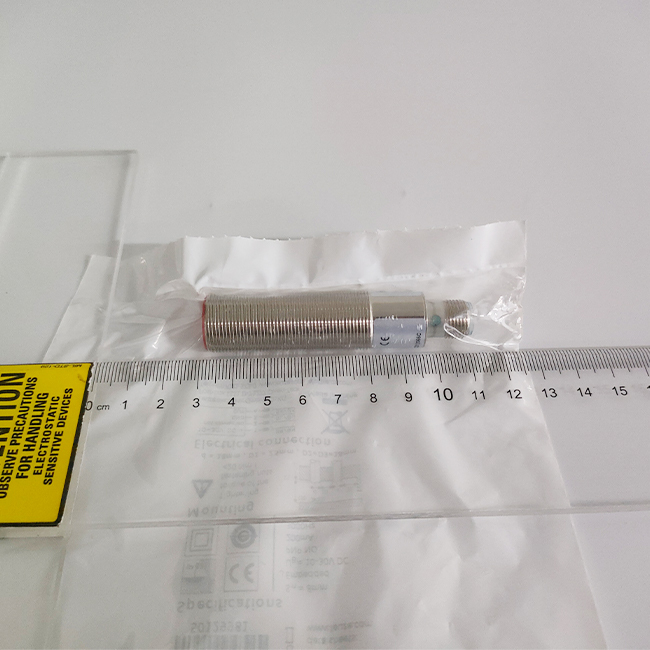

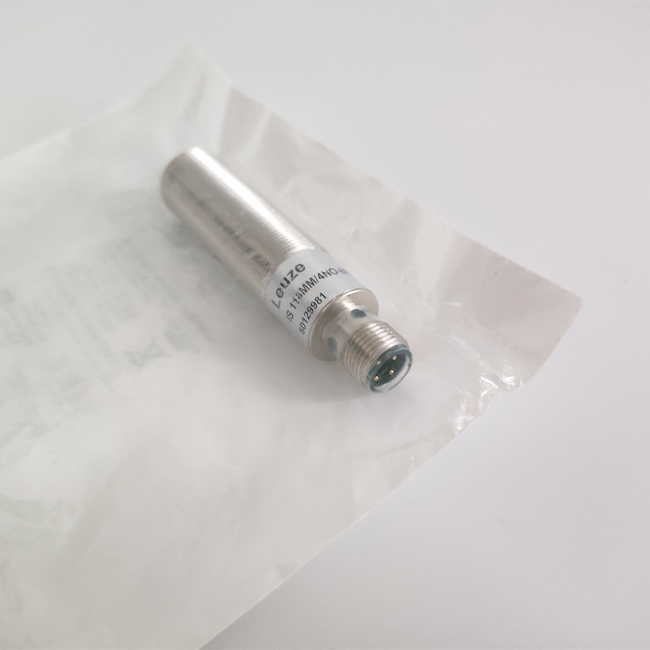

Part no.: 50129981

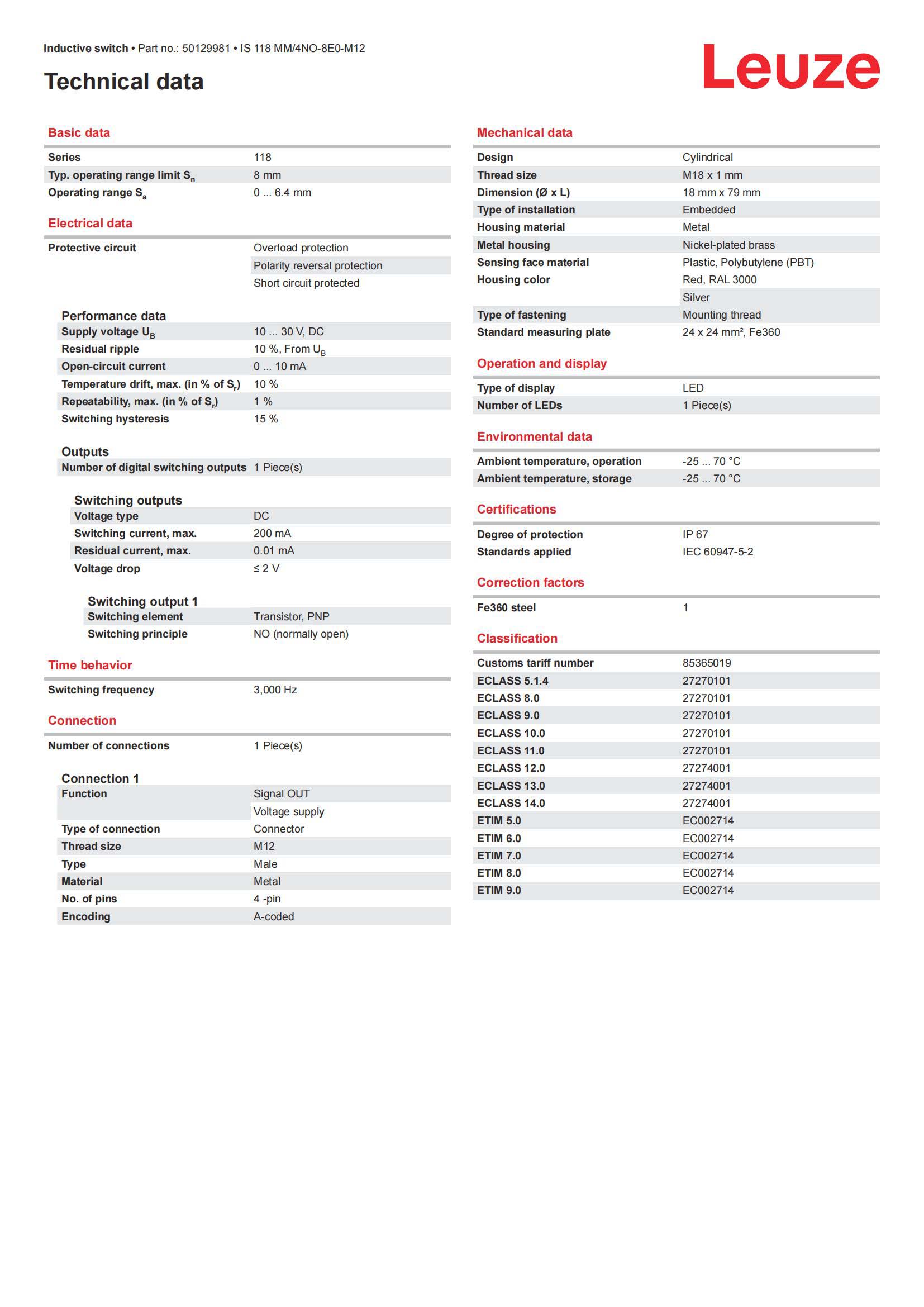

Features：
Supply voltage UB：10 ... 30 V, DC
Residual ripple：10 %, From UB
Open-circuit current：0 ... 10 mA
Temperature drift, max. (in % of Sr)：10 %
Repeatability, max. (in % of Sr)：1 %
Switching hysteresis：15 %
Voltage type：DC
Switching current, max.：200 mA
Residual current, max.：0.01 mA
Voltage drop：≤ 2 V
Switching frequency：3,000 Hz
Design：Cylindrical

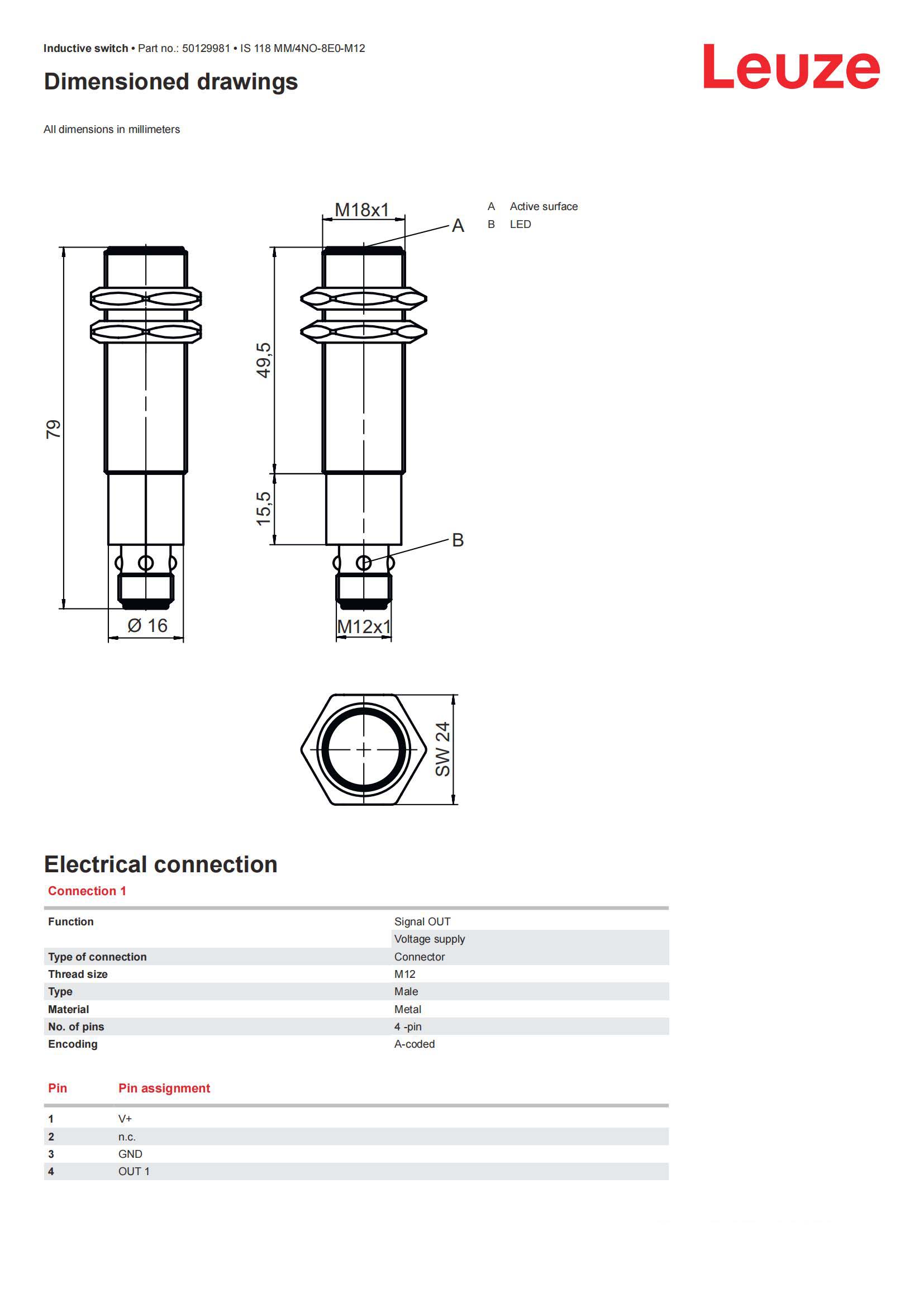

Dimension (Ø x L)：18 mm x 79 mm
Thread size：M18 x 1 mm
Type of installation：Embedded
Housing material：Metal
Metal housing：Nickel-plated brass
Sensing face material：Plastic, Polybutylene (PBT)
Net weight：60 g
Housing color：Red, RAL 3000; Silver

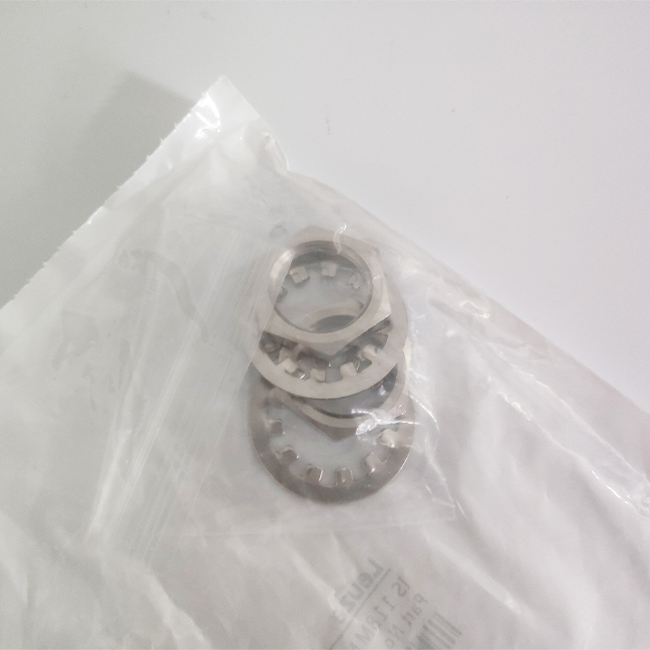

Type of fastening：Mounting thread
Standard measuring plate：24 x 24 mm², Fe360
Ambient temperature, operation：-25 ... 70 °C
Ambient temperature, storage：-25 ... 70 °C
Degree of protection：IP 67
Inductive switches
Inductive sensors are the industrial standard for the contactless detection of metallic objects.
The Leuze product range includes a wide variety of standard and special sensors that are available in many different designs and have already been tried and tested millions of times by our customers.
In particular our extremely robust all stainless steel sensors, sensors with extended switching distance or miniature sensors for extremely constrained spaces have again and again proven to be ideal for challenging applications.
Basic sensors
Extensive portfolio with cubic and cylindrical designs
Short and long designs
Sensors with basic performance
Standard sensors
Popular standard portfolio for a wide range of applications in all industries
Outstanding price-performance ratio
Up to 2x switching distance
Cylindric designs with external thread
UL-certified
Advanced sensors
Extensive portfolio with cubic and cylindrical designs
Short and normal designs
Sensors with high-end performance and UL certification
Up to 3x switching distance and antivalent sensors available
Special sensors
Sensors with an extra level of performance
All stainless steel sensors for extreme requirements
10-320V AC/DC 2-wire sensors
Similar Models:
ISS 118MM/4NC-8E0-M12 50144726 ISS 118MM/4NO-16N-M12 50136057 ISS 118MM/2NO-16N-M12 50136056 ISS 118MM/4NO-16N 50136055 ISS 118MM/2NO-16N 50136054 ISS 118MM/4NO-8E0-M12 50136013 ISS 118MM/2NO-8E0-M12 50136012 ISS 118MM/4NO-8E0 50136011 ISS 118MM/2NO-8E0 50136010 IS 118MM/4NC-16N-M12 50129987 IS 118 MM/4NO-16N-M12 50129985 IS 118MM/2NC-16N-M12 50129984 IS 118 MM/2NO-16N-M12 50129983 IS 118 MM/4NC-8E0-M12 50129982 IS 118 MM/4NO-8E0-M12 50129981 IS 118 MM/2NC-8E0-M12 50129980 IS 118 MM/2NO-8E0-M12 50129979 IS 118MM/4NC-16N 50129978 IS 118MM/4NO-16N 50129977 IS 118MM/2NC-16N 50129961 IS 118MM/2NO-16N 50129960 IS 118 MM/4NC-8E0 50129857 IS 118 MM/4NO-8E0 50129856 IS 118 MM/2NC-8E0 50129854 IS 118 MM/2NO-8E0 50129843
