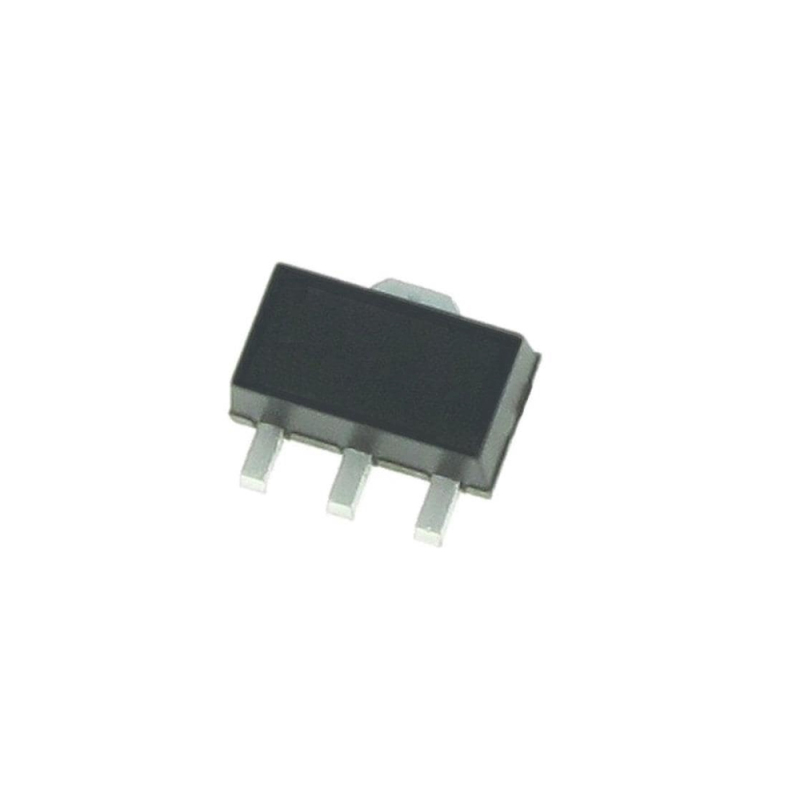

In Stock ! Infineon Transistors BSS225H6327FTSA1

Name: In Stock ! Infineon Transistors BSS225H6327FTSA1
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.4 USD
Availability: InStock

Brand：Infineon Technologies
Date Code：2318
Packing：Reel
Package：SOT-89-3
Minimum Packing：1000pcs

$0.40

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Features：
MOSFETs N-Ch 600V 90mA SOT-89-3

Product Attribute	Attribute Value
Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	90 mA
Rds On - Drain-Source Resistance:	28 Ohms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	1.9 V
Qg - Gate Charge:	5.8 nC
Minimum Operating Temperature:	- 55°C
Maximum Operating Temperature:	+ 150°C
Pd - Power Dissipation:	1 W
Typical Turn-Off Delay Time:	62 ns
Typical Turn-On Delay Time:	14 ns
Width:	2.5 mm
Unit Weight:	0.004603 oz
