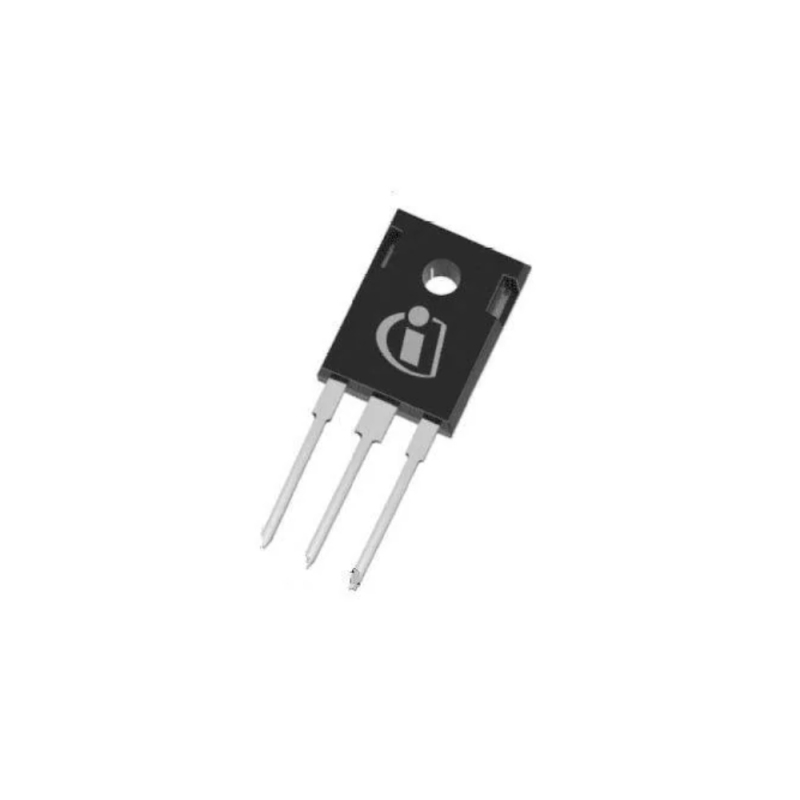

In Stock ! Infineon Transistors IKW75N65EL5XKSA1

Brand:Infineon Technologies
Date Code:2232
Packing:Tube
Package:TO-247-3
Minimum Packing:240pcs
$0.00 $3.60
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • Infineon Transistors IKW75N65EL5XKSA1
  • Infineon Transistors IKW75N65EL5XKSA1
1/1
  • Infineon Transistors IKW75N65EL5XKSA1
  • Description
Features:
IGBTs 650V IGBT Trenchstop 5

Product Attribute

Attribute Value

Collector- Emitter Voltage VCEO Max:

650 V

Collector-Emitter Saturation Voltage:

1.1 V

Maximum Gate Emitter Voltage:

- 20 V, 20 V

Continuous Collector Current at 25 C:

80 A

Pd - Power Dissipation:

536 W

Minimum Operating Temperature:

- 40°C

Maximum Operating Temperature:

+ 175°C

Gate-Emitter Leakage Current:

100 nA

Unit Weight:

0.213478 oz
