Product Attribute |
Attribute Value |
|

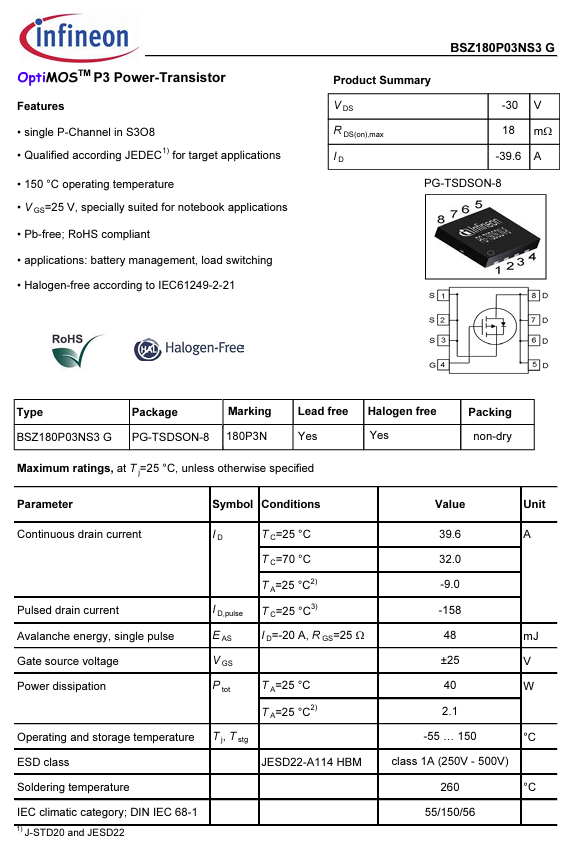

Vds - Drain-Source Breakdown Voltage: |
30 V |
|
Id - Continuous Drain Current: |
39.6 A |
|

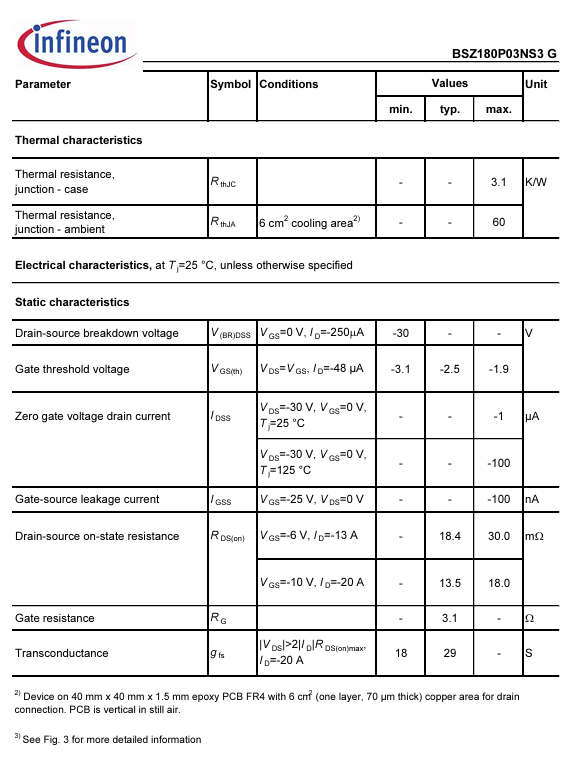

Rds On - Drain-Source Resistance: |
13.5 mOhms |
|
Vgs - Gate-Source Voltage: |
- 25 V, + 25 V |
|
Vgs th - Gate-Source Threshold Voltage: |
3.1 V |
|
Qg - Gate Charge: |
30 nC |
|
Minimum Operating Temperature: |
- 55°C |
|
Maximum Operating Temperature: |
+ 150°C |
|
Pd - Power Dissipation: |
40 W |
|

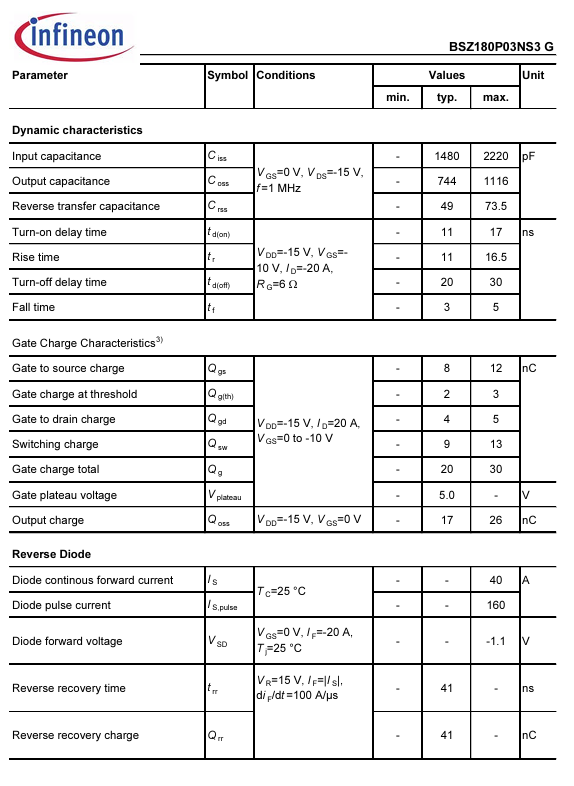

Fall Time: |
3 ns |
|
Forward Transconductance - Min: |
18 S |
|
Height: |
1.1 mm |
|
Length: |
3.3 mm |
|
Typical Turn-Off Delay Time: |
20 ns |
|
Typical Turn-On Delay Time: |
11 ns |
|
Width: |
3.3 mm |
|
Unit Weight: |
0.001367 oz |
