LCD Drivers Low-Noise, 4 1/2 Digit, Single-Chip ADC
Features：
±19,999 Count Resolution
10pA Max Input Bias Current (MAX7129)
3µV Peak-to-Peak Noise (ICL7129A)
Onboard Multiplexed LCD Display Driver 4-1/2 Digits, 4 Decimal Points, 3 Annunciators
Instant Continuity Detector
Low Battery Detector and Indicator
Overrange/Underrange Outputs
Precise 10:1 Range Select
10µV Resolution
Significantly Improved ESD Protection
Monolithic, Low Power CMOS Design
Eliminates Need for Compensation Capacitor

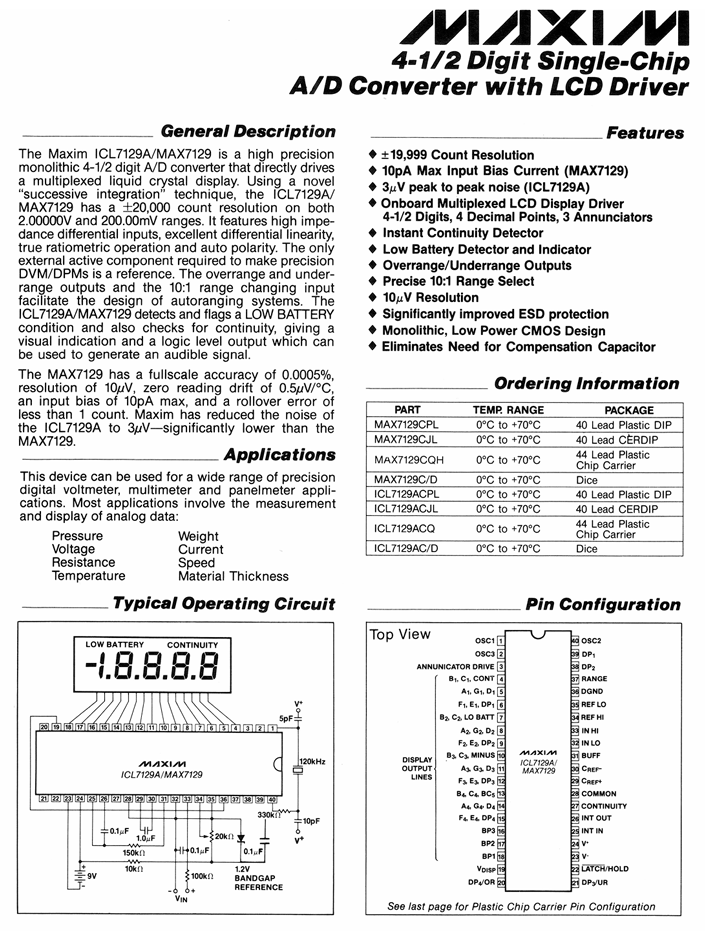

The Maxim ICL7129A/MAX7129 is a high precision monolithic 4-1/2 digit A/D converter that directly drives a multiplexed liquid crystal display. Using a novel "successive integration" technique, the ICL7129A/MAX7129 has a ±20,000 count resolution on both 2.00000V and 200.00mV ranges. It features high impedance differential inputs, excellent differential linearity, true ratiometric operation and auto polarity. The only external active component required to make precision DVM/DPMs is a reference. The overrange and underrange outputs and the 10:1 range changing input facilitate the design of autoranging systems. The ICL7129A/MAX7129 detects and flags a LOW BATTERY condition and also checks for continuity, giving a visual indication and a logic level output which can be used to generate an audible signal.

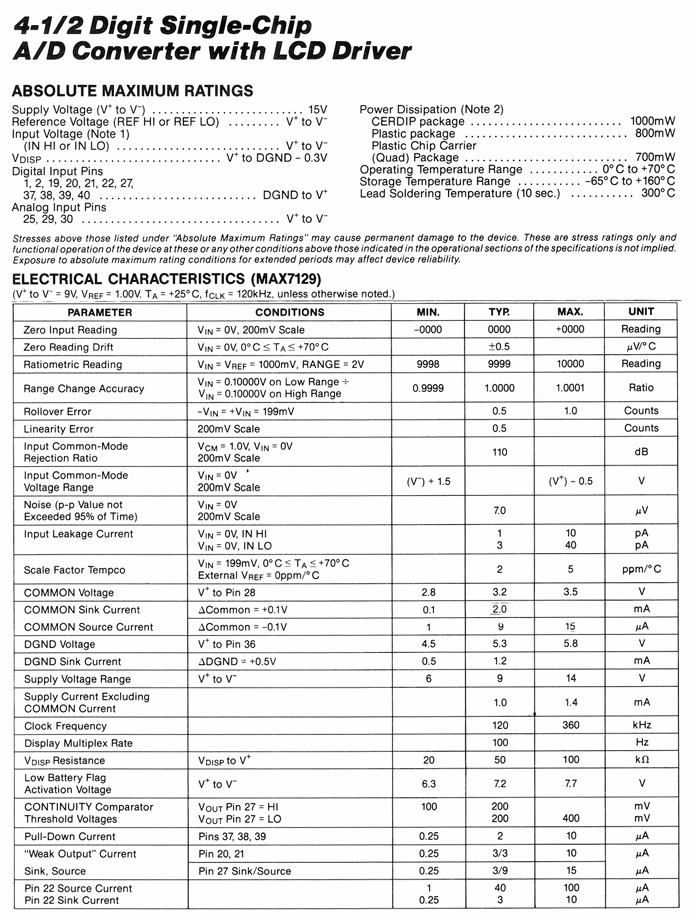

The MAX7129 has a fullscale accuracy of 0.0005%, resolution of 10µV, zero reading drift of 0.5µV/°C, an input bias of 10pA max, and a rollover error of less than 1 count. Maxim has reduced the noise of the ICL7129A to 3µV—significantly lower than the MAX7129.
ICL7129ACPL+2 Datasheet
