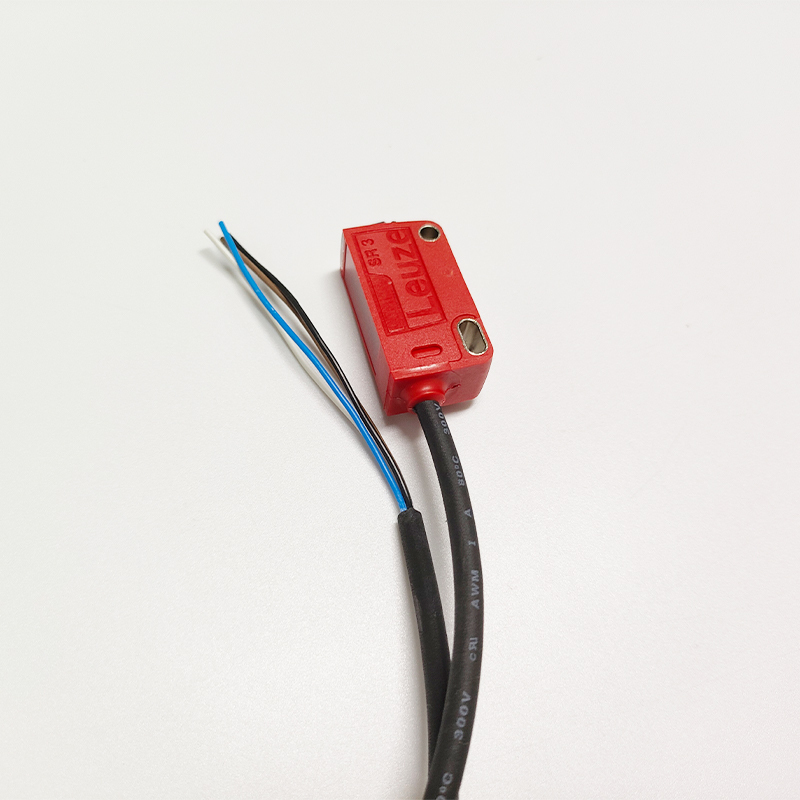

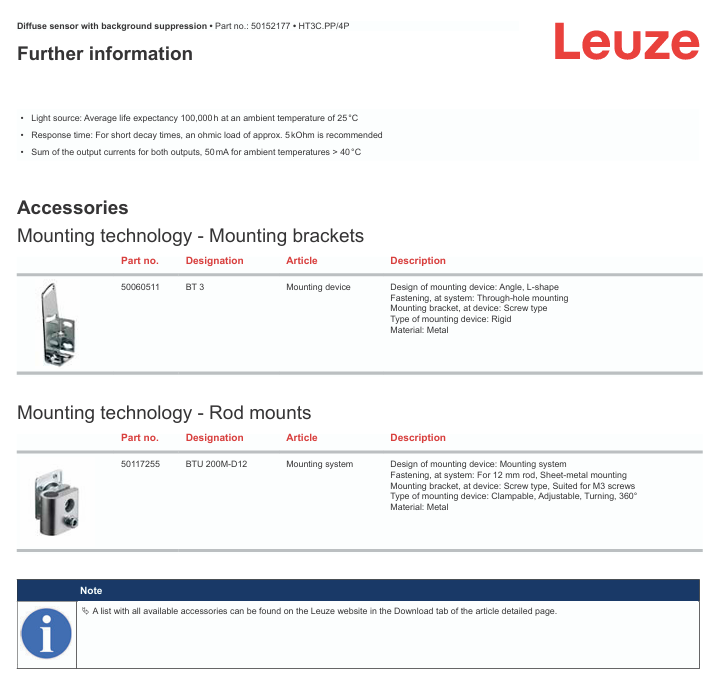

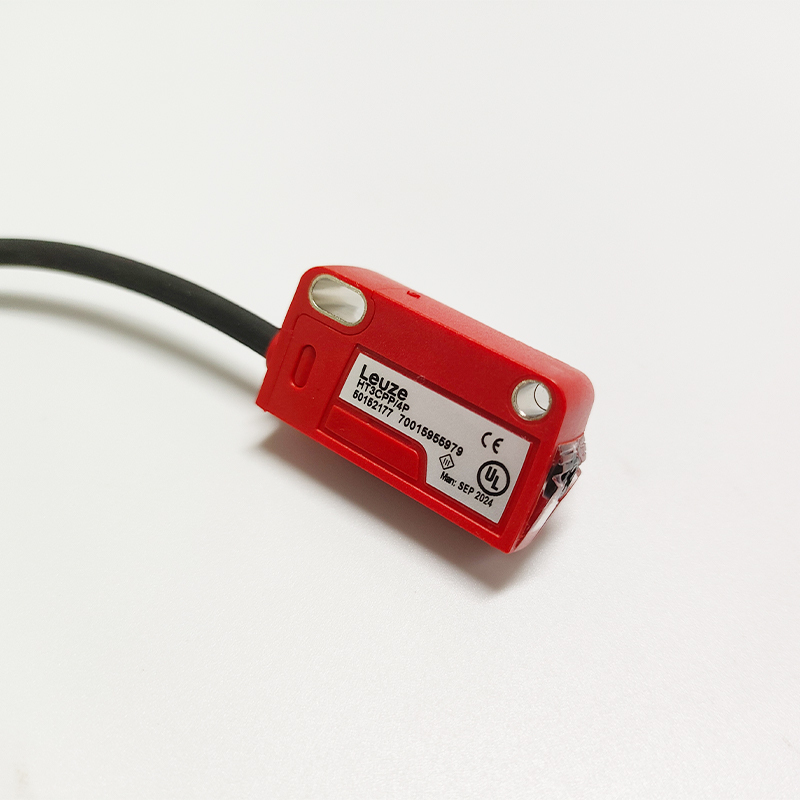

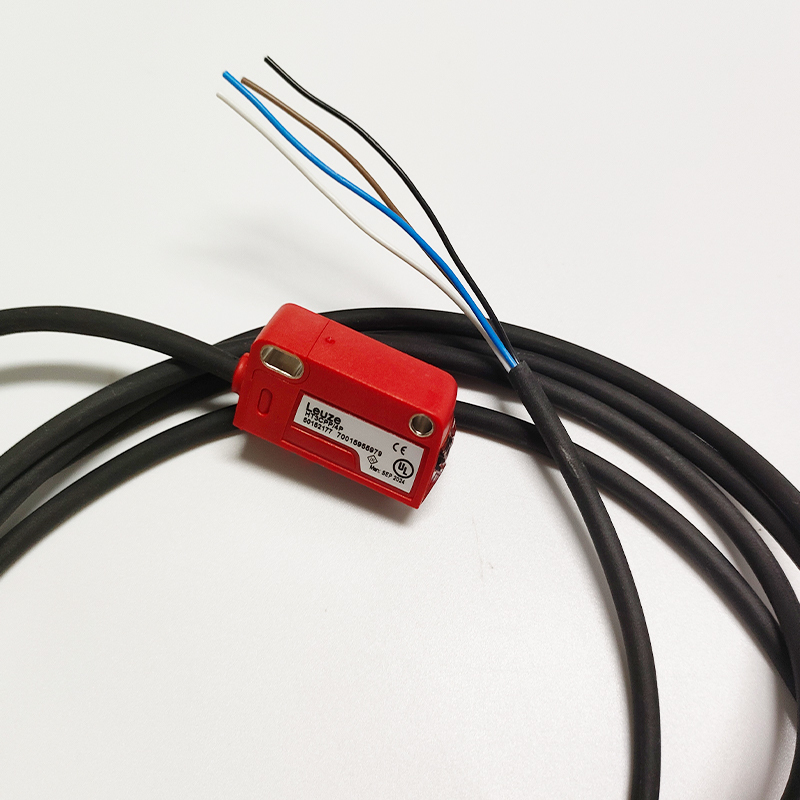

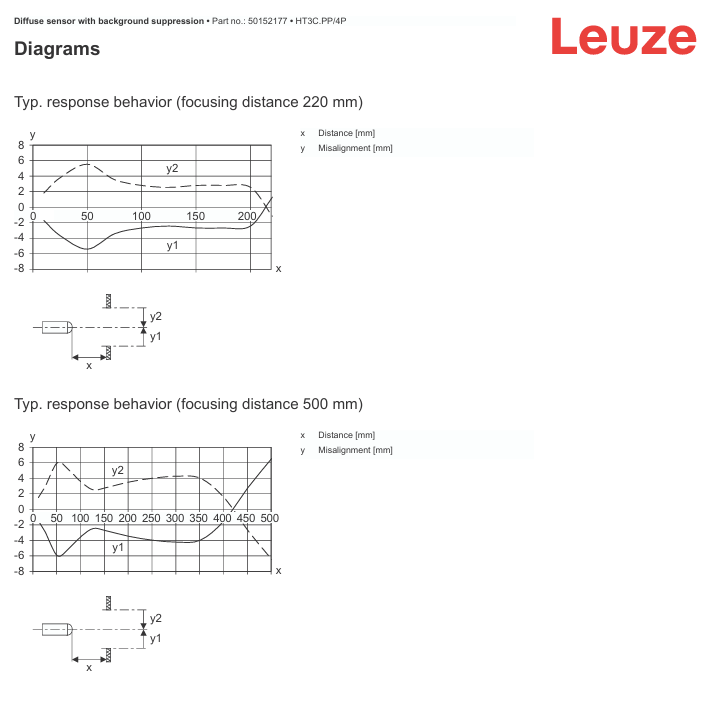

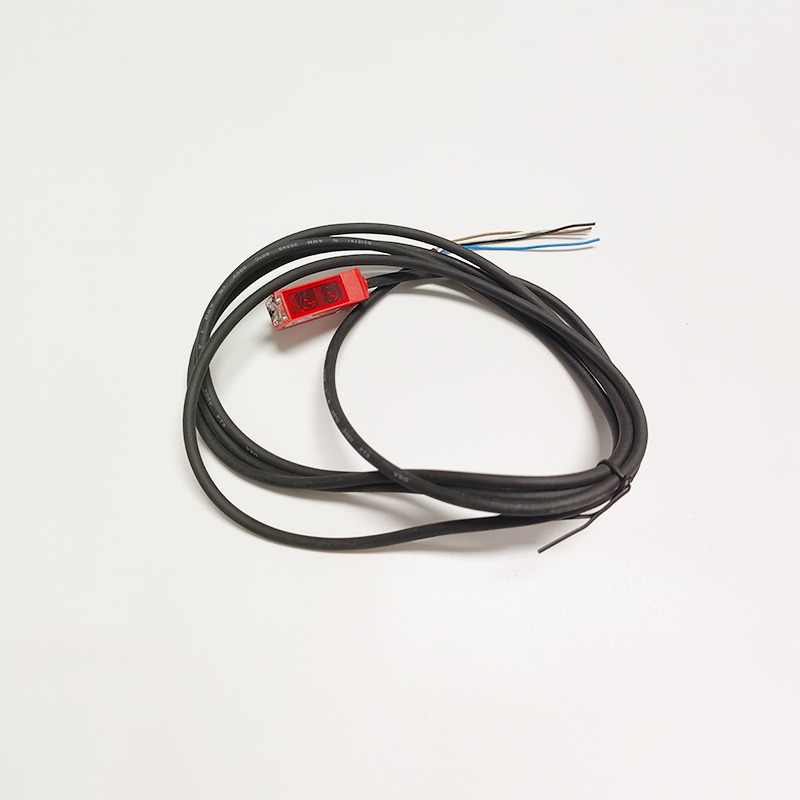

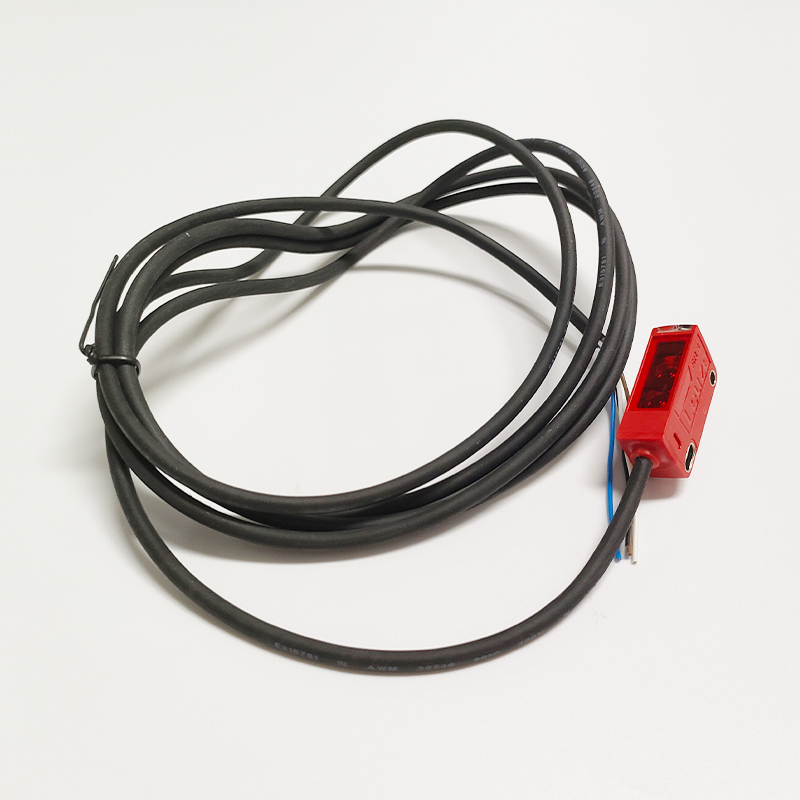

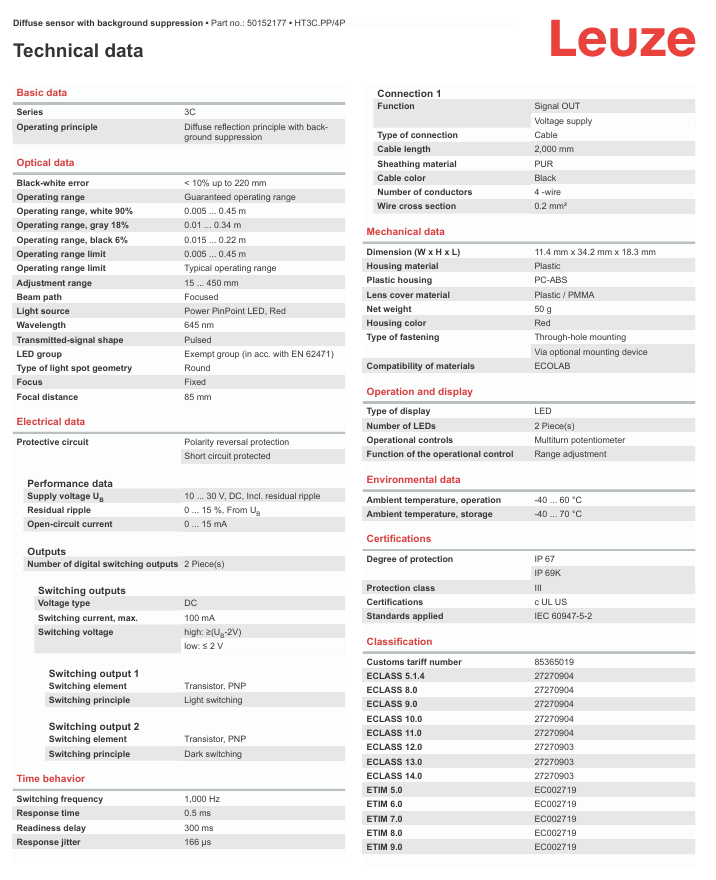

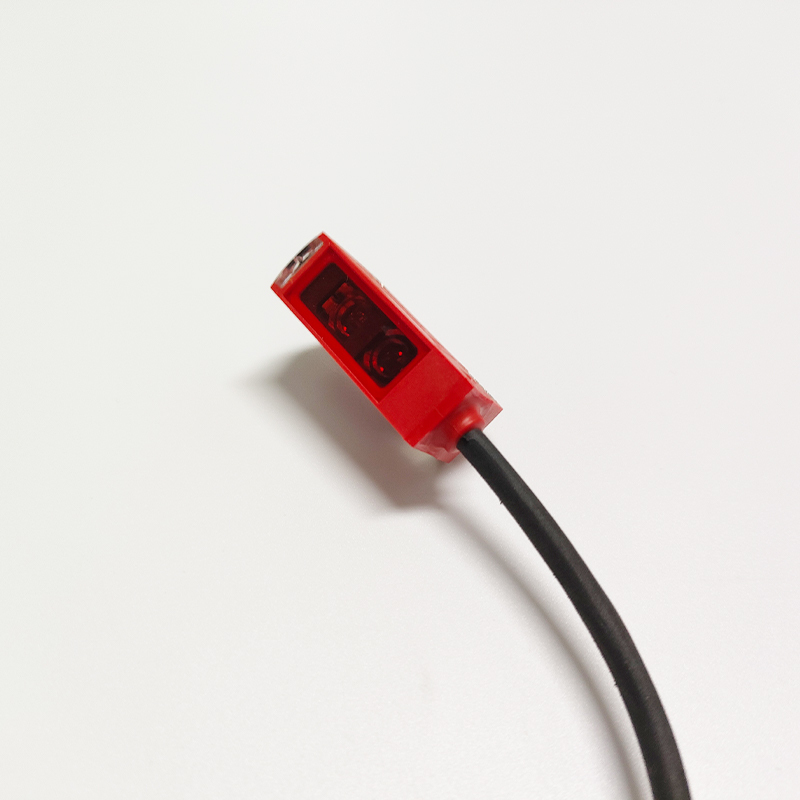

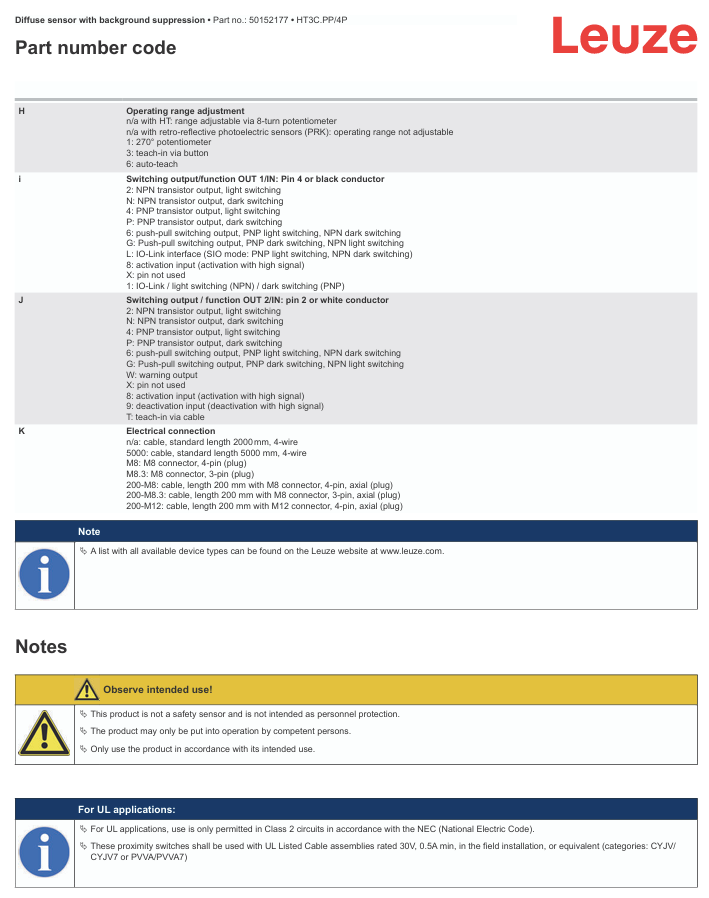

Part no.: 50152177
Features：

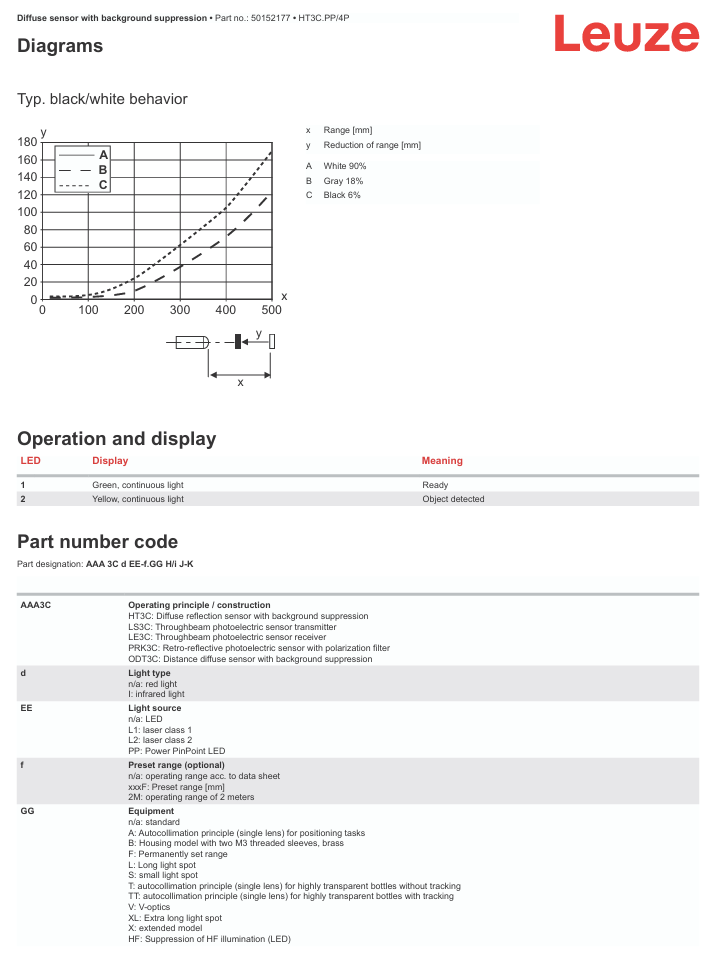

Black-white error：< 10% up to 220 mm
Operating range：Guaranteed operating range
Operating range, white 90%：0.005 ... 0.45 m
Operating range, gray 18%：0.01 ... 0.34 m
Operating range, black 6%：0.015 ... 0.22 m
Operating range limit：0.005 ... 0.45 m
Operating range limit：Typical operating range
Adjustment range：15 ... 450 mm
Beam path：Focused
Light source：Power PinPoint LED, Red
Wavelength：645 nm
LED group：Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance]：4.5 mm [100 mm]
Type of light spot geometry：Round
Focus：Fixed
Focal distance：85 mm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：1,000 Hz
Response time：0.5 ms
Readiness delay：300 ms

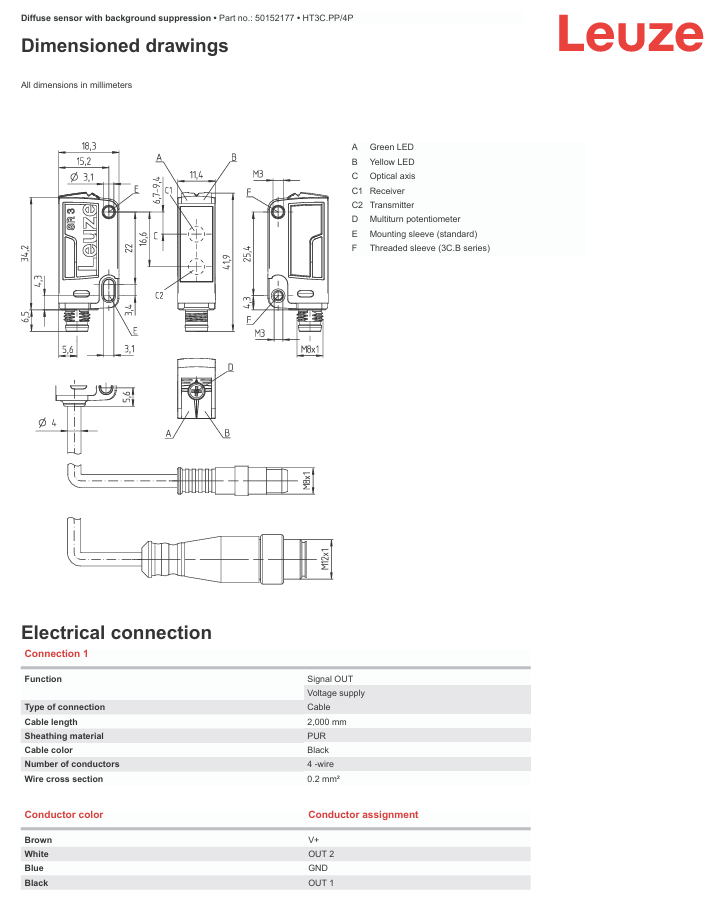

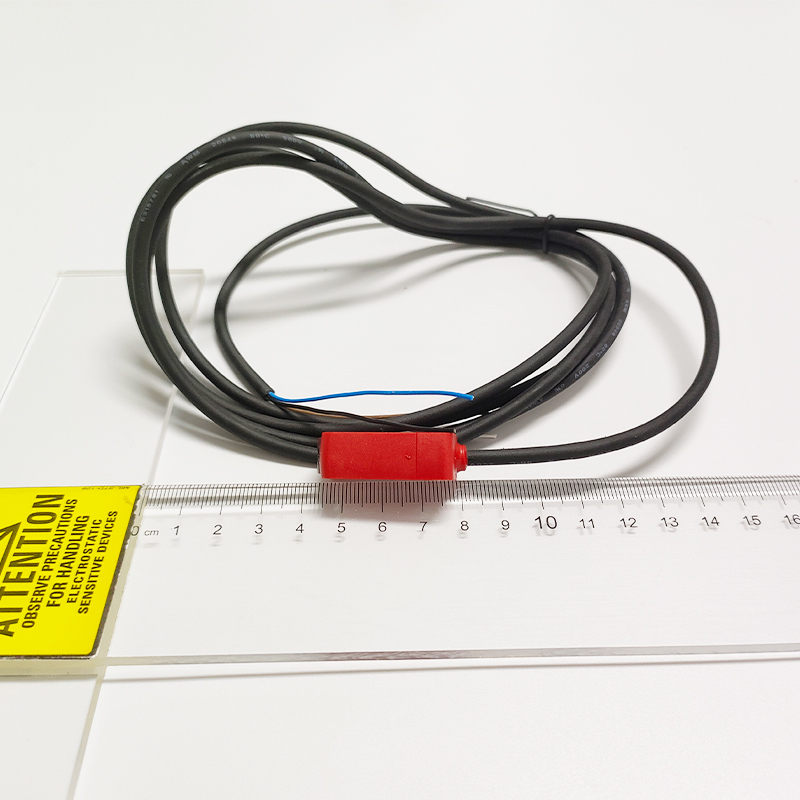

Dimension (W x H x L)：11.4 mm x 34.2 mm x 18.3 mm
Housing material：Plastic
Plastic housing：PC-ABS
Lens cover material：Plastic / PMMA
Net weight：50 g
Housing color：Red
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
Protection class：III
Diffuse sensors with background suppression
Reliable detection of objects while simultaneously suppressing the background, operating ranges up to 3 m, intuitive adjustment of the operating range by means of spindle and teach button.
Standard models (LED and laser)
Red-light background sensors for simple and fast alignment
Infrared diffuse sensors also detect objects with different color with the slightest offset
Laser diffuse sensors for the detection of the smallest objects or with beam guidance though an opening
Extra large and small light spots
Diffuse red light sensors with small light spot detect small objects in situations where lasers cannot be used
Background sensors with long light spot reliably bridge object openings
A reliable solution for area monitoring as well
Optimized for high-gloss and polished objects
Sensors with a V-configuration detect even transparent objects
Are equipped with foreground and background suppression
Sensors with a V-configuration and long light spot are also suitable for the detection of bottles
New laser distance diffuse sensor with TOF technology
Compact diffuse sensor for detection and measurement tasks with high operating ranges
The new ODT3CL1-2M diffuse sensor has been developed for applications where the presence of objects is to be detected over long distances and measurement values are to be output via IO-Link. The laser sensor with background suppression works with TOF (time of flight) technology and achieves an operating range of two meters.
The switching sensor with measurement value output has two independent switching points and is very versatile: In intralogistics, it can be integrated in shuttles for different applications and thus ensures reliable positioning, presence testing and compartment occupation checks. In the case of AGVs (automated guided vehicles), the diffuse sensor monitors e.g. the position of the transport material. Compact diffuse sensors with high operating ranges are also used in automobile production, e.g. to control robot grippers or for quality control.
The 3C series includes compact photoelectric sensors and diffuse sensors with high operating ranges and large function reserves. With the new ODT3CL1-2M laser diffuse sensor we have extended the operating range of our distance sensors. The ODT 3C diffuse sensor with triangulation principle, already included in the 3C series, achieves operating ranges up to 150 mm and is suitable for packaging processes, for example.
Advantages for you
2-in-1 sensor: The detection and output of measurement values using just one sensor saves time and money during procurement, installation, commissioning and operation
TOF technology: High operating range up to 2 meters makes applications over large distances possible
Small, visible light spot thanks to laser light source
Compact housing: Use in applications with limited installation space
Integrated object test: Mode with brightly flashing light spot to check the function reserve
Degree of protection IP69K: Allows use in harsh conditions
Output of process data via IO-Link: Extensive diagnostic data from the device, e.g. temperature value, signal quality and warning
