| Brand | SICK |
| Date Code | 2502 |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

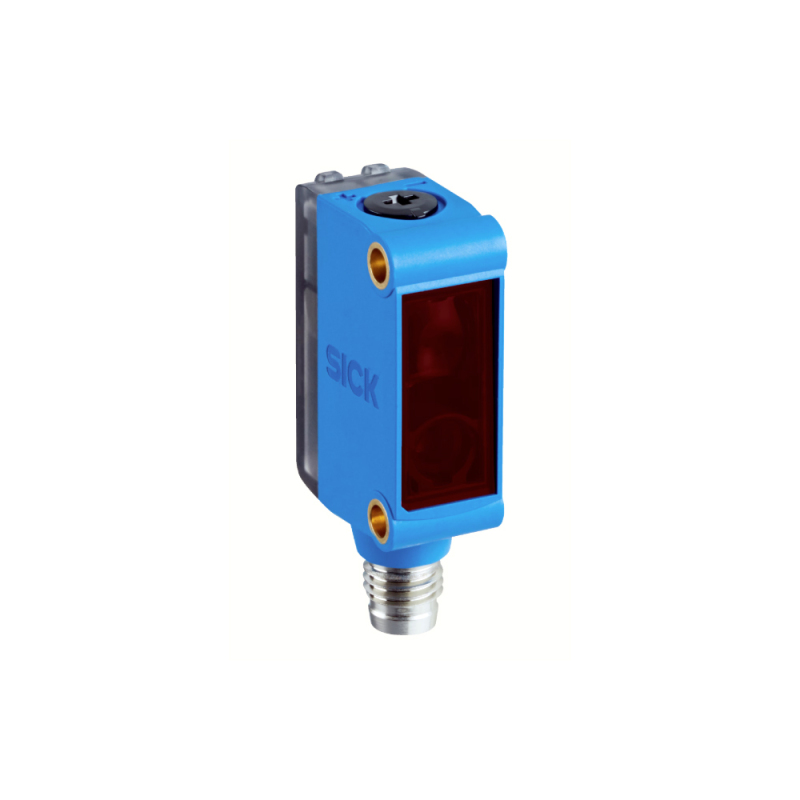

SICK Photoelectric sensors GTB6-P4212
Part no.: 1052442

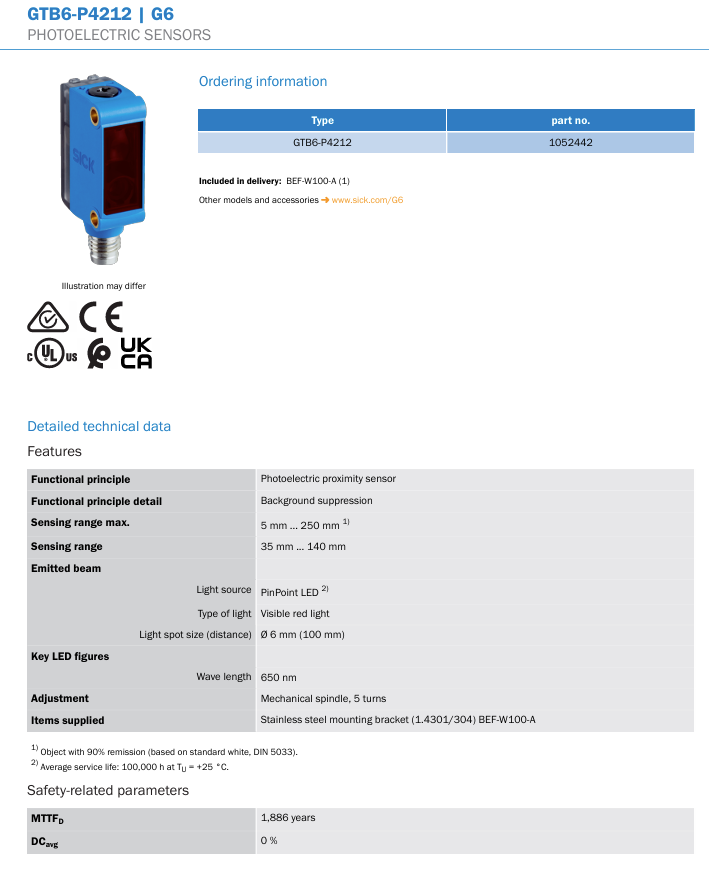

Features：
Functional principle：Photoelectric proximity sensor
Functional principle detail：Background suppression

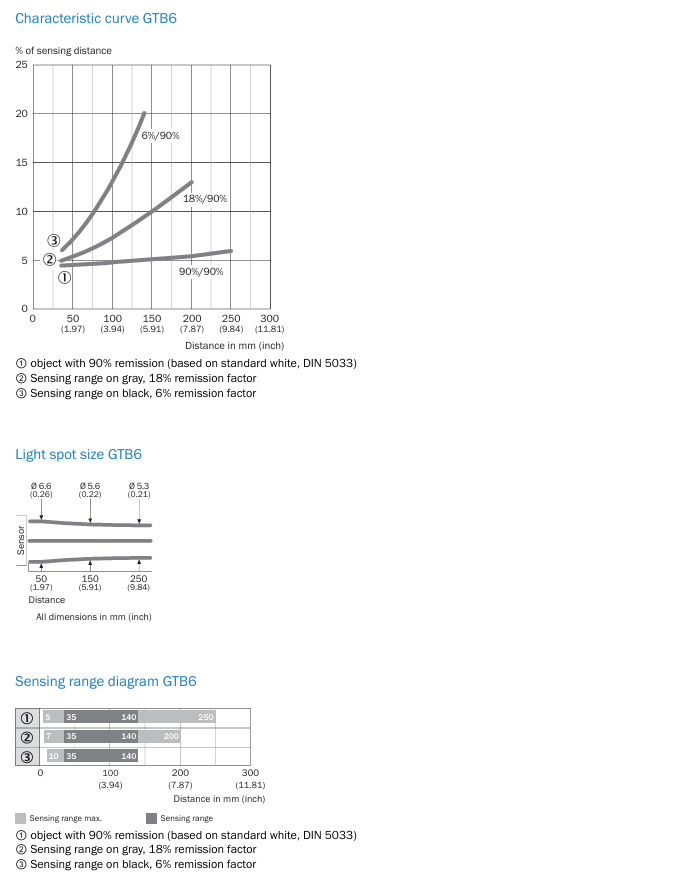

Sensing range max.：5 mm ... 250 mm
Sensing range：35 mm ... 140 mm
Emitted beam：
Light source：PinPoint LED
Type of light：Visible red light
Light spot size (distance)：Ø 6 mm (100 mm)
Key LED figures：
Wave length：650 nm

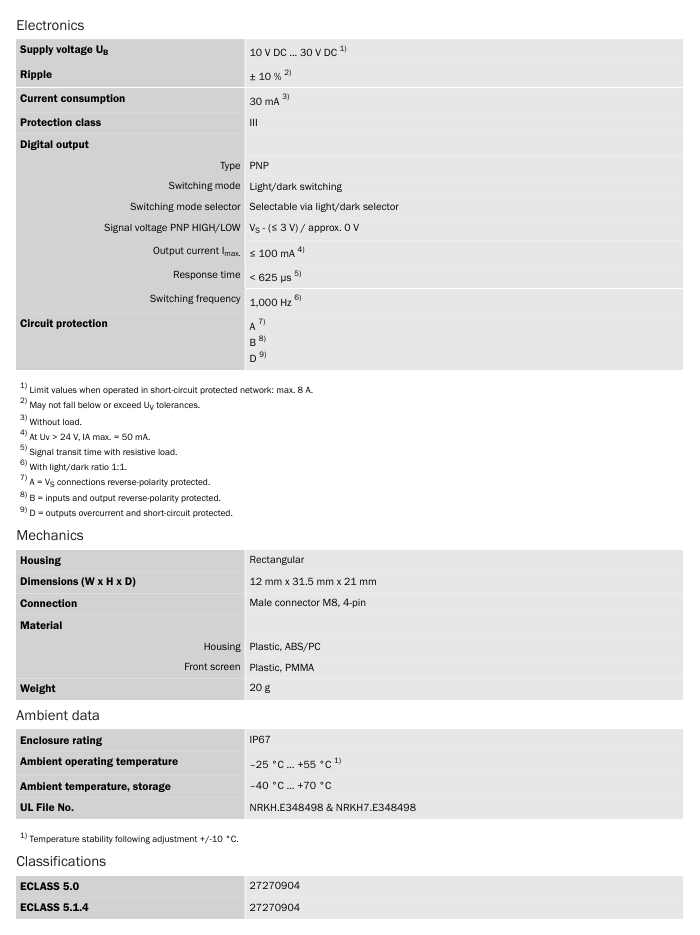

Supply voltage UB：10 V DC ... 30 V DC
Ripple：± 10 %
Current consumption：30 mA
Protection class：III
Digital output：
Type：PNP
Switching mode：Light/dark switching
Switching mode selector：Selectable via light/dark selector
Signal voltage PNP HIGH/LOW：VS - (≤ 3 V) / approx. 0 V
Output current Imax.：≤ 100 mA
Response time：< 625 µs
Switching frequency：1,000 Hz

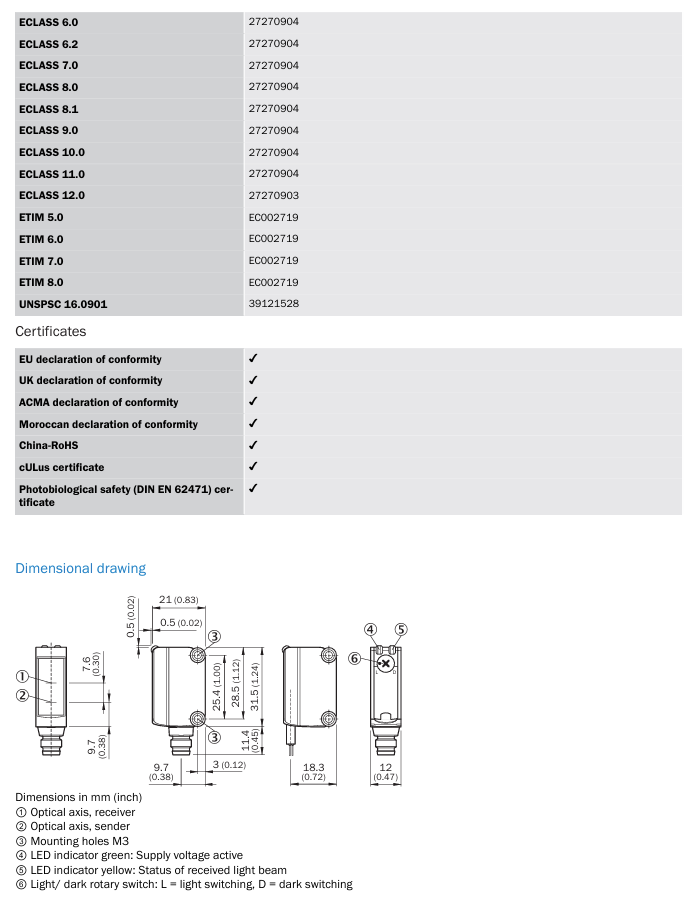

Dimensions (W x H x D)：12 mm x 31.5 mm x 21 mm
Weight：20 g
Enclosure rating：IP67
Ambient operating temperature：–25 °C ... +55 °C
Ambient temperature, storage：–40 °C ... +70 °C
Photoelectric sensors
G6Way above the standard – the economic way to business class
The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With PinPoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.
Benefits
PinPoint LEDs (with visible red light and infrared light) or variants with a laser light spot enable objects to be detected reliably and are therefore suitable for a broad range of applications
Superior optical performance and robustness thanks to the ASIC from SICK
Quick and easy mounting and high durability thanks to the metal inserts with M3 thread

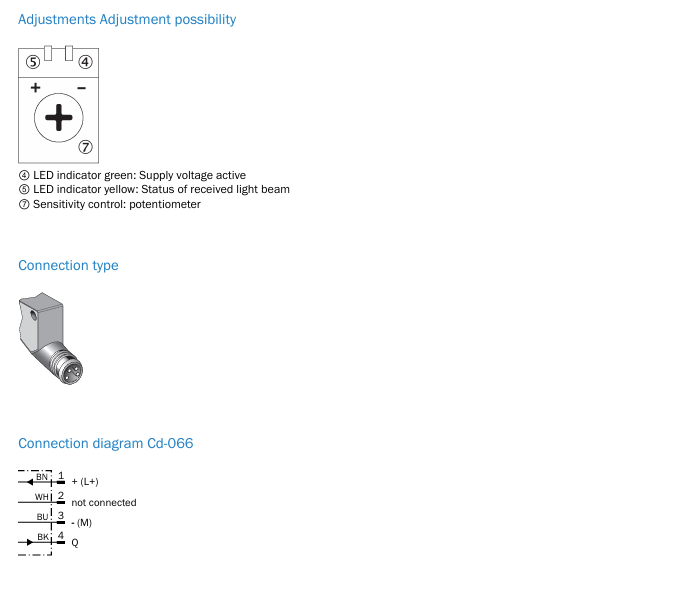

Easy installation and adjustment with user friendly potentiometer and highly visible indicator LEDs
Variants with a stainless steel housing and IP69K enclosure rating ensure a long sensor service life in demanding washdown applications
PinPoint LED and class 1 laser variants
SICK ASIC, the result of decades of experience with photoelectric sensors
Photoelectric proximity sensors with background suppression, energetic photoelectric proximity sensors, and through-beam photoelectric sensors
ABS plastic housing and V4A stainless-steel 1.4404 (316L) housing
Enclosure ratings IP67 and IP69K
