| Brand | SICK |
| Date Code | 21+ |
| Packing | Box |
| Package | SWITCH |
| Minimum Packing | 1pcs |

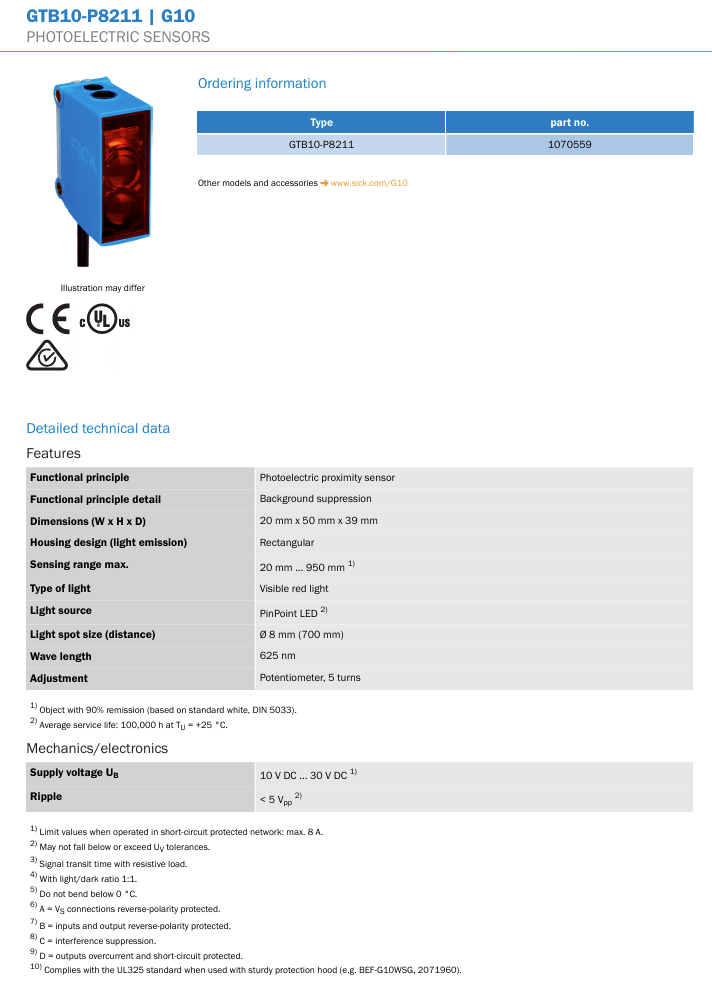

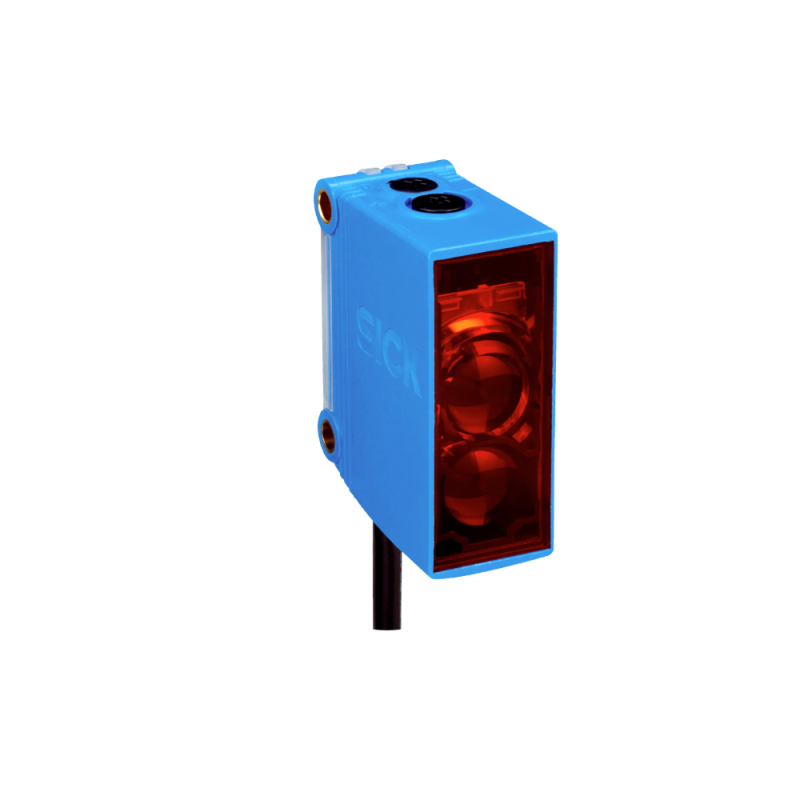

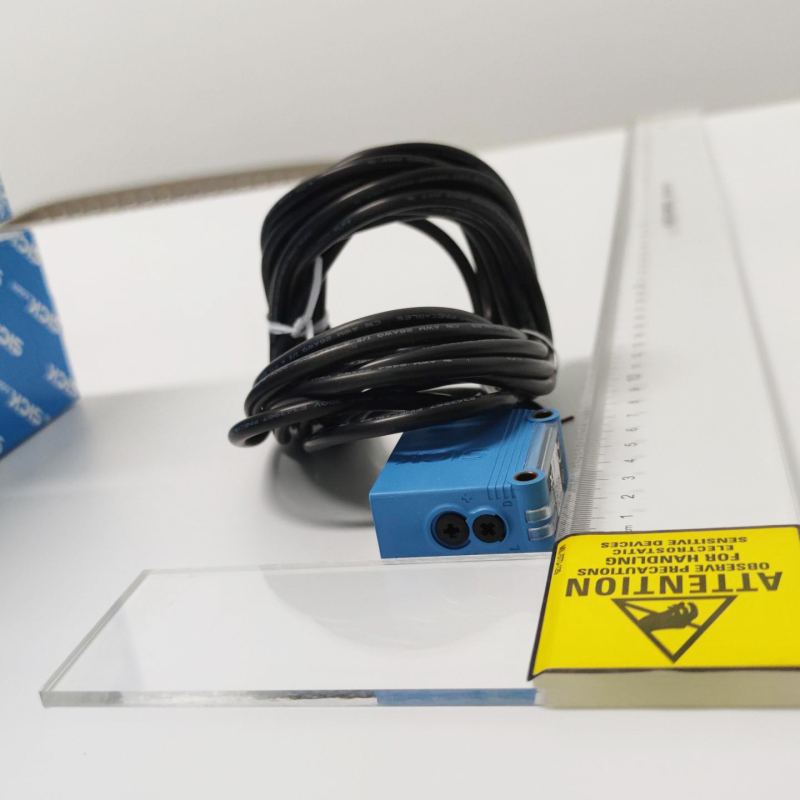

Part no.: 1070559
Features：
Functional principle：Photoelectric proximity sensor
Functional principle detail：Background suppression

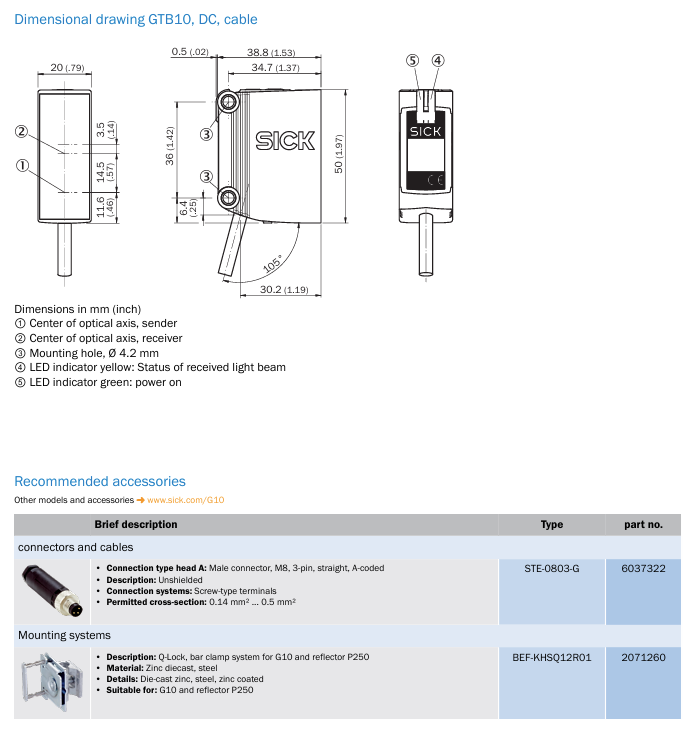

Dimensions (W x H x D)：20 mm x 50 mm x 39 mm
Housing design (light emission)：Rectangular

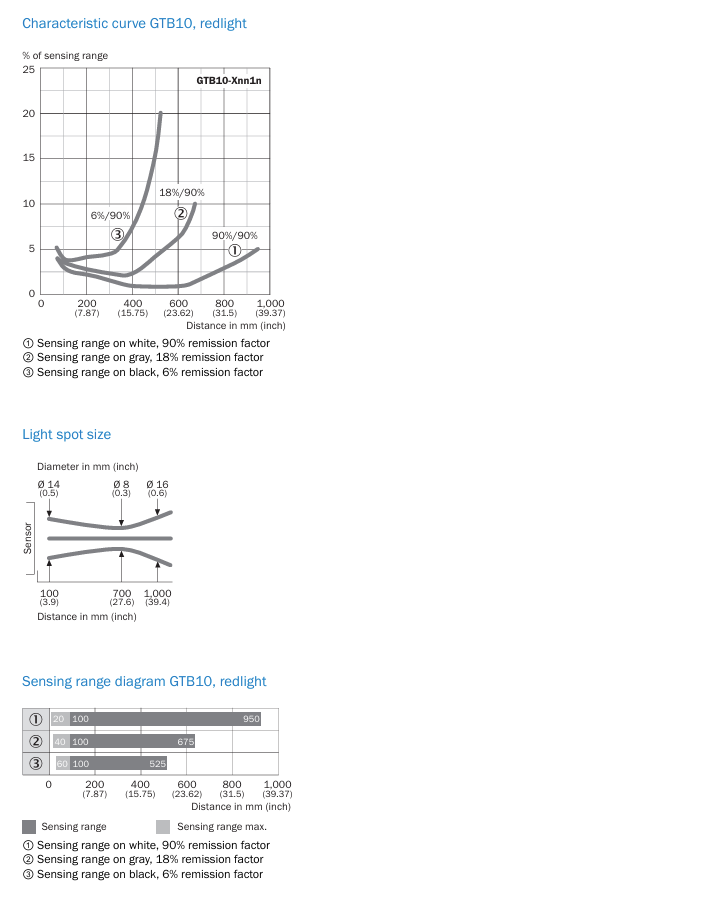

Sensing range max.：20 mm ... 950 mm
Type of light：Visible red light
Light source：PinPoint LED
Light spot size (distance)：Ø 8 mm (700 mm)
Wave length：625 nm

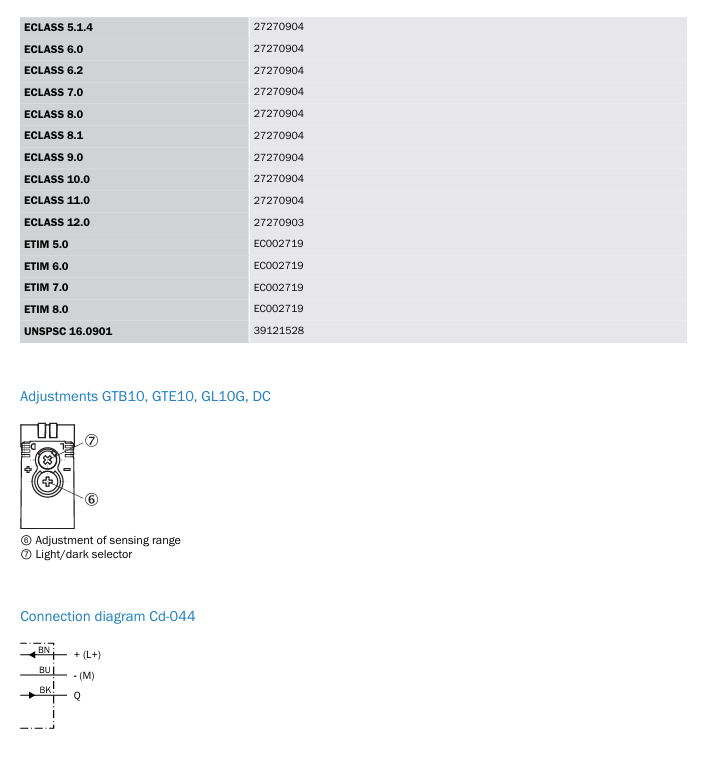

Adjustment：Potentiometer, 5 turns
Supply voltage UB：10 V DC ... 30 V DC
Ripple：< 5 Vpp

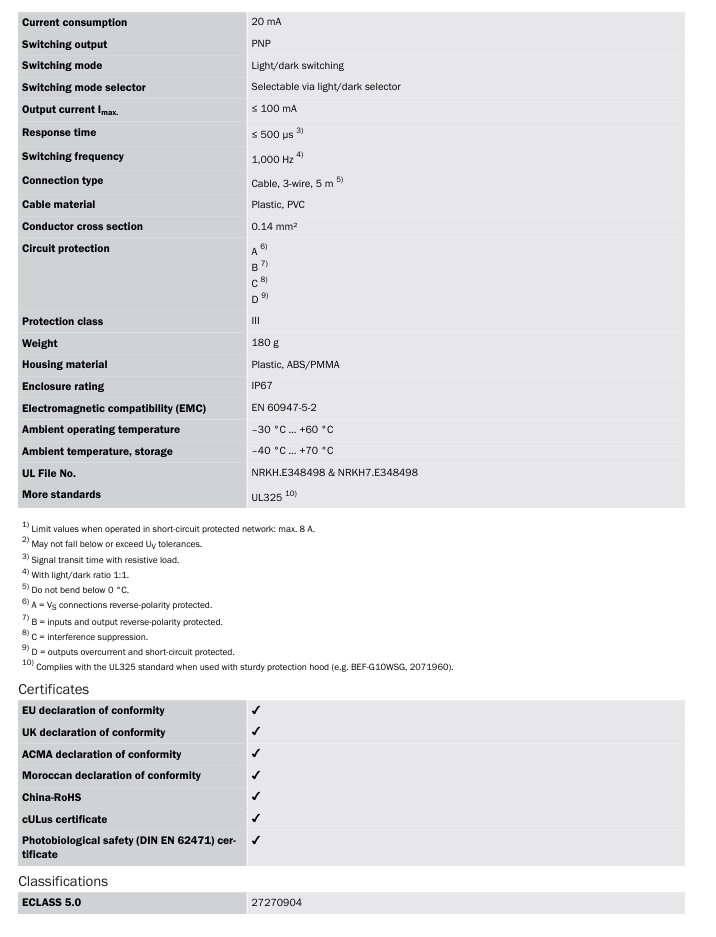

Current consumption：20 mA
Switching output：PNP
Switching mode：Light/dark switching
Switching mode selector：Selectable via light/dark selector
Output current Imax.：≤ 100 mA
Response time：≤ 500 µs
Switching frequency：1,000 Hz
Photoelectric sensors
G10Powerful detection, smart installation - down to the last detail
The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ideal product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.
