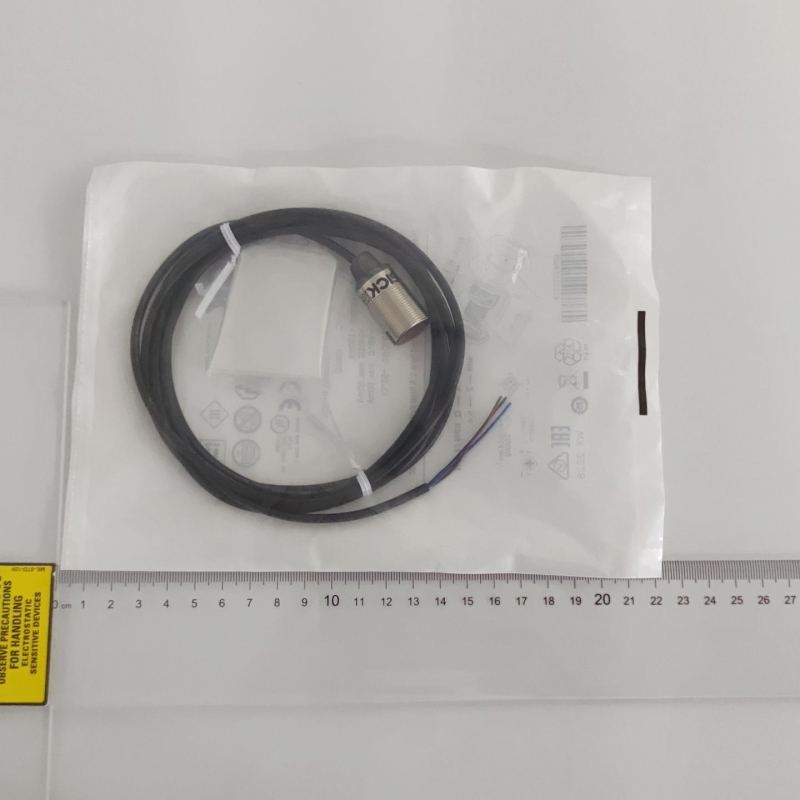

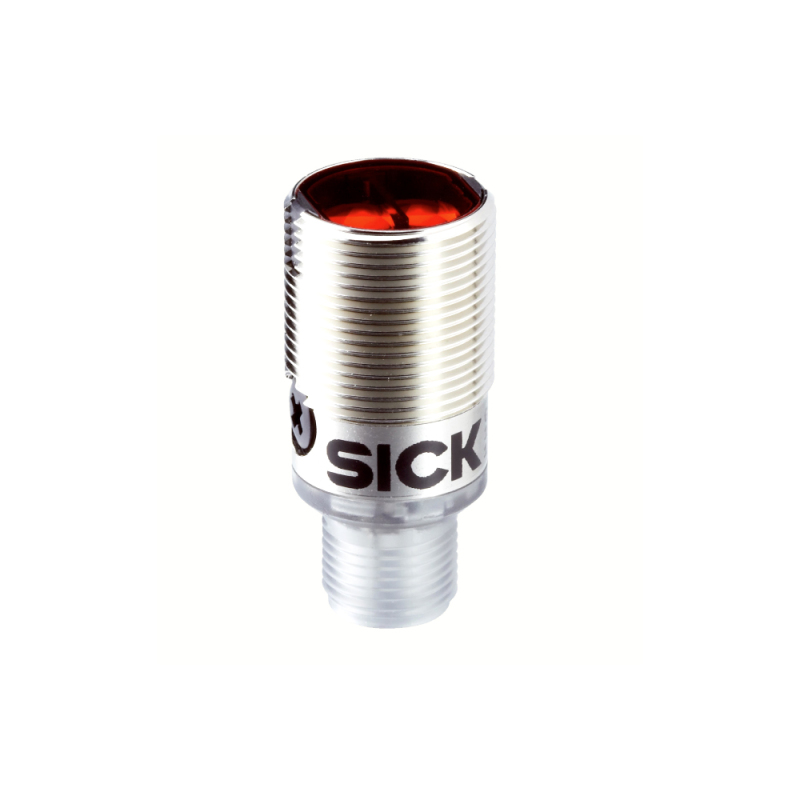

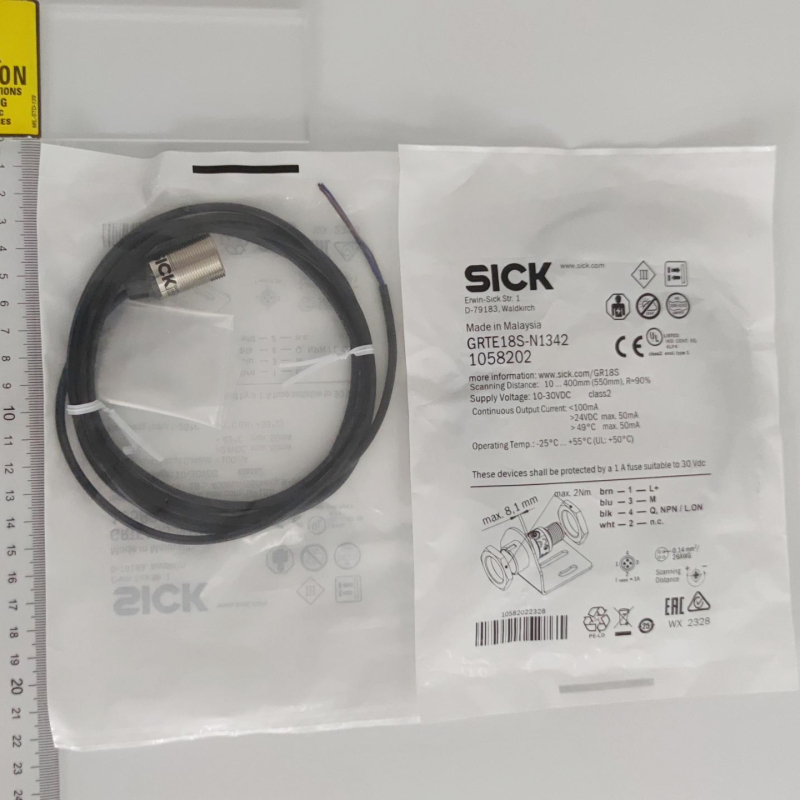

In Stock ! SICK Photoelectric sensors GRTE18S-N1342
| Brand | SICK |
| Date Code | 22+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |
- GET $10.00 OFF ON ORDERS OVER $100.00
| Brand | SICK |
| Date Code | 22+ |
| Packing | Bag |
| Package | Sensor |
| Minimum Packing | 1pcs |

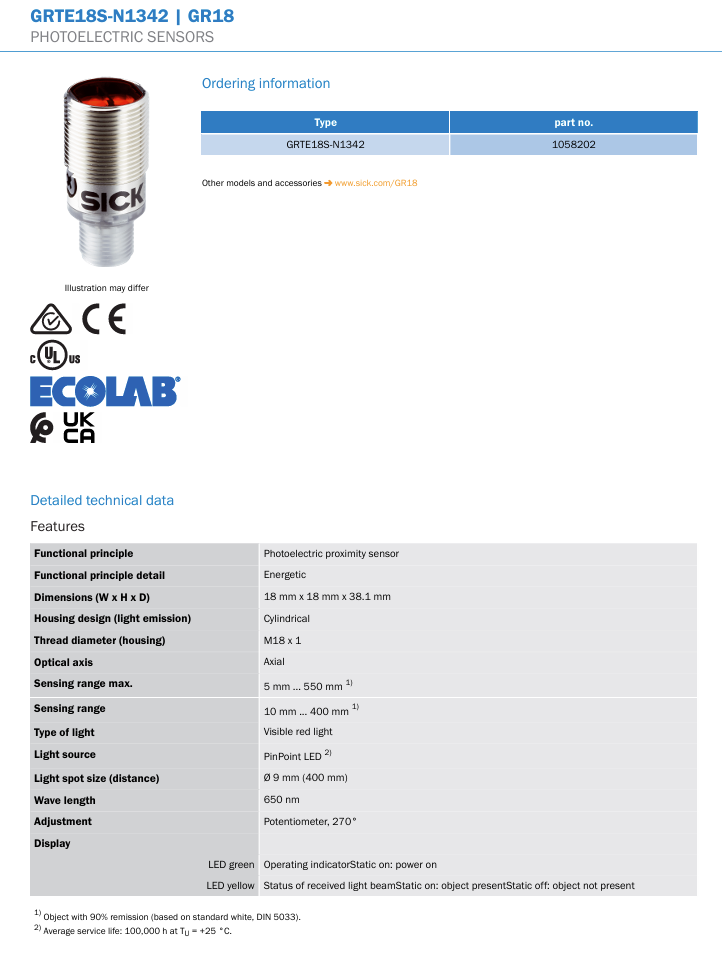

Features:
Functional principle:Photoelectric proximity sensor
Functional principle detail:Energetic

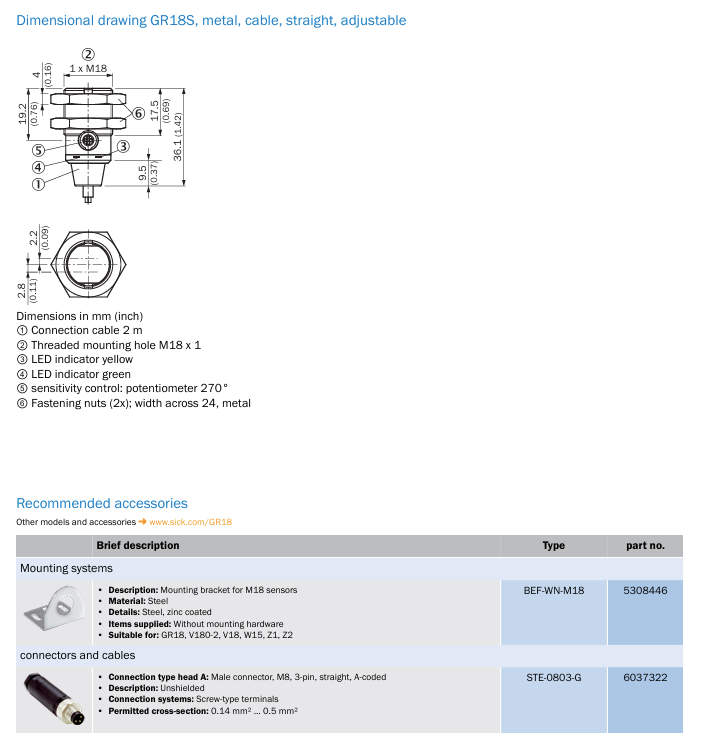

Dimensions (W x H x D):18 mm x 18 mm x 38.1 mm
Housing design (light emission):Cylindrical
Thread diameter (housing):M18 x 1
Optical axis:Axial

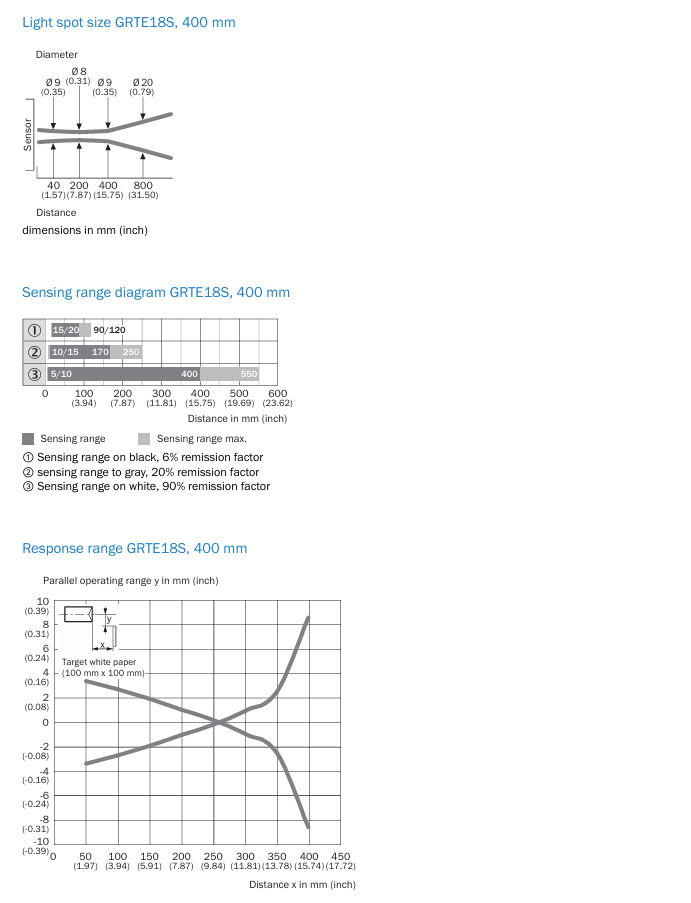

Sensing range max.:5 mm ... 550 mm
Sensing range:10 mm ... 400 mm
Type of light:Visible red light
Light source:PinPoint LED
Light spot size (distance):Ø 9 mm (400 mm)
Wave length:650 nm

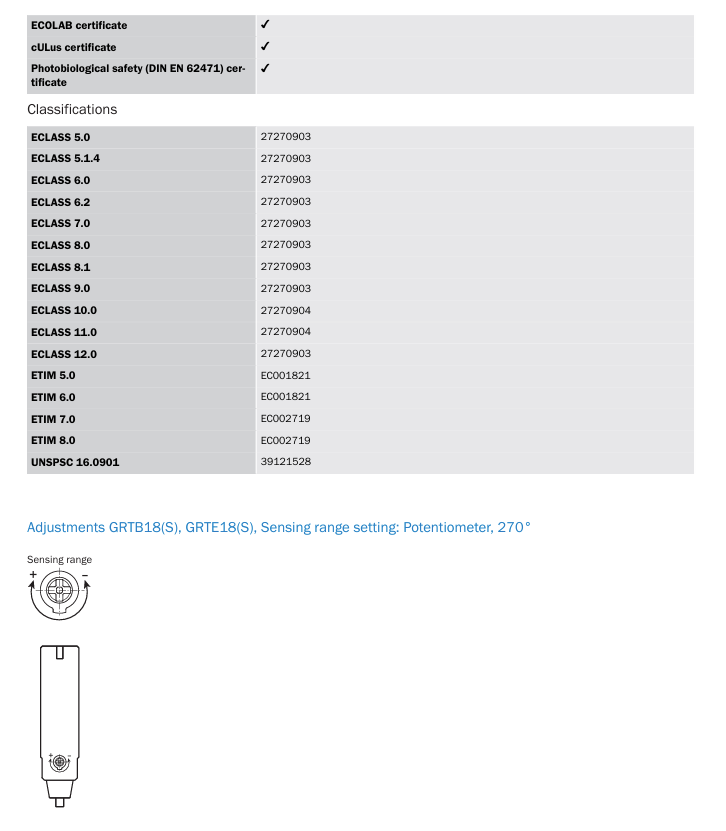

Adjustment:Potentiometer, 270°

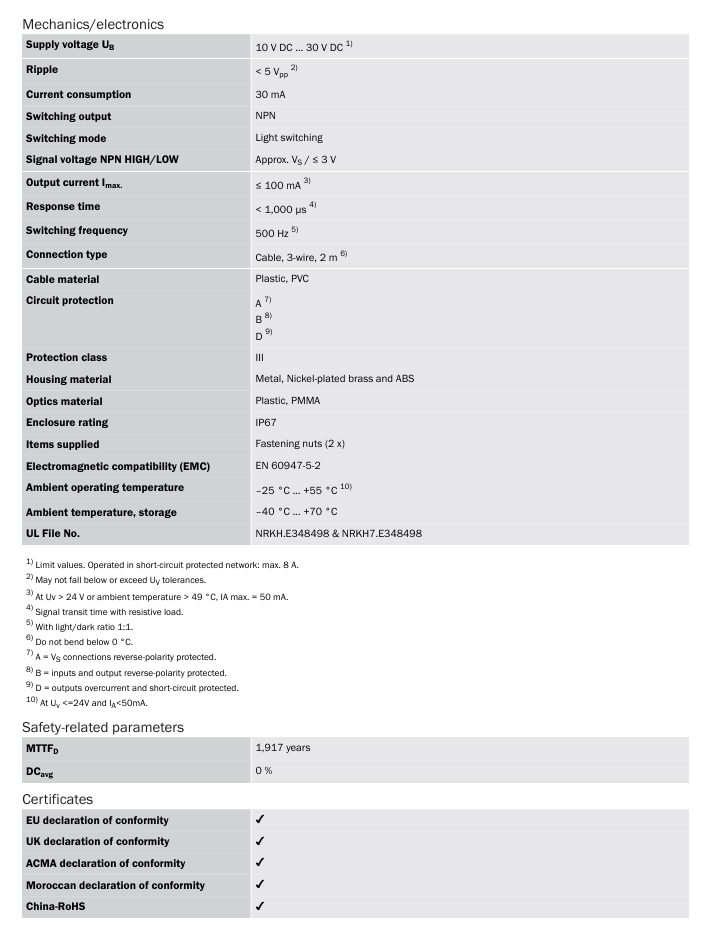

Supply voltage UB:10 V DC ... 30 V DC
Ripple:< 5 Vpp
Current consumption:30 mA
Switching output:NPN
Switching mode:Light switching
Signal voltage NPN HIGH/LOW:Approx. VS / ≤ 3 V
Output current Imax.:≤ 100 mA
Response time:< 1,000 µs
Switching frequency:500 Hz

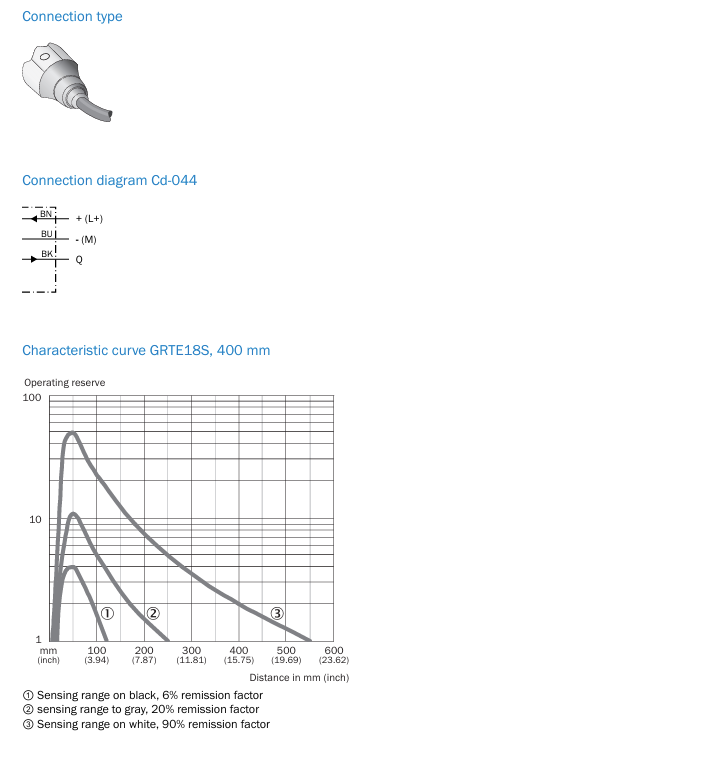

Connection type:Cable, 3-wire, 2 m
Cable material:Plastic, PVC





Similar models:
GRTB18S-P1317 1076094 GRTB18S-P1417 1077893 GRTB18S-E2317 1076113 GRTB18S-E1317 1076112 GRTB18S-F2317 1076111 GRTB18S-F3017S21 1122051 GRTB18S-F1317 1076110 GRTB18S-F1417 1081695 GRTB18S-F1417S09 1090652 GRTE18S-N2312 1059408 GRTE18S-N2317 1059378 GRTE18S-N231Z 1059432 GRTE18S-N1312 1058201 GRTE18S-N1317 1058194 GRTE18S-P2312 1058204 GRTE18S-P2312S02 1066165 GRTE18S-P2317 1058196 GRTE18S-P2319 1059407 GRTE18S-P231X 1059440 GRTE18S-P231Z 1059436 GRTE18S-P1312 1058203 GRTE18S-P1317 1058195 GRTE18S-P131Z 1102602 GRTE18S-N2342 1059482 GRTE18S-N2347 1059441 GRTE18S-N234Z 1059484 GRTE18S-N1342 1058202 GRTE18S-N1347 1058393 GRTE18S-N1442 1094936 GRTE18S-P2342 1058200 GRTE18S-P2347 1058193 GRTE18S-P2349 1059481 GRTE18S-P234X 1059489 GRTE18S-P234Z 1059487 GRTE18S-P1342 1058205
