In Stock ! SICK Photoelectric sensors GRL18S-P2436

Part no.: 1069072

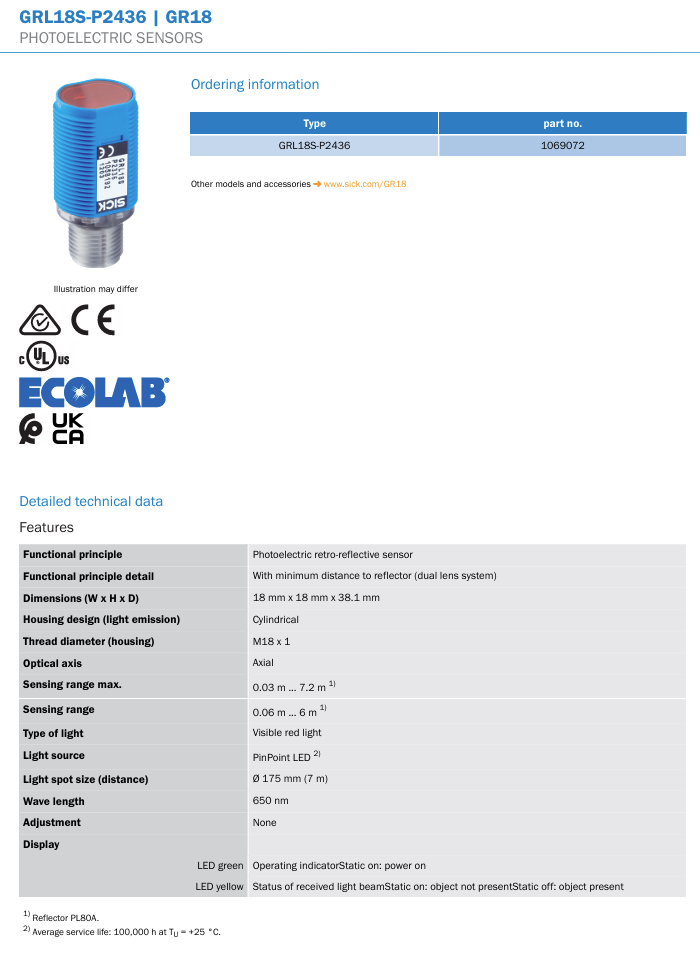

Features：

Dimensions (W x H x D)：18 mm x 18 mm x 38.1 mm

Housing design (light emission)：Cylindrical

Thread diameter (housing)：M18 x 1

Optical axis：Axial

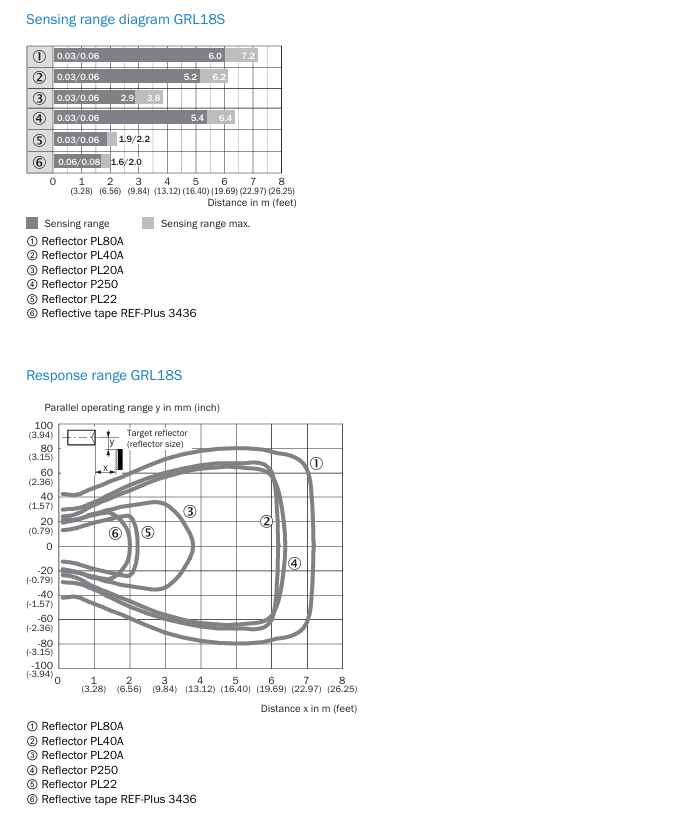

Sensing range max.：0.03 m ... 7.2 m

Sensing range：0.06 m ... 6 m 1)

Type of light：Visible red light

Light source：PinPoint LED 2)

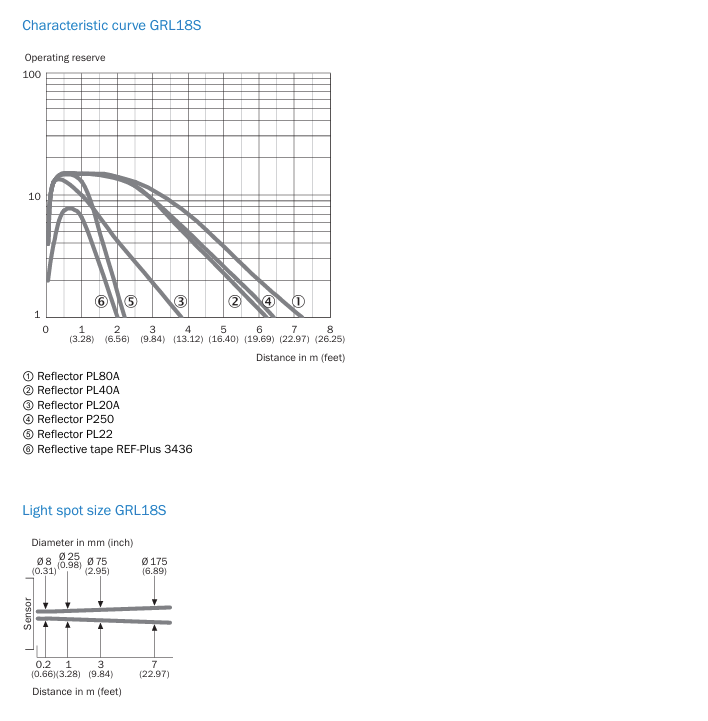

Light spot size (distance)：Ø 175 mm (7 m)

Wave length：650 nm

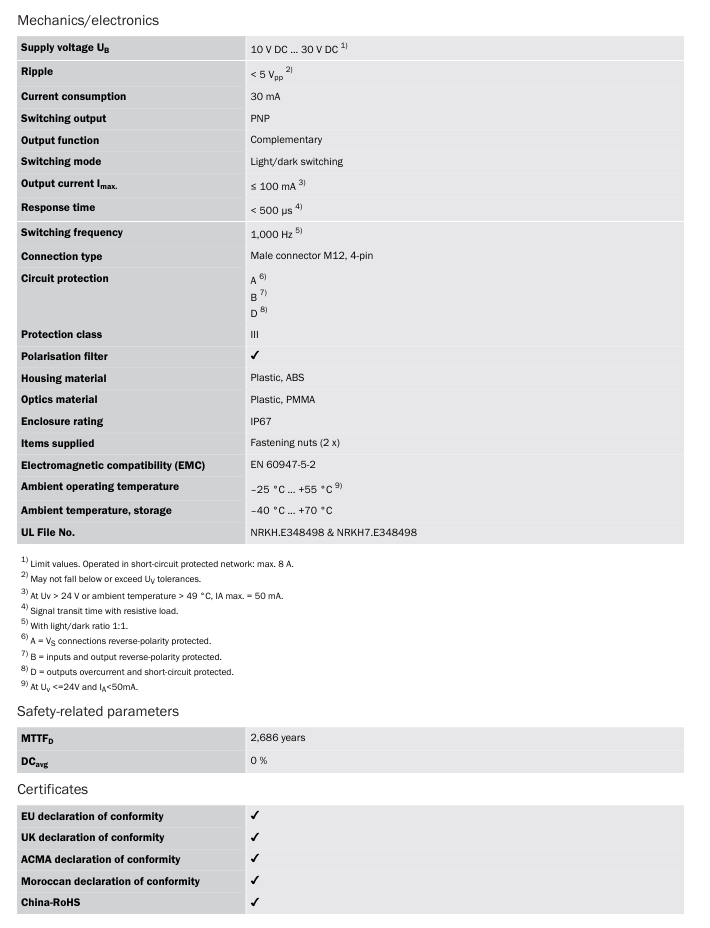

Supply voltage UB：10 V DC ... 30 V DC

Ripple：< 5 Vpp

Current consumption：30 mA

Switching output：PNP

Output function：Complementary

Switching mode：Light/dark switching

Output current Imax.：≤ 100 mA

Response time：< 500 µs

Switching frequency：1,000 Hz

Ambient operating temperature：–25 °C ... +55 °C

Ambient temperature, storage：–40 °C ... +70 °C

Enclosure rating：IP67

Photoelectric sensors

GR18Reliable cylindrical photoelectric sensors with a wide range of application possibilities

Cylindrical photoelectric sensors from the GR18 family are characterized by their universal application possibilities, reliable object detection and a very good price-performance ratio. The sensors have a cylindrical M18 housing available either in plastic or metal. The cylindrical photoelectric sensors are also available in different housing shapes and therefore offer a high level flexibility for mounting and application options. The PinPoint LED and intelligent electronics ensure high availability of the product family. It can be used in many applications. For instance, the rugged variant in the stainless steel housing can also be used in applications where it comes into contact with chemicals and cleaning agents.

Benefits

High level of flexibility thanks to diverse mounting and application options

Very easy to use thanks to simple assembly, commissioning, operation and maintenance

High detection reliability thanks to rugged optics and electronics

Very resistant, meaning they are suitable for conveyor applications, for instance

Different housing shapes based on standardized M18 design

Housing made of either plastic or metal

Bright, multi-color status LED

PinPoint LED and intelligent, interference-resistant signal evaluation

High tightening torque of the fully-flush variant
