| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

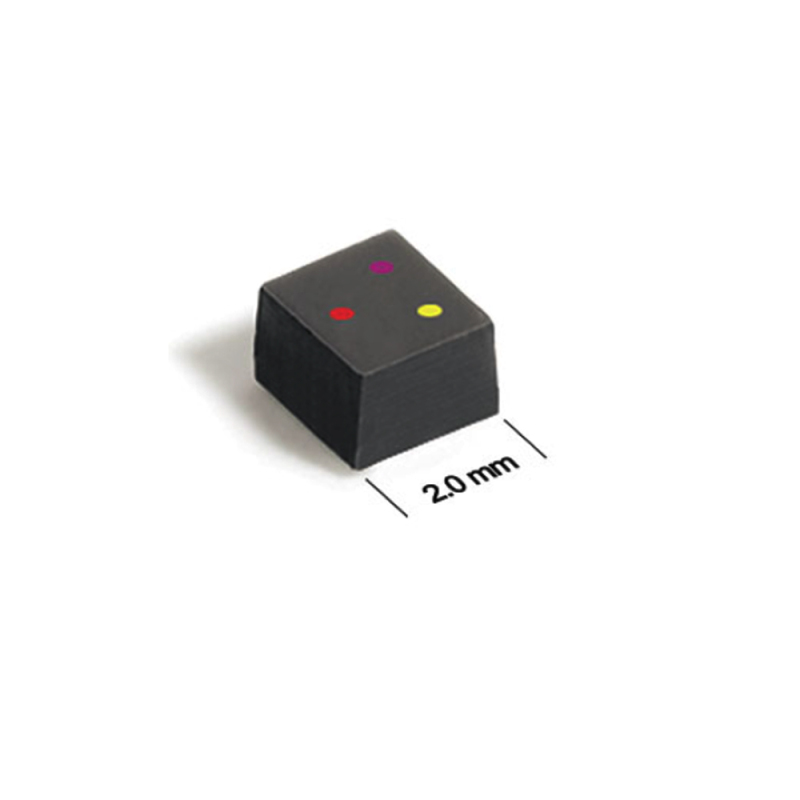

Power Inductors - SMD 1uH Shld 20% 1.94A 71mOhms AECQ2
Features：
EPL2014 molded surface mount power inductors are cost effective and ideal for applications requiring a miniature footprint. Their magnetic shielding allows for high-density mounting, and soft saturation assures peak current handling.
Compact, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
AEC-Q200 Grade 3 (-40°C to +85°C) with no thermal aging
|
Product Attribute |
Attribute Value |
|
Inductance: |
1 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.94 A |
|
Maximum DC Resistance: |
71 mOhms |
|
Saturation Current: |
1.68 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
153 MHz |
|
Termination: |
Standard |
|
Length: |
2 mm |
|
Width: |
2 mm |
|
Height: |
1.45 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
1 MHz |
|
Unit Weight: |
25 mg |
Similar Models：
EPL2014-271MLC EPL2014-421MLC EPL2014-601MLC EPL2014-821MLC EPL2014-102MLC EPL2014-152MLC EPL2014-222MLC EPL2014-332MLC EPL2014-472MLC EPL2014-682MLC EPL2014-822MLC EPL2014-103MLC
