| Brand | SICK |
| Date Code | 2432 |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |

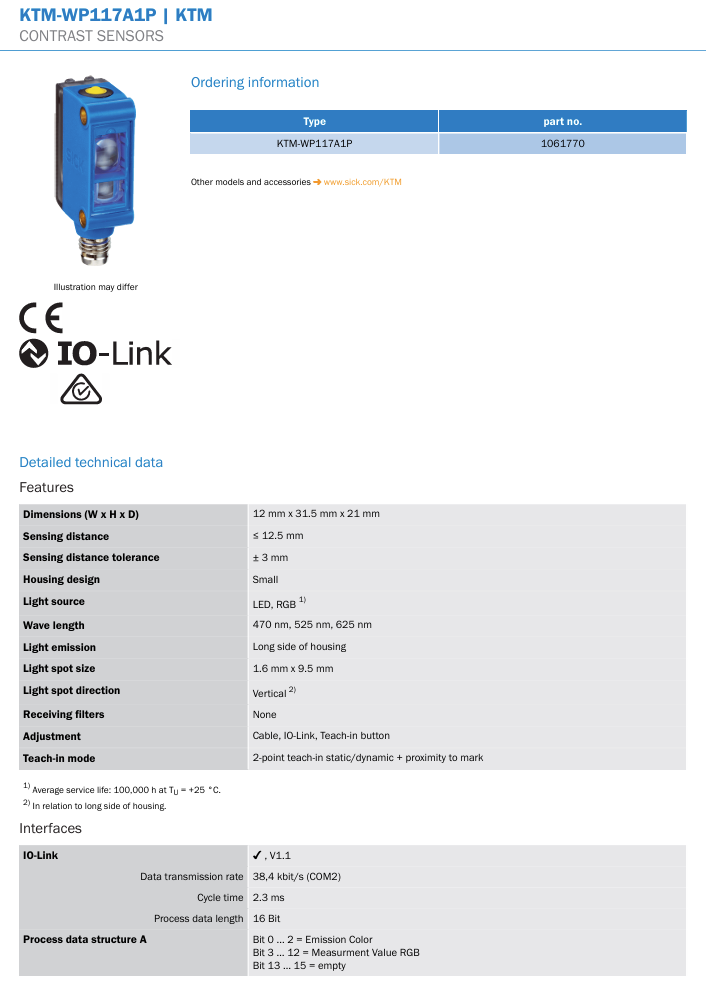

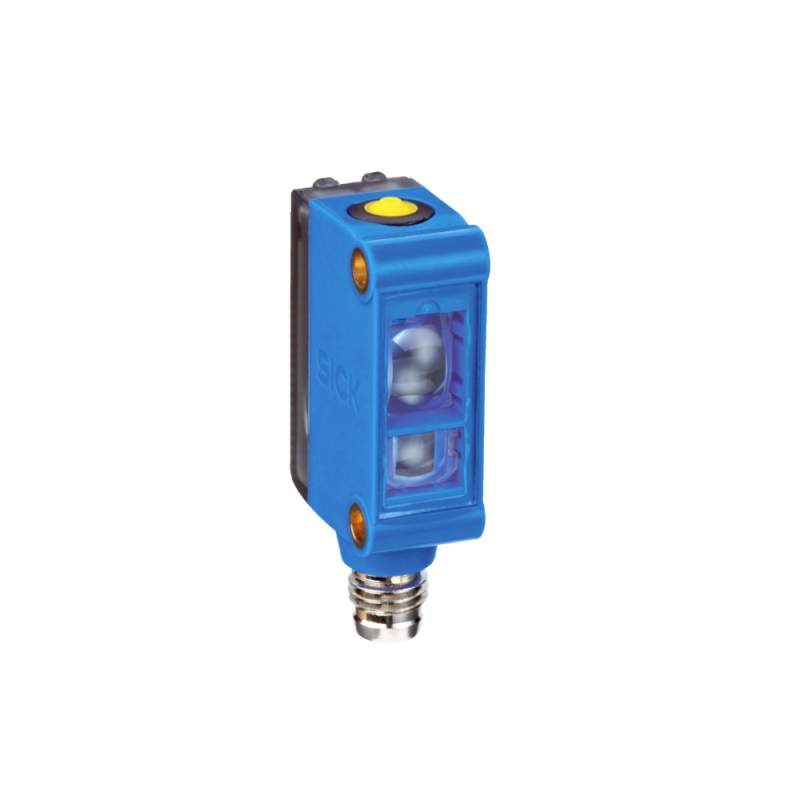

SICK Contrast sensors KTM-WP117A1P
Part no.: 1061770
Features：

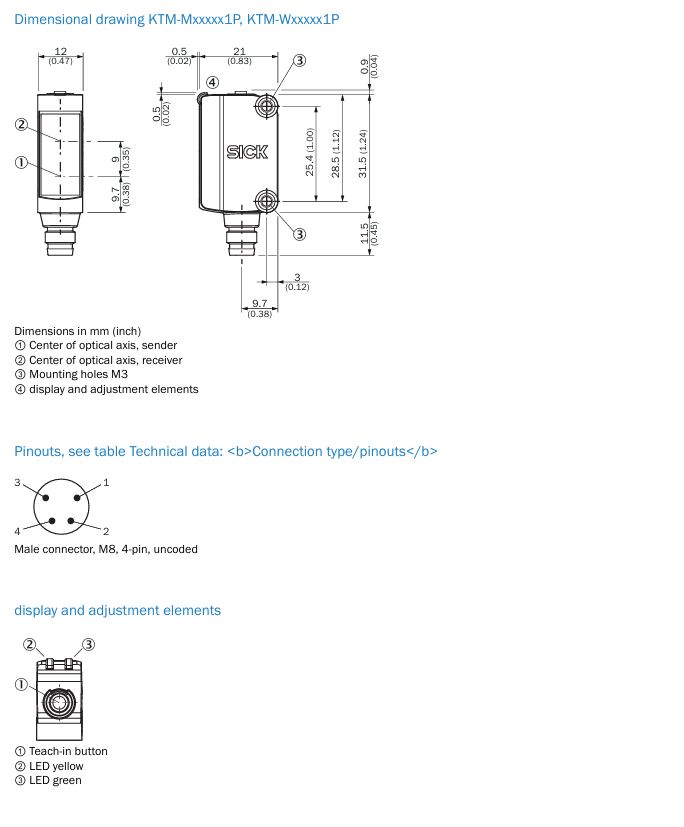

Dimensions (W x H x D)：12 mm x 31.5 mm x 21 mm
Sensing distance：≤ 12.5 mm
Sensing distance tolerance：± 3 mm
Housing design：Small
Light source：LED, RGB
Wave length：470 nm, 525 nm, 625 nm
Light emission：Long side of housing
Light spot size：1.6 mm x 9.5 mm

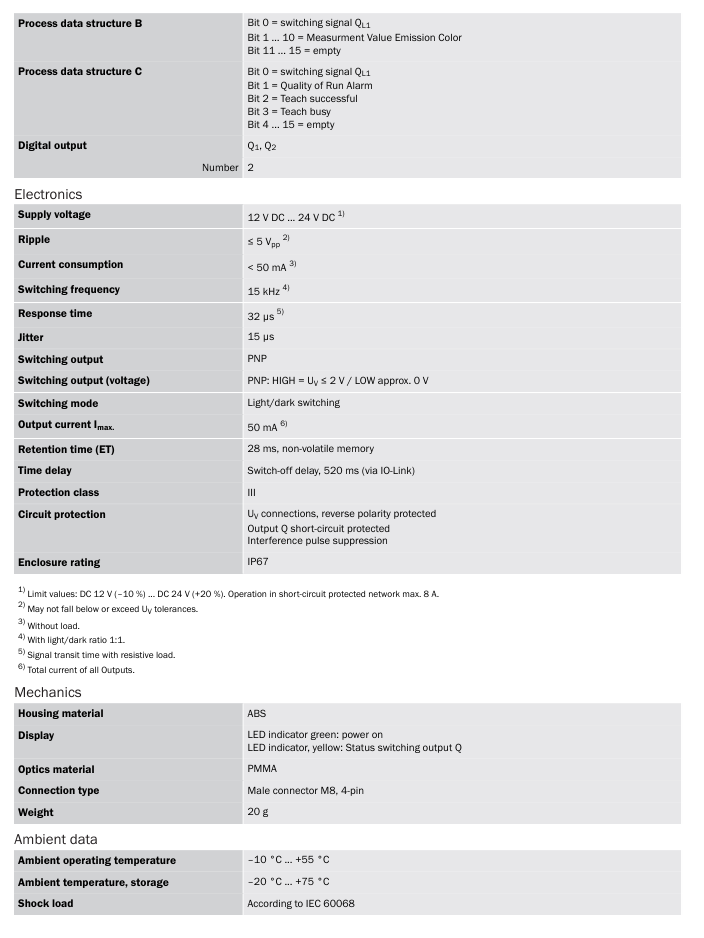

Supply voltage：12 V DC ... 24 V DC
Ripple：≤ 5 Vpp
Current consumption：< 50 mA
Switching frequency：15 kHz
Response time：32 µs
Jitter：15 µs
Switching output：PNP
Switching output (voltage)：PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Switching mode：Light/dark switching
Output current Imax.：50 mA
Retention time (ET)：28 ms, non-volatile memory
Time delay：Switch-off delay, 520 ms (via IO-Link)
Protection class：III
Enclosure rating：IP67
Weight：20 g
Ambient operating temperature：–10 °C ... +55 °C
Ambient temperature, storage：–20 °C ... +75 °C
Contrast sensors
KTMSmall, simple, fast
Top performance for versatile, space-saving use in the packaging industry: The KTM contrast sensor from SICK features a high grayscale resolution and is integrated into a small, tried-and-tested housing that is also available in stainless steel. The optimized OES4 ASIC technology and a response time of 35 to 50 µs ensure the reliable and precise detection of contrast marks, even on glossy materials. The various teach-in methods of the sensor offer greater flexibility during commissioning. The integrated IO-Link interface provides access to the parameter settings. For applications with larger distances, SICK offers a laser version of the KTM contrast sensor that can detect contrast marks at distances of up to 250 mm.
