| Brand | Texas Instruments |
| Date Code | 2207 |
| Packing | Reel |

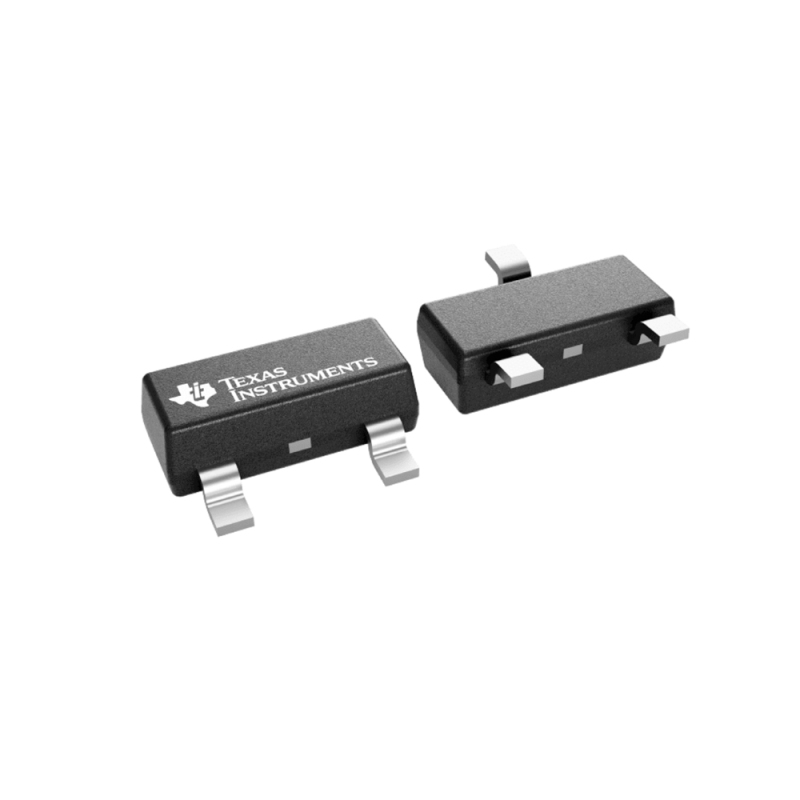

| Package | SOT-23-3 |
| Minimum Packing | 3000pcs |
High voltage (up to 38V), high bandwidth (30kHz) Hall-effect latch
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSN | NiPdAuAg |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
|
Quality, reliability |
Packaging information
|
Package | PinsSOT-23 (DBZ) | 3 |
|
Operating temperature range (°C)-40 to 125 |
|
Package qty | Carrier3,000 | LARGE T&R |

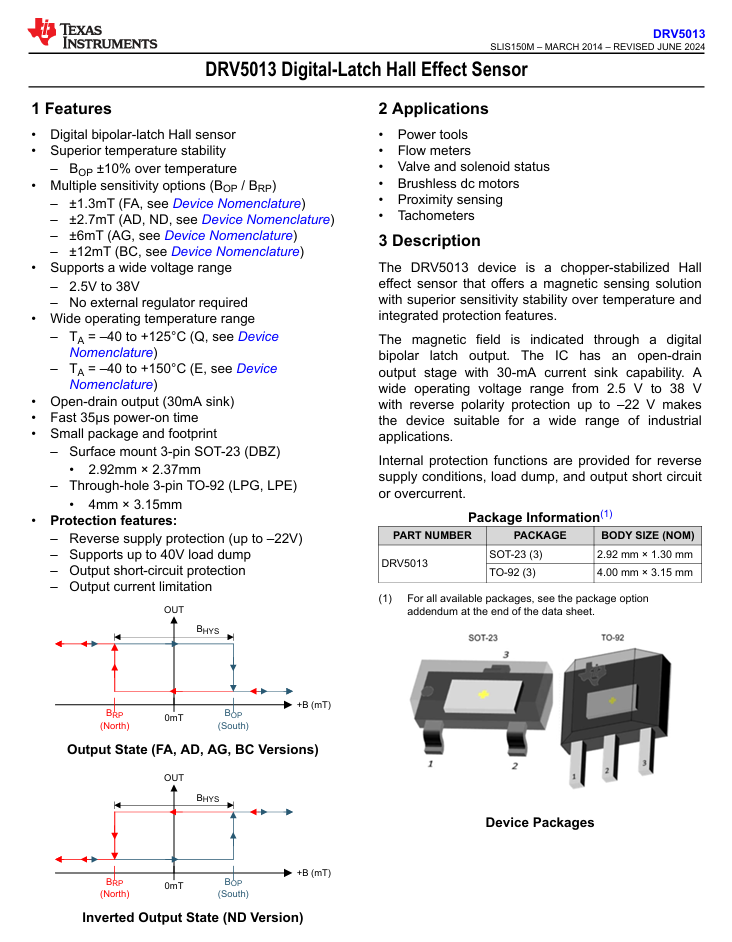

Features for the DRV5013
Digital bipolar-latch Hall sensor
Superior temperature stability
BOP ±10% over temperature
Multiple sensitivity options (BOP / BRP)
±1.3mT (FA, see Device Nomenclature)
±2.7mT (AD, ND, see Device Nomenclature)
±6mT (AG, see Device Nomenclature)
±12mT (BC, see Device Nomenclature)
Supports a wide voltage range
2.5V to 38V
No external regulator required
Wide operating temperature range
TA = –40 to +125°C (Q, see Device Nomenclature)
TA = –40 to +150°C (E, see Device Nomenclature)
Open-drain output (30mA sink)
Fast 35µs power-on time
Small package and footprint
Surface mount 3-pin SOT-23 (DBZ)
2.92mm × 2.37mm
Through-hole 3-pin TO-92 (LPG, LPE)
4mm × 3.15mm
Protection features:
Reverse supply protection (up to –22V)
Supports up to 40V load dump
Output short-circuit protection
Output current limitation
Description for the DRV5013
The DRV5013 device is a chopper-stabilized Hall effect sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
The magnetic field is indicated through a digital bipolar latch output. The IC has an open-drain output stage with 30-mA current sink capability. A wide operating voltage range from 2.5 V to 38 V with reverse polarity protection up to –22 V makes the device suitable for a wide range of industrial applications.
Internal protection functions are provided for reverse supply conditions, load dump, and output short circuit or overcurrent.
