| Brand | Coilcraft |
| Date Code | 18+ |
| Packing | Reel |
| Package | SMD |
| Minimum Packing | 1000pcs |

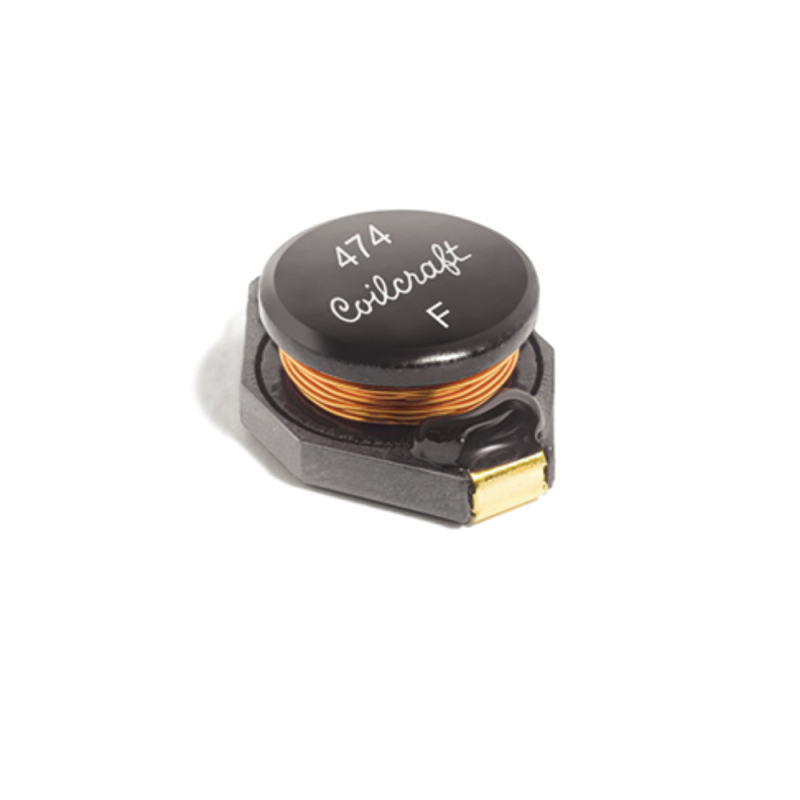

Power Inductors - SMD 220uH Unshld 20% 800mA 610mOhms
Features：

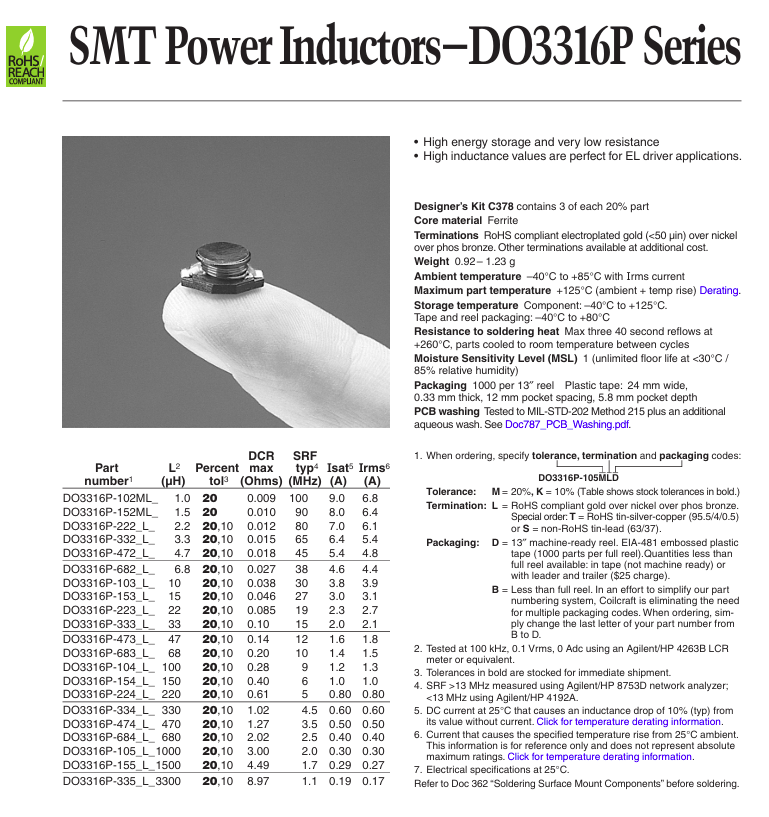

Coilcraft DO3316P Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.
Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
Defense Supply Center CID A-A-59737
|
Product Attribute |
Attribute Value |
|

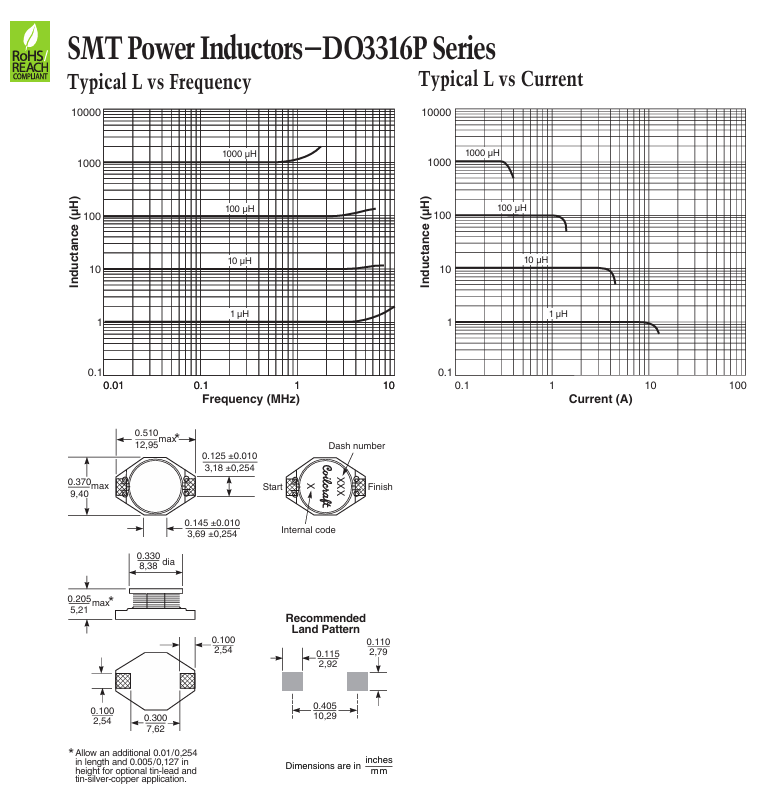

Package / Case: |
9.4 mm x 5.21 mm x 12.95 mm |
|
Shielding: |
Unshielded |
|
Inductance: |
220 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
800 mA |
|
Maximum DC Resistance: |
610 mOhms |
|
Saturation Current: |
800 mA |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
5 MHz |
|
Termination: |
Standard |
|
Length: |
12.95 mm |
|
Width: |
9.4 mm |
|
Height: |
5.21 mm |
|
Core Material: |
Ferrite |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
1 g |
