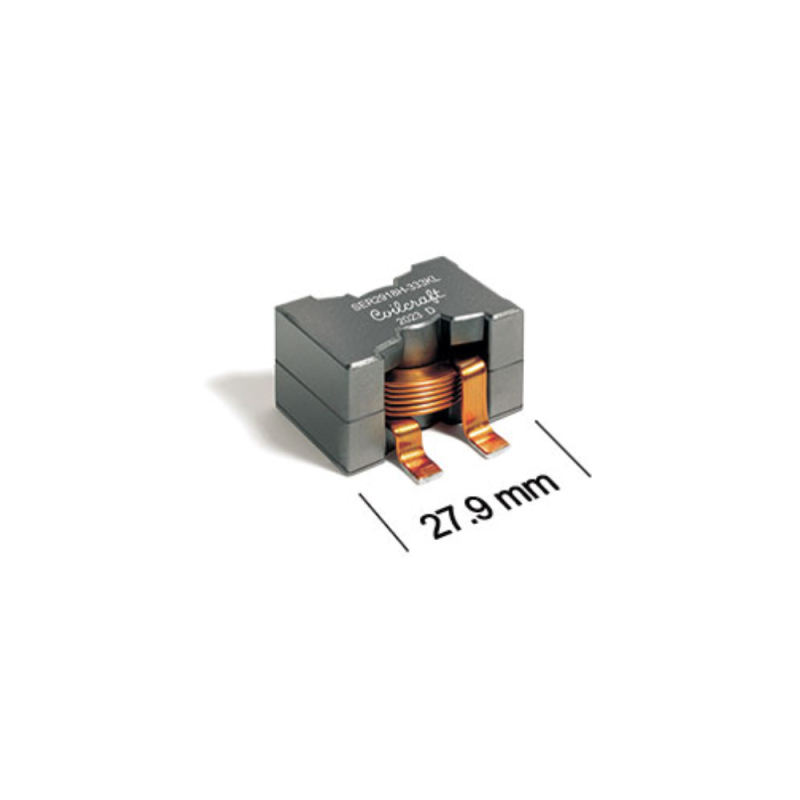

In Stock ! Coilcraft High Current Shielded Power Inductors SER2915L-103KL

Name: In Stock ! Coilcraft High Current Shielded Power Inductors SER2915L-103KL
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 5.7 USD
Availability: InStock

Brand : Coilcraft
Date Code : 25+
Packing : Tray
Package : SMD/SMT
Minimum Packing : 25

$5.70

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Power Inductors - SMD 10uH Shld 20% 17.6A 1.65mOhm AECQ2

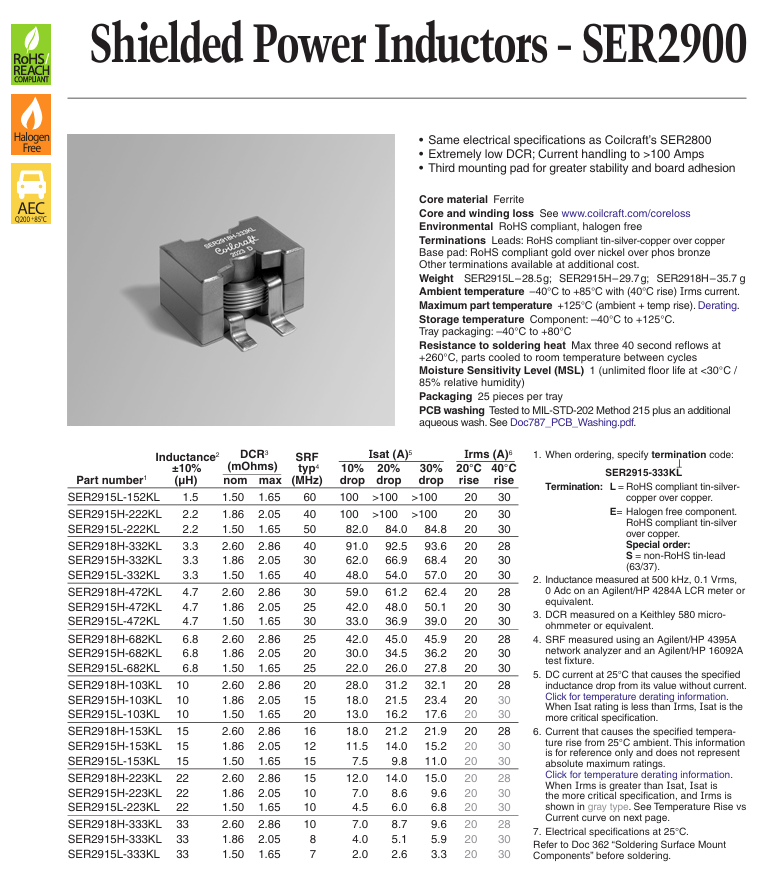

SER29xx Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
This is an improved version of the SER2800 series with a 3rd mounting pad for greater stability and board adhesion
Rugged flat wire construction
Exceptionally low DC resistance
Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI
AEC-Q200 qualified
