| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

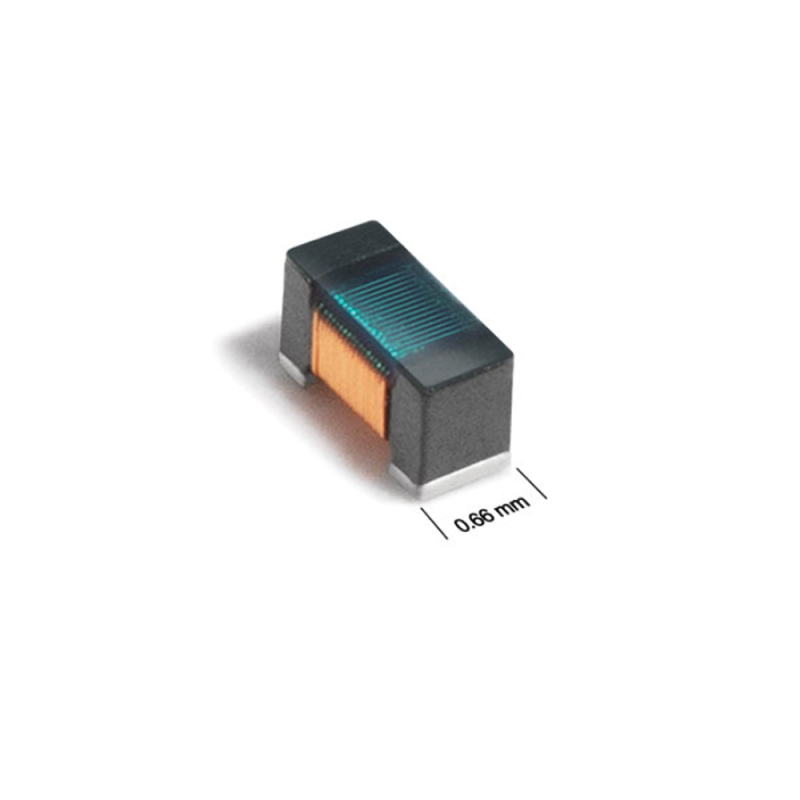

Power Inductors - SMD 0402 470nH Unshld 5% 340mA 670mOhms
Features：
Our 0402DF Series wirewound ferrite beads have higher performance than others in the market, including high impedance across a wide bandwidth - up to GHz band. Ferrite construction and heavy gage wire means high current handling for 0402 size. Extremely low DCR assures lowest insertion loss for high efficiency in mobile applications. These small beads eliminate noise in small power supplies and provide isolation of RF signals. They can withstand high temperatures and are AEC-Q200 Grade 1 (−40°C to +125°C) qualified.
Superior performance to other surface mount ferrite beads in the market
High impedance across a wide bandwidth – up to GHz band
Ferrite construction and heavy gauge wire for high current handling
Extremely low DCR for high current applications
Eliminates high frequency noise in power supplies or RF signal isolation applications
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
470 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
340 mA |
|
Maximum DC Resistance: |
670 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Self Resonant Frequency: |
1.07 GHz |
|
Termination: |
Standard |
|
Length: |
1.11 mm |
|
Width: |
0.66 mm |
|
Height: |
0.66 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
1.100 mg |
Similar Models：
0402DF-200XJRW 0402DF-300XJRW 0402DF-330XJRW 0402DF-360XJRW 0402DF-560XJRW 0402DF-770XJRW 0402DF-900XJRW 0402DF-101XJRW 0402DF-121XJRW 0402DF-141XJRW 0402DF-151XJRW 0402DF-181XJRW 0402DF-221XJRW 0402DF-271XJRW 0402DF-301XJRW 0402DF-331XJRW 0402DF-361XJRW 0402DF-421XJRW 0402DF-471XJRW 0402DF-531XJRW 0402DF-591XJRW 0402DF-701XJRW 0402DF-771XJRW 0402DF-821XJRW 0402DF-901XJRW 0402DF-102XJRW 0402DF-222XJRW 0402DF-332XJRW
