| Brand | Coilcraft |
| Date Code | 26+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

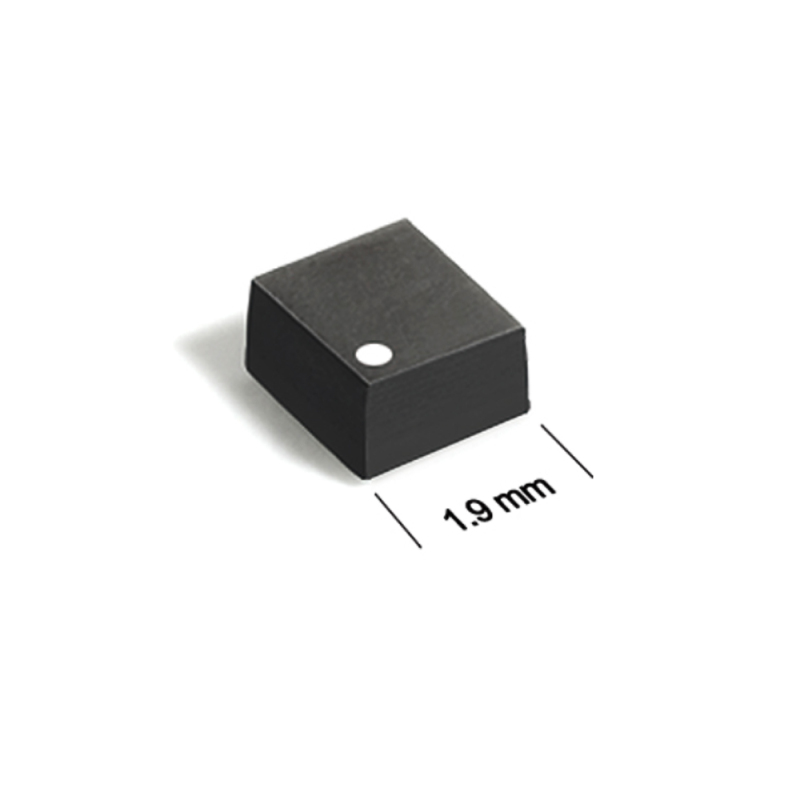

Power Inductors - SMD 2.2uH 90MHz DCR=.156Ohms +/-20% AEC-Q200
Features：
XFL2010 Series power inductors are among our smallest molded power inductors. They offer a high voltage rating of 40 V, which is much higher than similarly-sized competitive products. The XFL2010 also provides high current handling with low DCR and low AC losses. These ultra-low-profile power inductors are suitable for a wide range of applications from smart phones, IoT and wearable devices, to industrial and automotive applications.
High current handling with very low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
AEC-Q200 Grade 1 (–40°C to +125°C)
AEC-Q200 Grade 3 (–40°C to +85°C) for value -224 only
|
Product Attribute |
Attribute Value |
|
Shielding: |
Shielded |
|
Inductance: |
2.2 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1 A |
|
Maximum DC Resistance: |
115 mOhms |
|
Saturation Current: |
700 mA |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Self Resonant Frequency: |
90 MHz |
|
Termination: |
Standard |
|
Length: |
2 mm |
|
Width: |
0.9 mm |
|
Height: |
1 mm |
|
Test Frequency: |
1 MHz |
