| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 1000pcs |
Power Inductors - SMD 6.8uH Unshld 20% 4.4A 27mOhms
Features：

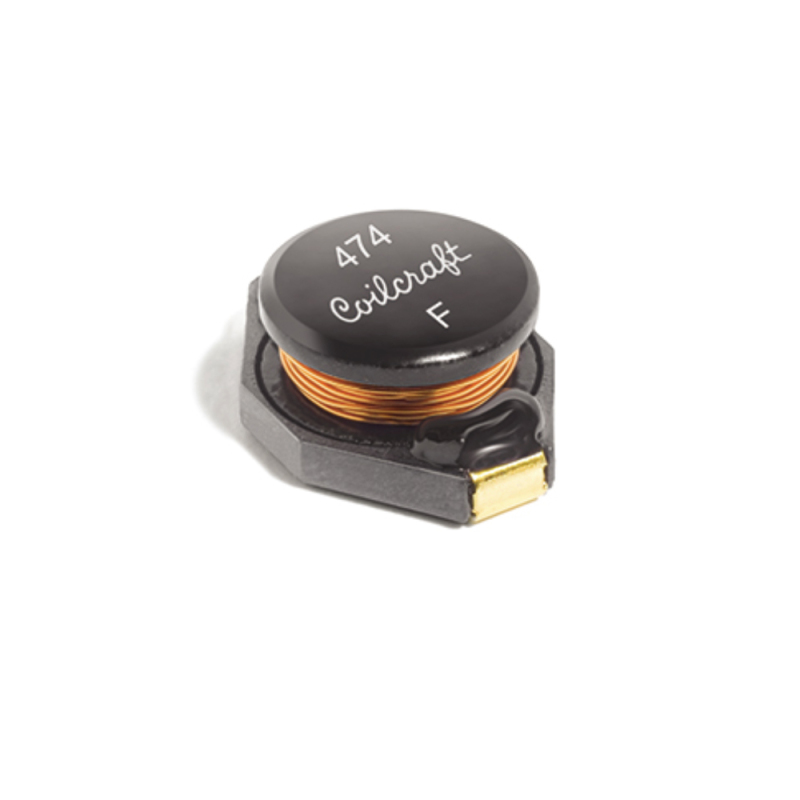

Coilcraft DO3316P Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.
Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
Defense Supply Center CID A-A-59737
|
Product Attribute |
Attribute Value |
|
Package / Case: |
9.4 mm x 5.21 mm x 12.95 mm |
|
Shielding: |
Unshielded |
|
Inductance: |
6.8 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
4.4 A |
|
Maximum DC Resistance: |
27 mOhms |
|
Saturation Current: |
4.6 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
38 MHz |
|
Termination: |
Standard |
|
Length: |
12.95 mm |
|
Width: |
9.4 mm |
|
Height: |
5.21 mm |
|
Core Material: |
Ferrite |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
1 g |
