| Brand | Coilcraft |
| Date Code | 21+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 300pcs |
Power Inductors - SMD 820uH Shld 10% 1.6A 736mOhms
Features：

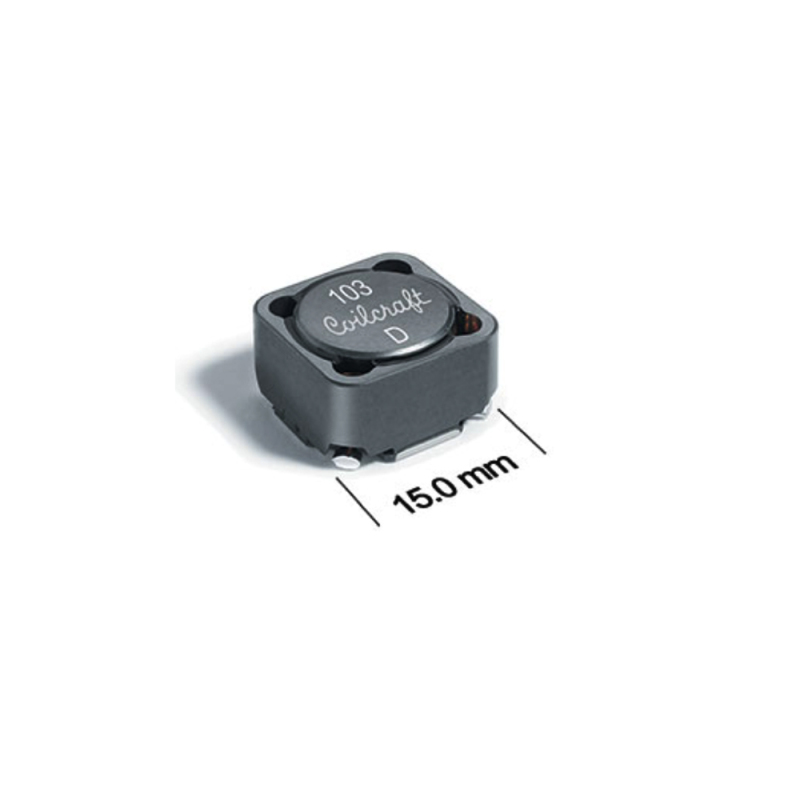

Coilcraft MSS1583 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 qualified
|
Product Attribute |
Attribute Value |
|
Inductance: |
820 uH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
1 A |
|
Maximum DC Resistance: |
736 mOhms |
|
Saturation Current: |
1.6 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
1.6 MHz |
|
Termination: |
Standard |
|
Length: |
14.8 mm |
|
Width: |
14.8 mm |
|
Height: |
8.6 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
4.400 g |
Similar Models：
MSS1583-103MED MSS1583-123MED MSS1583-153MED MSS1583-183MED MSS1583-223MED MSS1583-333MED MSS1583-473MED MSS1583-683MED MSS1583-104KED MSS1583-154KED MSS1583-224KED MSS1583-334KED MSS1583-474KED MSS1583-684KED MSS1583-824KED MSS1583-105KED
