| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 300pcs |

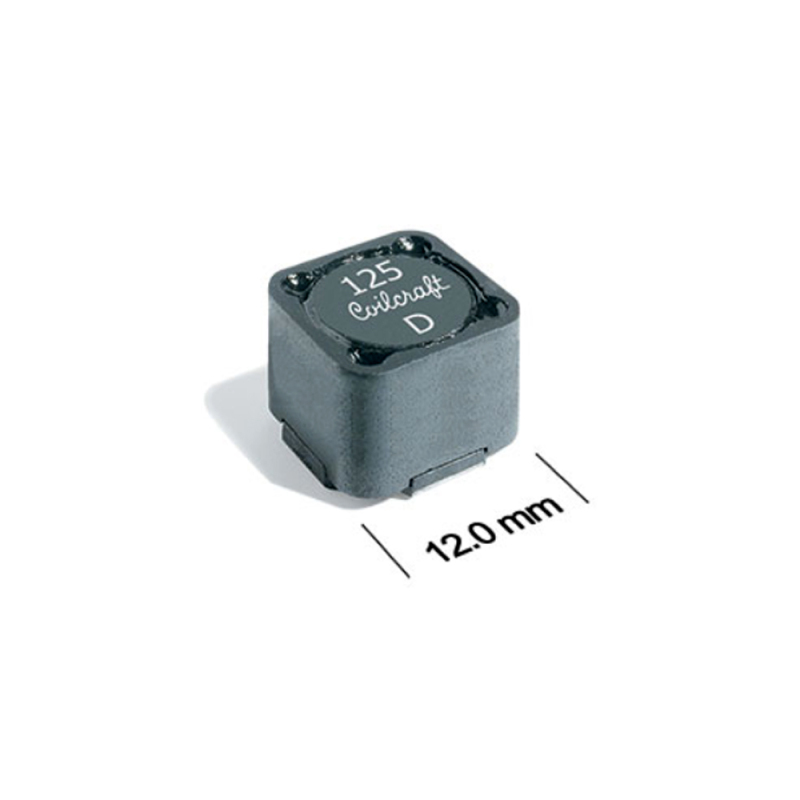

Power Inductors - SMD 15uH Shld 20% 8.7A 22mOhms AECQ2
Features：
Coilcraft MSS1210 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
|
Type: |
Power Inductor |
|
Shielding: |
Shielded |
|
Inductance: |
15 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
5.7 A |
|
Maximum DC Resistance: |
22 mOhms |
|
Saturation Current: |
10.7 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 85 C |
|
Self Resonant Frequency: |
12 MHz |
|
Termination: |
Standard |
|
Length: |
12.3 mm |
|
Width: |
12.3 mm |
|
Height: |
10 mm |
|
Core Material: |
Ferrite |
