| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

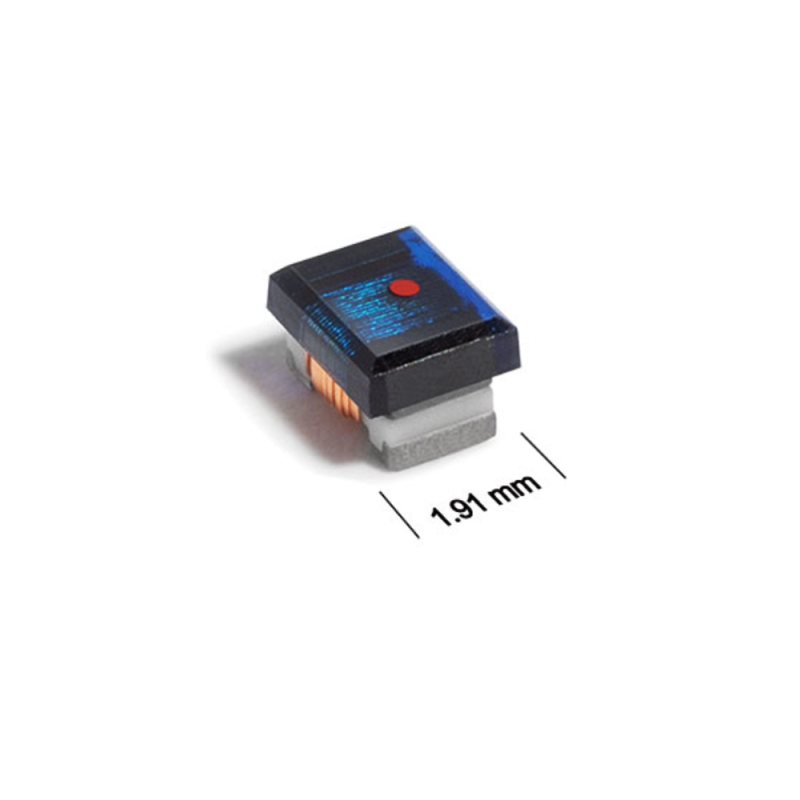

RF Inductors - SMD 0805 680nH Unshld 5% 590mA 460mOhms AECQ
Features：
Our 0805LS Series wirewound chip inductors have a ferrite-ceramic core construction that gives higher current handling and lower DCR in an 0805 chip size. Inductance values range from 78 nH to 27 uH. Tight tolerances of ±5% and ±2% are standard for all values in this series.
Ferrite construction for higher current carrying capacity
Lowest DCR in an 0805 form factor
Inductance values from 0.078 µH to 27 µH
AEC-Q200 Grade 3 (−40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
680 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
590 mA |
|
Maximum DC Resistance: |
460 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 85 C |
|
Q Minimum: |
20 |
|
Self Resonant Frequency: |
400 MHz |
|
Termination: |
Standard |
|
Length: |
2.29 mm |
|
Width: |
1.91 mm |
|
Height: |
1.6 mm |
|
Core Material: |
Ceramic |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
13 mg |
