| Brand | Coilcraft |
| Date Code | 23+/24+ |
| Packing | Reel |
| Package | SMD/SMT 2424 |
| Minimum Packing | 350pcs |
Power Inductors - SMD 22uH Shld 20% 1.6A 145mOhms AECQ2
Features：

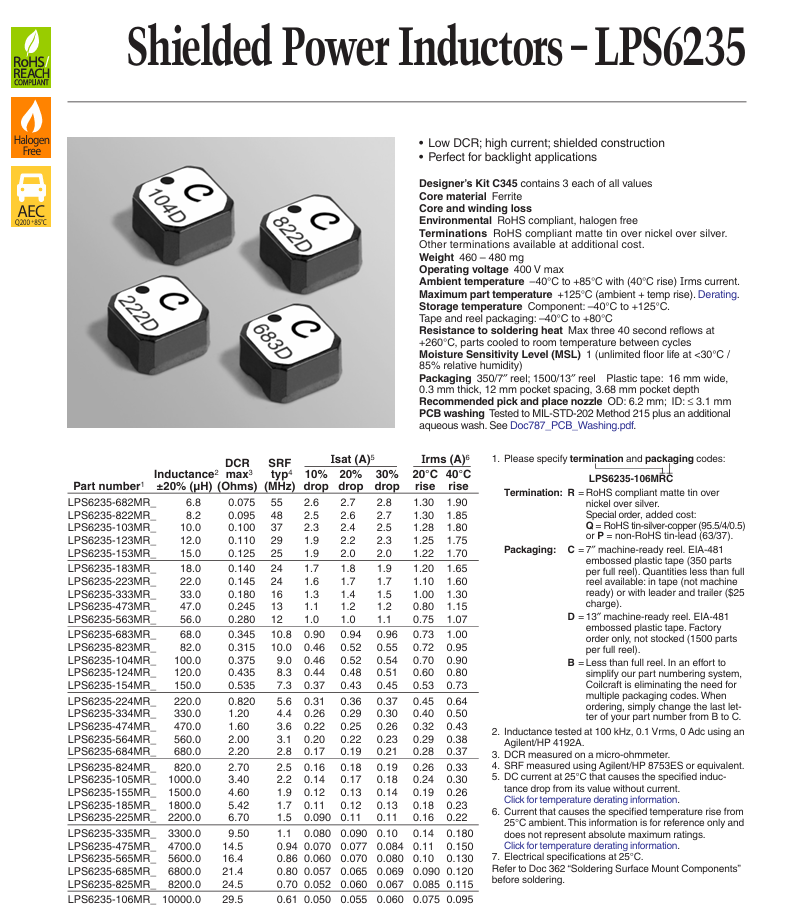

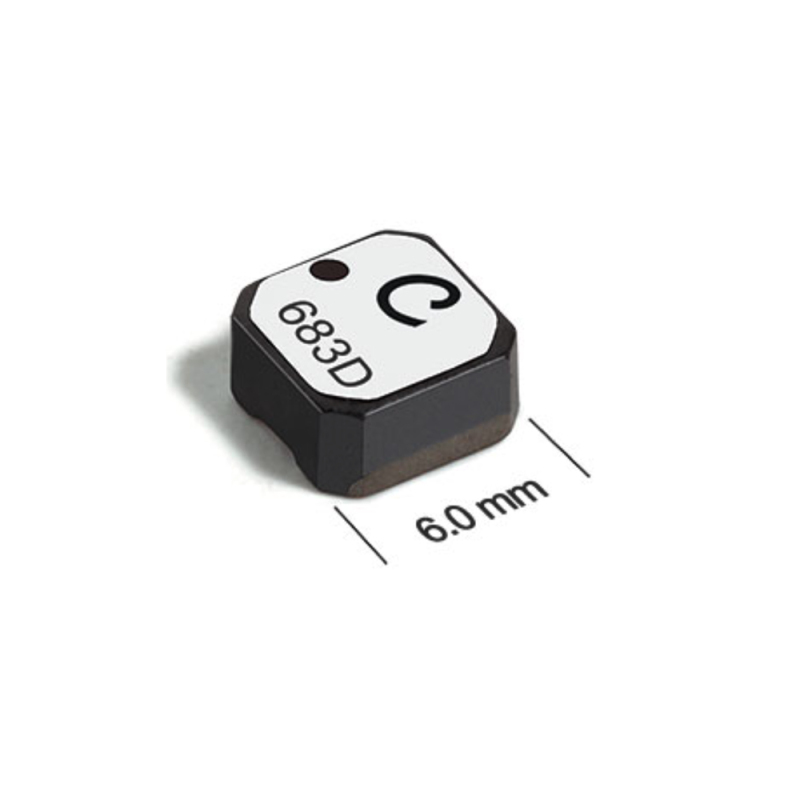

Coilcraft LPS6235 Series surface-mount power inductors offer high performance in a low-profile package. These compact power inductors offer excellent current handling, low DC resistance, a low profile, and magnetic shielding for high-density mounting.
High performance in low profile
High energy storage and low DC resistance
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Product Category: |
Power Inductors - SMD |
|
Shielding: |
Shielded |
|
Inductance: |
47 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.6 A |
|
Maximum DC Resistance: |
245 mOhms |
|
Saturation Current: |
1.7 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
24 MHz |
|
Termination: |
Standard |
|
Length: |
6 mm |
|
Width: |
6 mm |
|
Height: |
3.5 mm |
|
Mounting Style: |
PCB Mount |
|
Product: |
Power Inductors |
|
Product Type: |
Power Inductors - SMD |
|
Factory Pack Quantity: |
350 |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Termination Style: |
SMD/SMT |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
480 mg |
