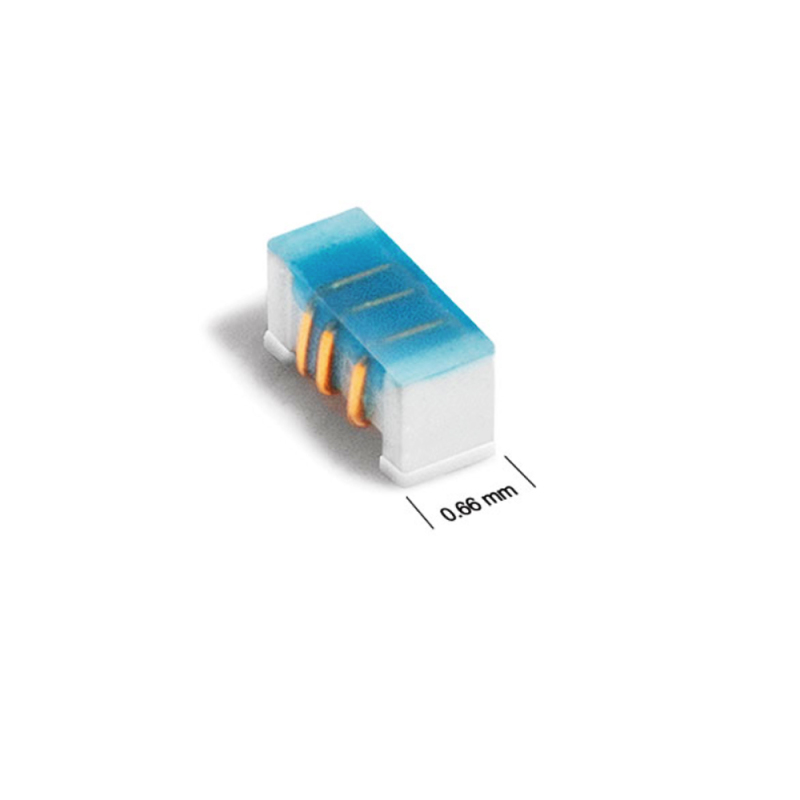

RF Inductors - SMD 1005 18nH Unshld 2% 1.1A 137.9mOhms
Features：
Our 0402DC Series offers the industry’s highest Q factors in an 0402 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 28.8 GHz – and offer DCR as low as 25 mΩ, significantly lower than other inductors this size.
Exceptionally high Q – up to 160 at 2.4 GHz!
112 inductance values from 0.8 to 120 nH
Available in 0.1 nH incremental steps between 2.8 nH and 10 nH
For inductance values greater than 120 nH please consider the 0402HP series.
Very high self-resonant frequencies – as high as 28.8 GHz
Lower DCR than other 0402 chip inductors
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
18 nH |
|
Tolerance: |
2 % |
|
Maximum DC Current: |
1.1 A |
|
Maximum DC Resistance: |
137.9 mOhms |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 125°C |
|
Q Minimum: |
98 |
|
Self Resonant Frequency: |
5.59 GHz |
|
Termination: |
Standard |
|
Length: |
1.11 mm |
|
Width: |
0.66 mm |
|
Height: |
0.65 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
250 MHz |
|
Unit Weight: |
1 mg |
