| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 500pcs |

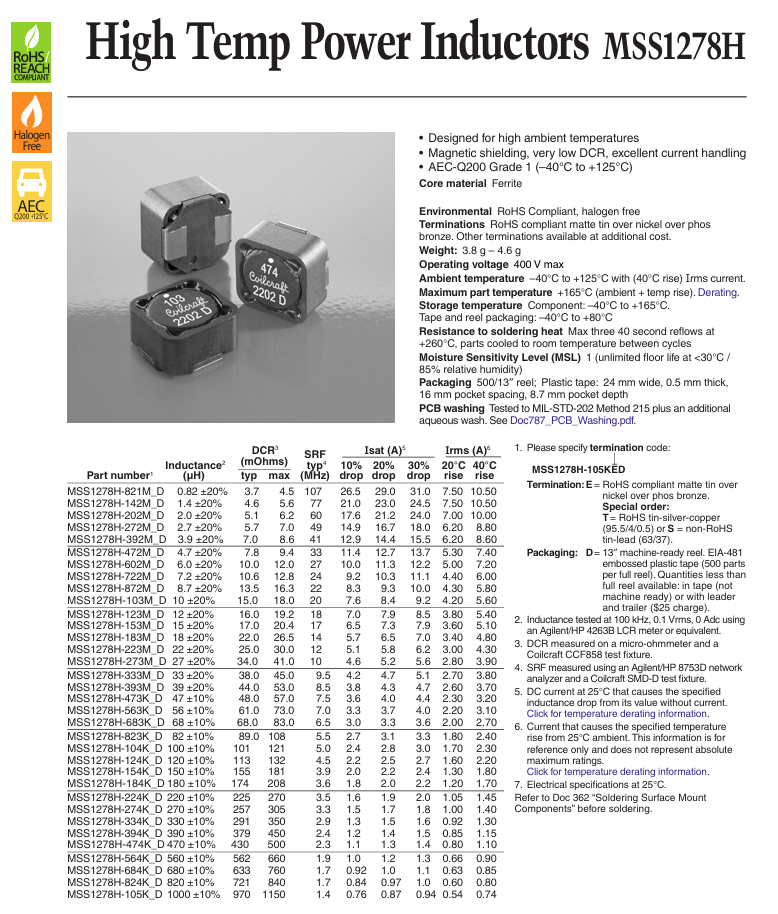

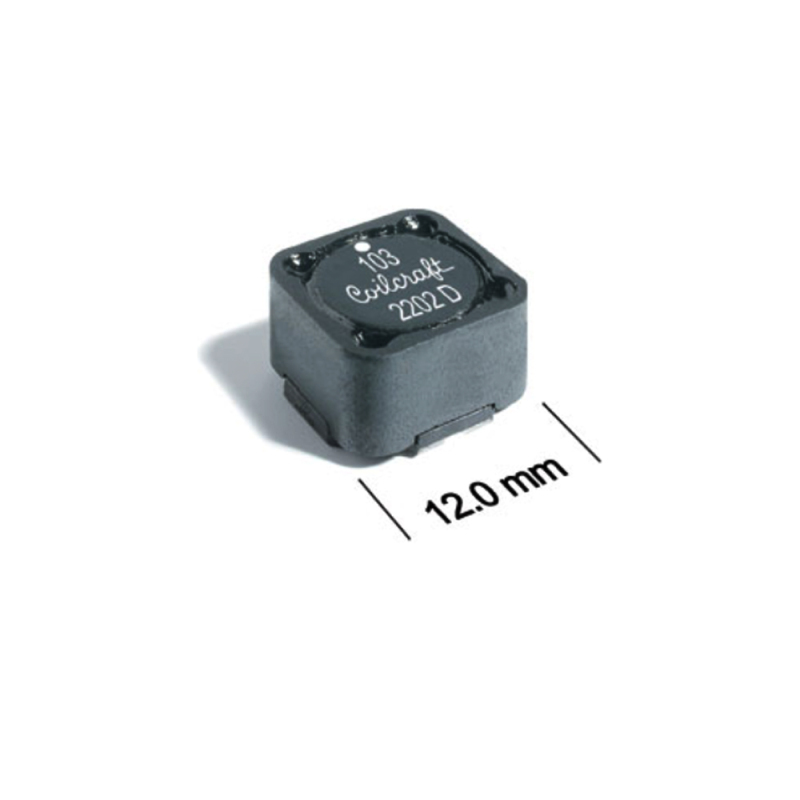

Power Inductors - SMD 390uH shld 1.15A 10% DCR=450mOhmsAEC-Q200
Features：
Designed for high ambient temperatures – up to 125°C with Irms current
AEC-Q200 Grade 1 (−40°C to +125°C)
Magnetically shielded
Saturation current rating up to 31 Amps and very low DCR
Inductance ratings from 1.0 to 1000 µH
RoHS-compliant. 260°C compatible. Matte tin over nickel over phos bronze terminations
COTS Plus tin-silver-copper and tin-lead terminations available.
|
Product Attribute |
Attribute Value |
|

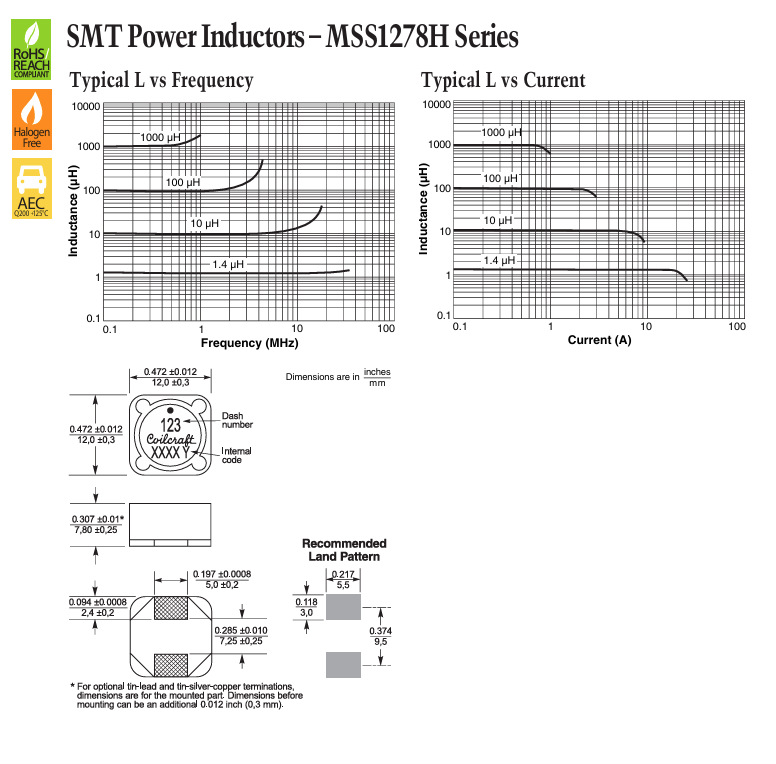

Package / Case: |
12 mm x 12 mm x 7.8 mm |
|
Shielding: |
Shielded |
|
Inductance: |
390 uH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
850 mA |
|
Maximum DC Resistance: |
379 mOhms |
|
Saturation Current: |
1.2 A |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 125°C |
|
Self Resonant Frequency: |
2.4 MHz |
|
Termination: |
Standard |
|
Length: |
12 mm |
|
Width: |
12 mm |
|
Height: |
7.8 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
Similar Models：
MSS1278H-821M_D MSS1278H-142M_D MSS1278H-202M_D MSS1278H-272M_D MSS1278H-392M_D MSS1278H-472M_D MSS1278H-602M_D MSS1278H-722M_D MSS1278H-872M_D MSS1278H-103M_D MSS1278H-123M_D MSS1278H-153M_D MSS1278H-183M_D MSS1278H-223M_D MSS1278H-273M_D MSS1278H-333M_D MSS1278H-393M_D MSS1278H-473K_D MSS1278H-563K_D MSS1278H-683K_D MSS1278H-823K_D MSS1278H-104K_D MSS1278H-124K_D MSS1278H-154K_D MSS1278H-184K_D MSS1278H-224K_D MSS1278H-274K_D MSS1278H-334K_D MSS1278H-394K_D MSS1278H-474K_D MSS1278H-564K_D MSS1278H-684K_D MSS1278H-824K_D MSS1278H-105K_D
