| Brand | Coilcraft |
| Date Code | 23+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

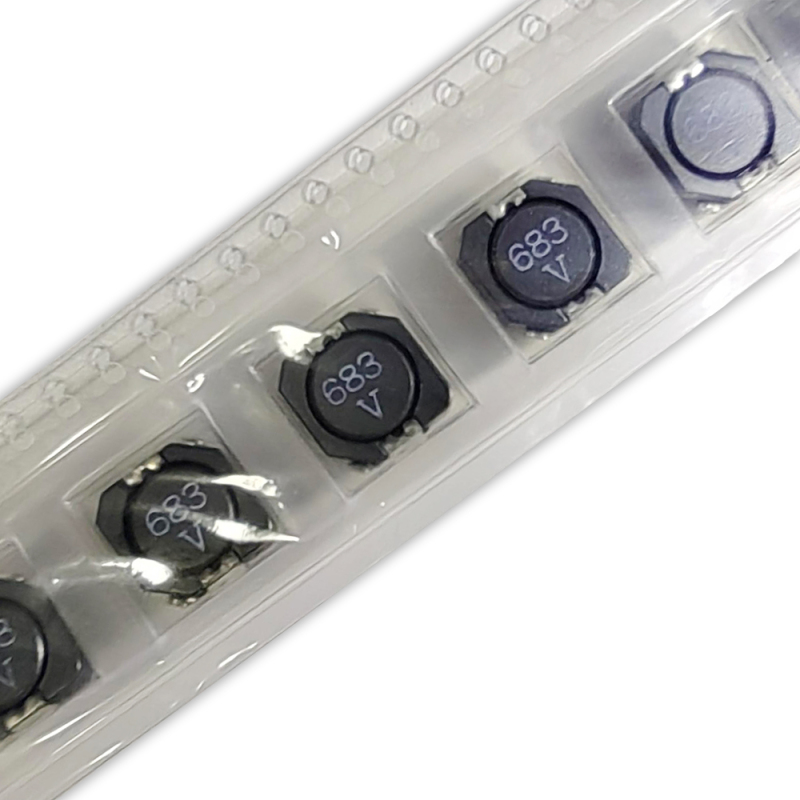

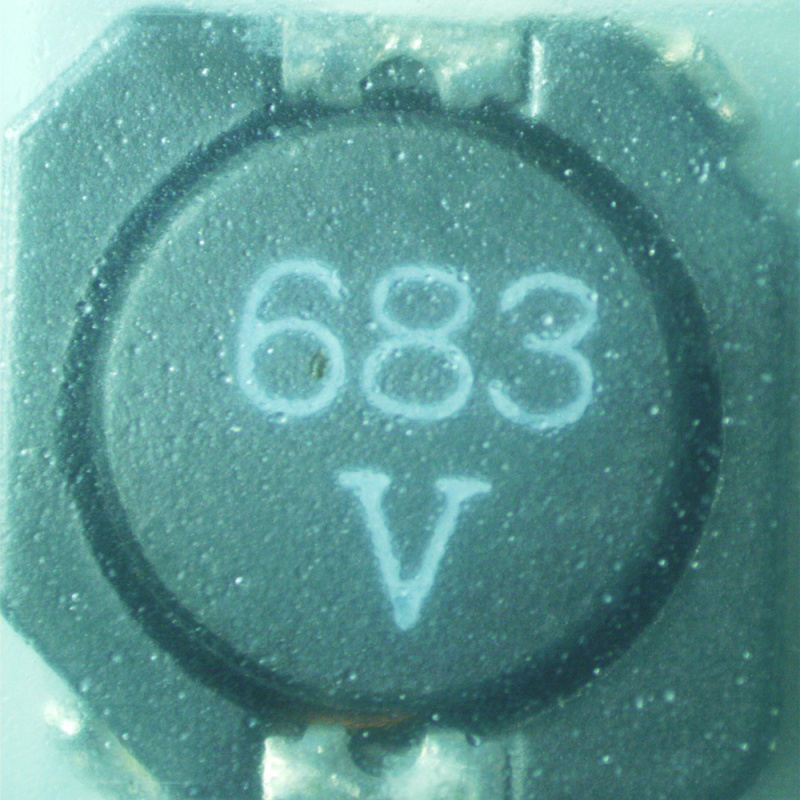

Power Inductors - SMD 68uH Shld 20% 1.75A 213mOhms AECQ2
Features：

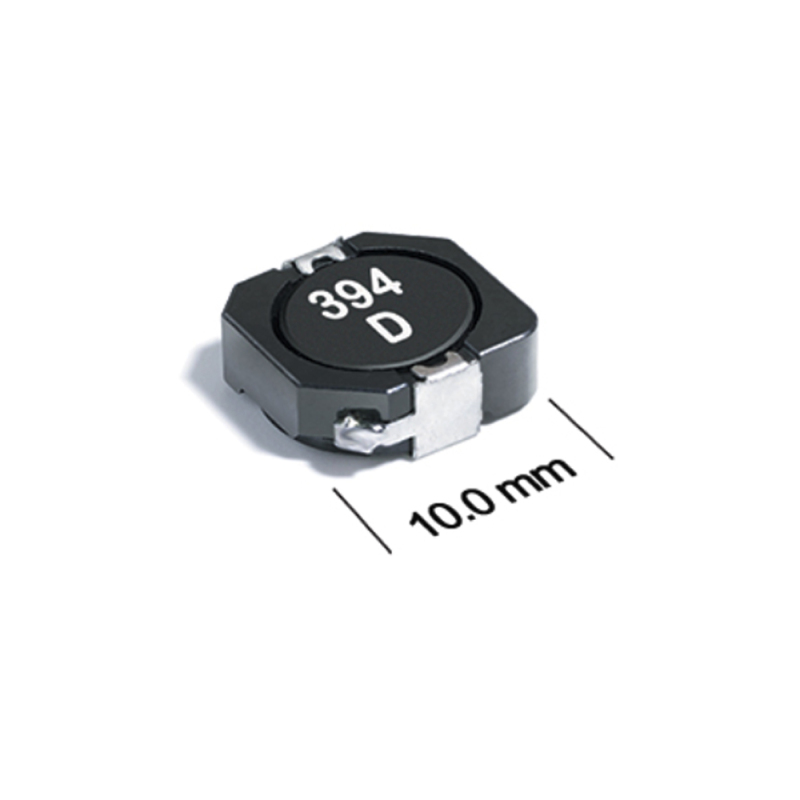

Coilcraft MSS1038T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 qualified
|
Product Attribute |
Attribute Value |
|
Package / Case: |
10 mm x 3.8 mm x 10.2 mm |
|
Shielding: |
Shielded |
|
Inductance: |
68 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.75 A |
|
Maximum DC Resistance: |
213 mOhms |
|
Saturation Current: |
1.82 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Self Resonant Frequency: |
10 MHz |
|
Termination: |
Standard |
|
Length: |
10.2 mm |
|
Width: |
10 mm |
|
Height: |
3.8 mm |
|
Core Material: |
Ferrite |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
5 g |
