| Brand | Coilcraft |
| Date Code | 18+ |
| Packing | Reel |
| Package | SMD |
| Minimum Packing | 2000pcs |

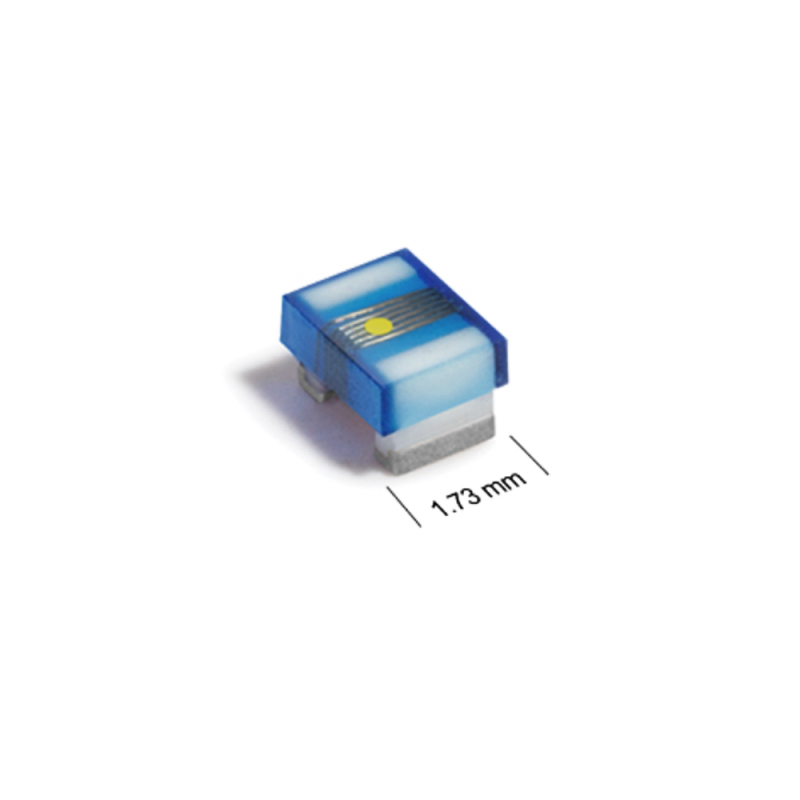

RF Inductors - SMD 0805 330nH Unshld 5% 1.4Ohms AEC-Q200

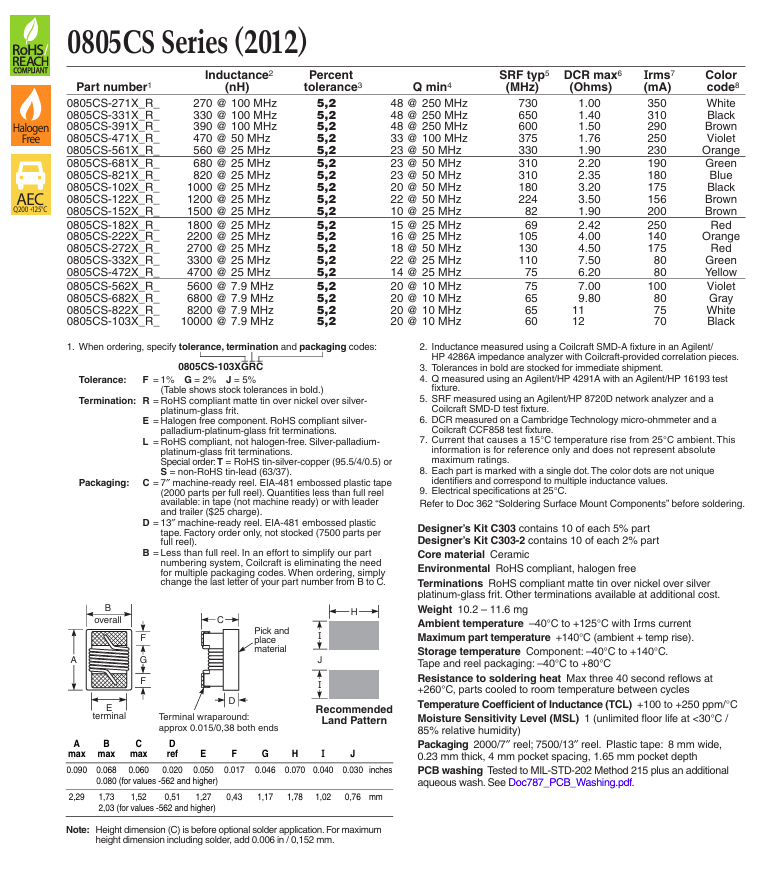

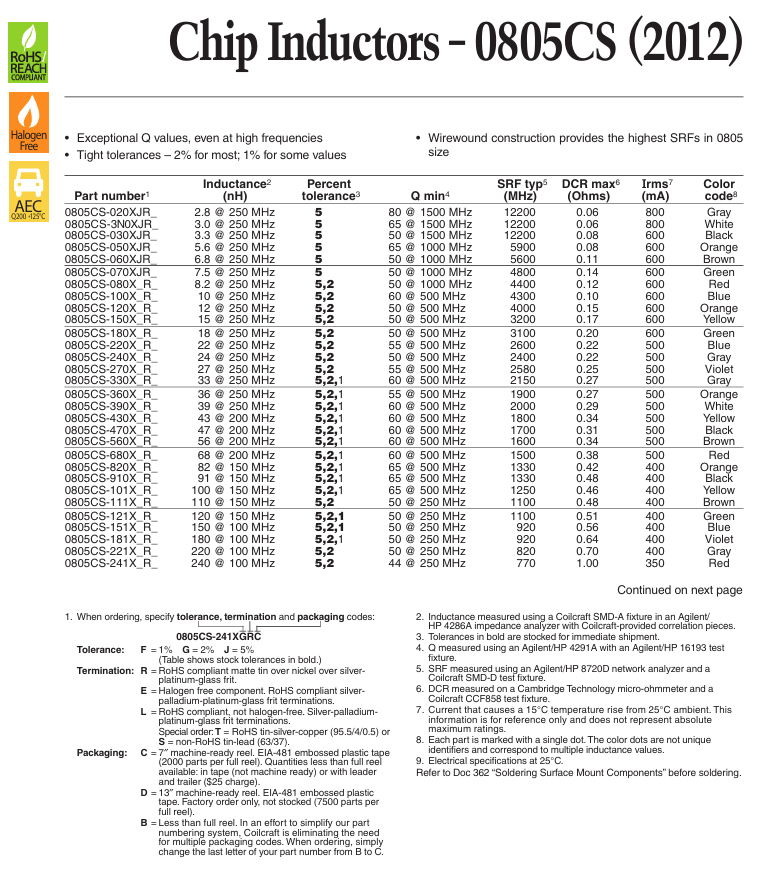

Features：
Our 0805CS Series is the original 0805-sized wirewound ceramic chip inductor. It is qualified to AEC-Q200 Grade 1 standards, making it suitable for automotive and other high-temperature applications.
Inductance values from 2.8 nH to 10000 nH (tolerances as low as 1%)
Exceptionally high Q compared to non-wirewound inductors, especially at high frequencies
Ceramic construction for highest possible self resonance (as high as 12.2 GHz)
Excellent current carrying capacity for their size
Defense Supply Center CID A-A-59700
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
330 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
310 mA |
|
Maximum DC Resistance: |
1.4 Ohms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Q Minimum: |
48 |
|
Self Resonant Frequency: |
650 MHz |
|
Termination: |
Standard |
|
Length: |
2.29 mm |
|
Width: |
1.73 mm |
|
Height: |
1.52 mm |
|
Mounting Style: |
PCB Mount |
|
Product: |
RF Inductors |
|
Product Type: |
RF Inductors - Leaded |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 MHz |
|
Unit Weight: |
10 mg |
