| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

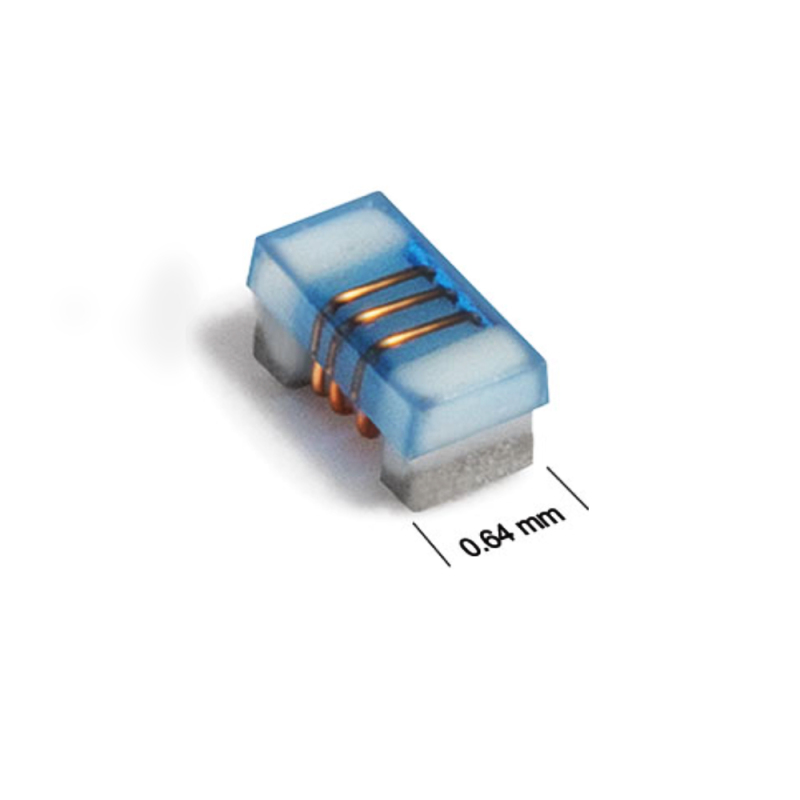

RF Inductors - SMD 1005 1nH Unshld 5% 1.36A 45mOhms AECQ2
Features：
Our 0402CS Series is qualified to AEC-Q200 Grade 1 standards, making it ideal for automotive and other high-temperature apllications. It features very high Q and self-resonant frequencies. For highest Q factor, consider our 0402DC Series (up to 120 nH) and our 0402HP Series (above 120 nH to 220 nH).
48 inductance values from 1 to 120 nH
Exceptionally high Q – up to 100 at 1.7 GHz!
Very high self-resonant frequencies - up to 12.7 GHz
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
1 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
1.36 A |
|
Maximum DC Resistance: |
45 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Q Minimum: |
69 |
|
Self Resonant Frequency: |
12.7 GHz |
|
Termination: |
Standard |
|
Length: |
1.19 mm |
|
Width: |
0.64 mm |
|
Height: |
0.66 mm |
|
Core Material: |
Ceramic |
|
Mounting Style: |
PCB Mount |
|
Product: |
RF Inductors |
|
Product Type: |
RF Inductors - Leaded |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
250 MHz |
|
Unit Weight: |
1 mg |
