| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 600pcs |
RF Inductors - SMD 1812 39uH Unshld 5% 0.21A 4.5Ohms
Features：

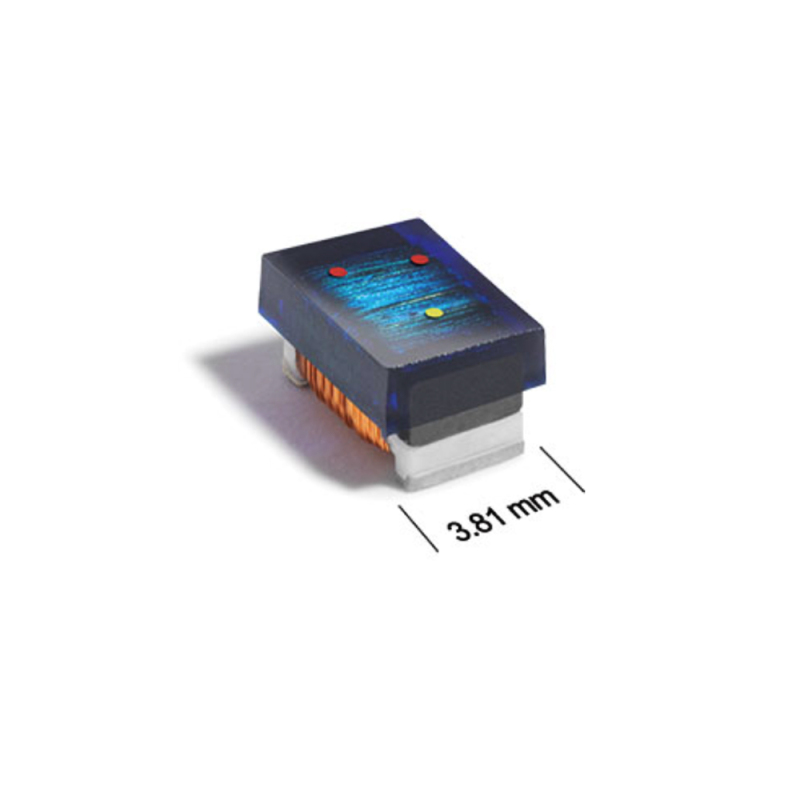

Our 1812LS Series wirewound chip inductors have a ferrite-ceramic core construction that gives excellent current handling and low DCR in an 1812 (4532) chip size. They are offered in a wide range of inductance from 12 uH to 1000 uH, with a tight ±5% tolerance for all values.
Inductance values from 12 µH to 1000 µH
±5% tolerance on all values
Excellent current carrying capacity
Defense Supply Center CID A-A-59699
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
39 uH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
210 mA |
|
Maximum DC Resistance: |
4.5 Ohms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Q Minimum: |
45 |
|
Self Resonant Frequency: |
30 MHz |
|
Termination: |
Standard |
|
Length: |
4.95 mm |
|
Width: |
3.81 mm |
|
Height: |
3.43 mm |
|
Core Material: |
Ceramic |
|
Test Frequency: |
2.5 MHz |
|
Unit Weight: |
27 mg |
