| Brand | Coilcraft |
| Date Code | 22+ / 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

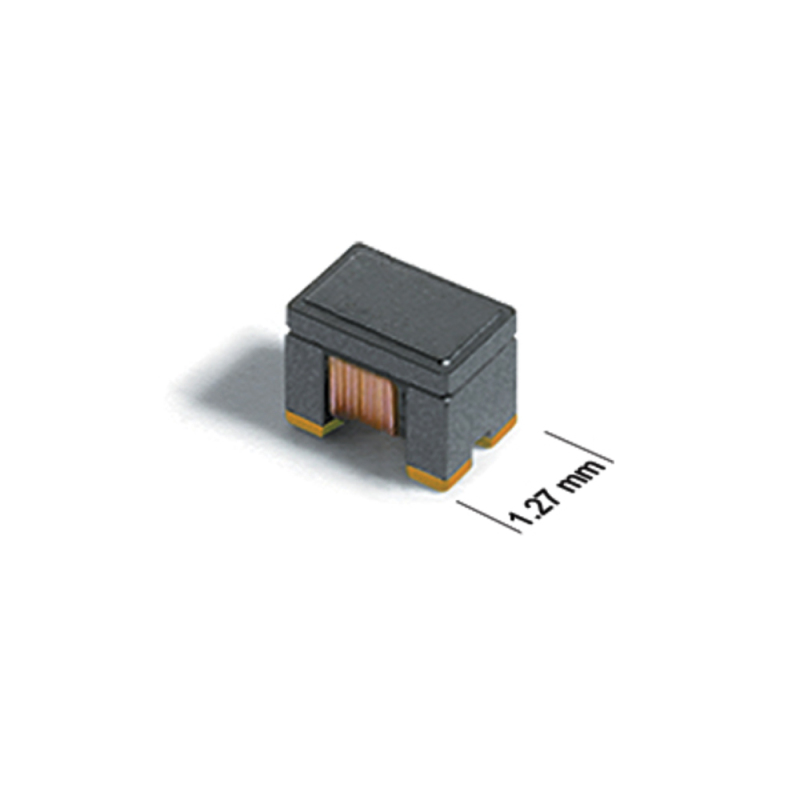

Common Mode Chokes / Filters For Hi Speed Signal 84nH DCR=.25Ohms
Features：

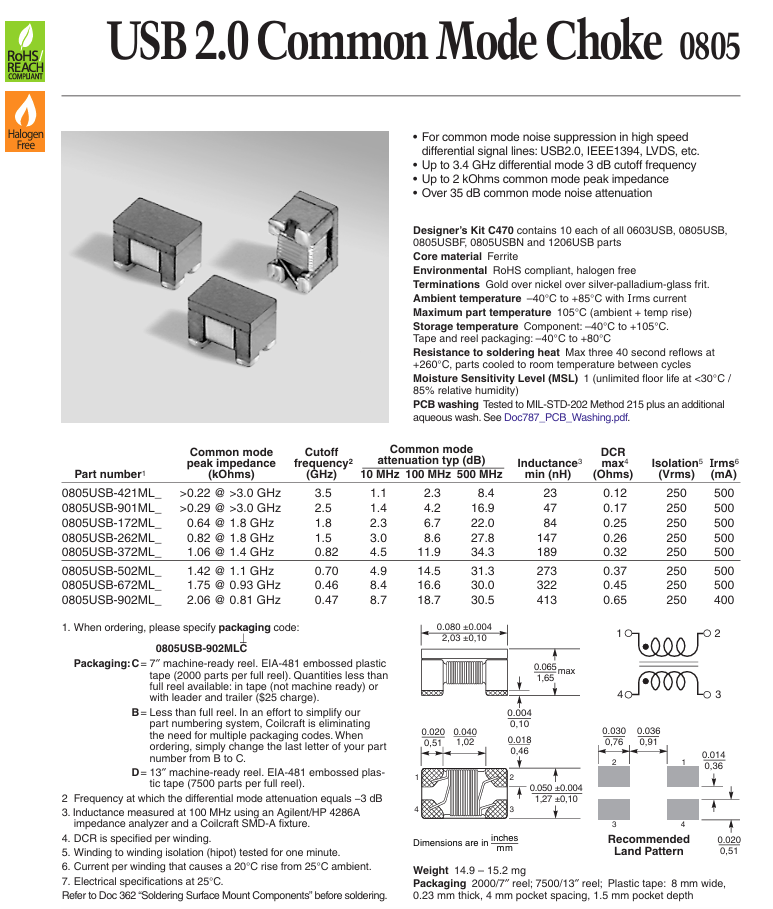

Our 0805USB Series was designed for common mode noise suppression in high-speed differential signal lines (USB2.0, IEEE1394, and LVDS) and provide up to 3.4 GHz differential mode 3 dB cutoff frequency. They provide up to 2 kOhms common mode peak impedance and more than 30 dB common mode noise attenuation.
For common mode noise suppression in high speed differential signal lines: USB2.0, IEEE1394, LVDS, etc.
For USB 3.x applications, consider our 0603USB, 0805USBF or 0805USBN series

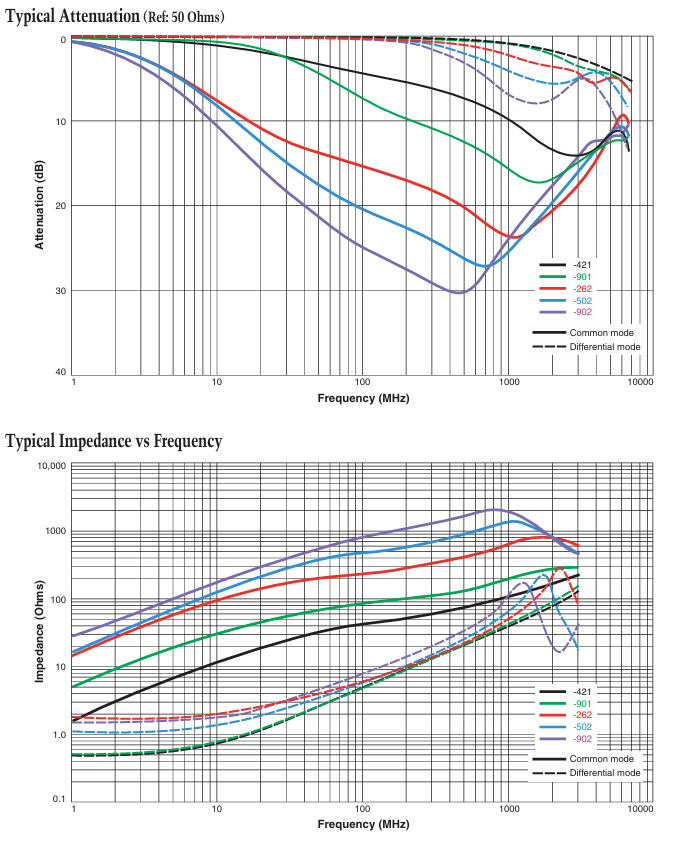

Up to 3.4 GHz differential mode 3 dB cutoff frequency
Up to 2 kOhms common mode peak impedance and more than 30 dB common mode noise attenuation
|
Product Attribute |
Attribute Value |
|
Inductance: |
84 nH |
|
Impedance: |
640 Ohms |
|
Maximum DC Current: |
500 mA |
|
Maximum DC Resistance: |
250 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Length: |
2.03 mm |
|
Width: |
1.27 mm |
|
Height: |
1.65 mm |
|
Product Type: |
Common Mode Chokes |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Unit Weight: |
300 mg |
