| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |
Features：

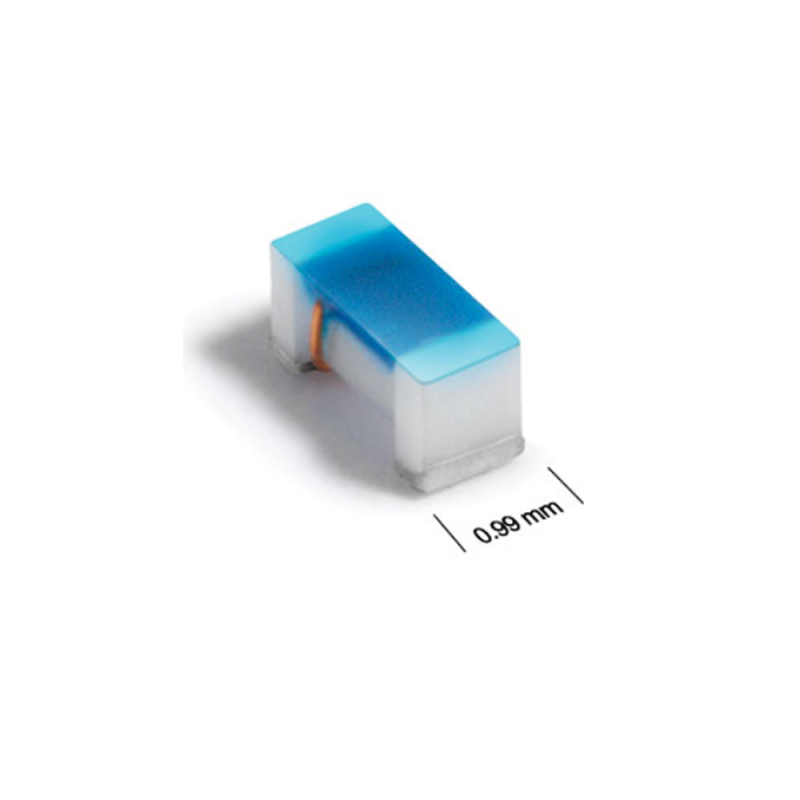

Our 0603DC Series achieves the industry’s highest Q factors in 0603 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 11.4 GHz – and achieve DCR as low as 29 mΩ, significantly lower than other inductors this size.
45 inductance values from 2.7 to 470 nH
High self-resonant frequencies – as high as 11.4 GHz
AEC-Q200 Grade 1 (−40°C to +125°C)
Exceptionally high Q – up to 177 at 2.4 GHz!
|
Product Category: |
RF Inductors - SMD |
|
Mounting Style: |
PCB Mount |
|
Product: |
RF Inductors |
|
Product Type: |
RF Inductors - Leaded |
|
Subcategory: |
Inductors, Chokes & Coils |
