| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |
Features：

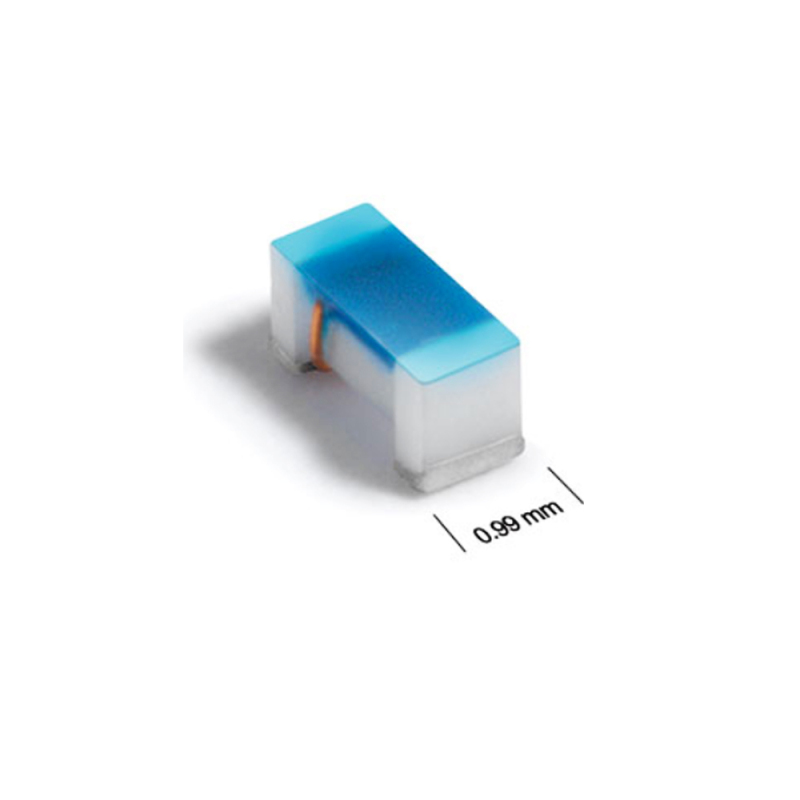

Our 0603DC Series achieves the industry’s highest Q factors in 0603 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 11.4 GHz – and achieve DCR as low as 29 mΩ, significantly lower than other inductors this size.
45 inductance values from 2.7 to 470 nH
High self-resonant frequencies – as high as 11.4 GHz
AEC-Q200 Grade 1 (−40°C to +125°C)
Exceptionally high Q – up to 177 at 2.4 GHz!
|
Product Attribute |
Attribute Value |
|
|
Product Category: |
RF Inductors - SMD |
|
|
Inductance: |
4.3 nH | |
|
Tolerance: |
5 % |
|
|
Maximum DC Current: |
2.8 A | |
|
Maximum DC Resistance: |
40 mOhms | |
|
Minimum Operating Temperature: |
- 40℃ |
|
|
Maximum Operating Temperature: |
+ 125℃ |
|
|
Self Resonant Frequency: |
10.6 GHz | |
|
Termination: |
Standard |
|
|
Length: |
1.7 mm |
|
|
Width: |
0.99 mm |
|
|
Height: |
0.89 mm |
|
|
Mounting Style: |
PCB Mount |
|
|
Product: |
RF Inductors |
|
|
Product Type: |
RF Inductors - Leaded |
|
|
Subcategory: |
Inductors, Chokes & Coils |
