| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 250pcs |

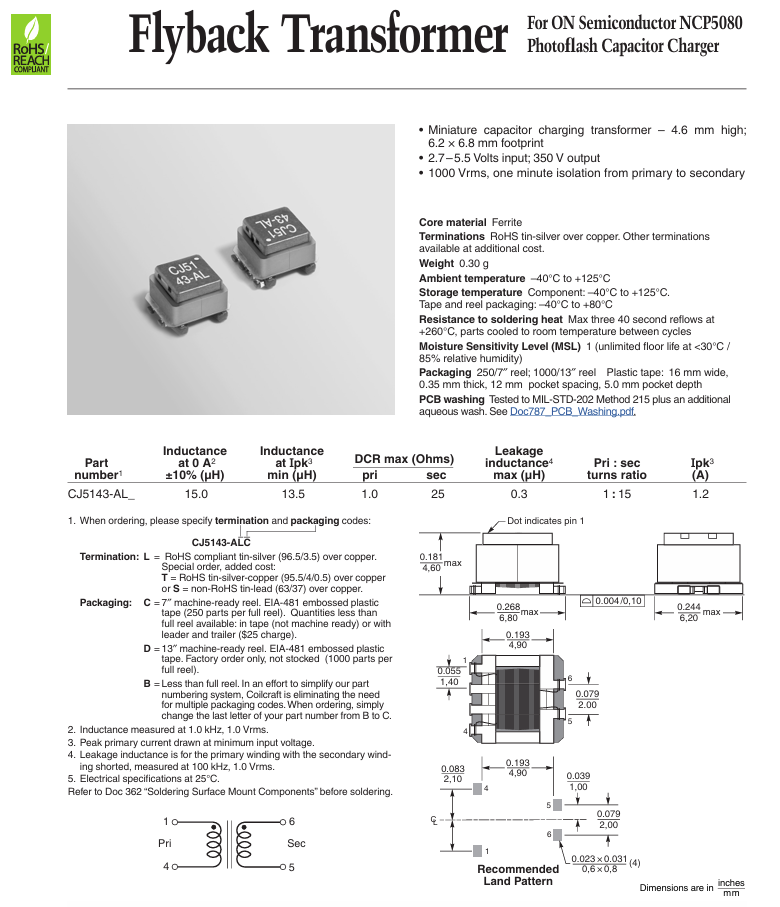

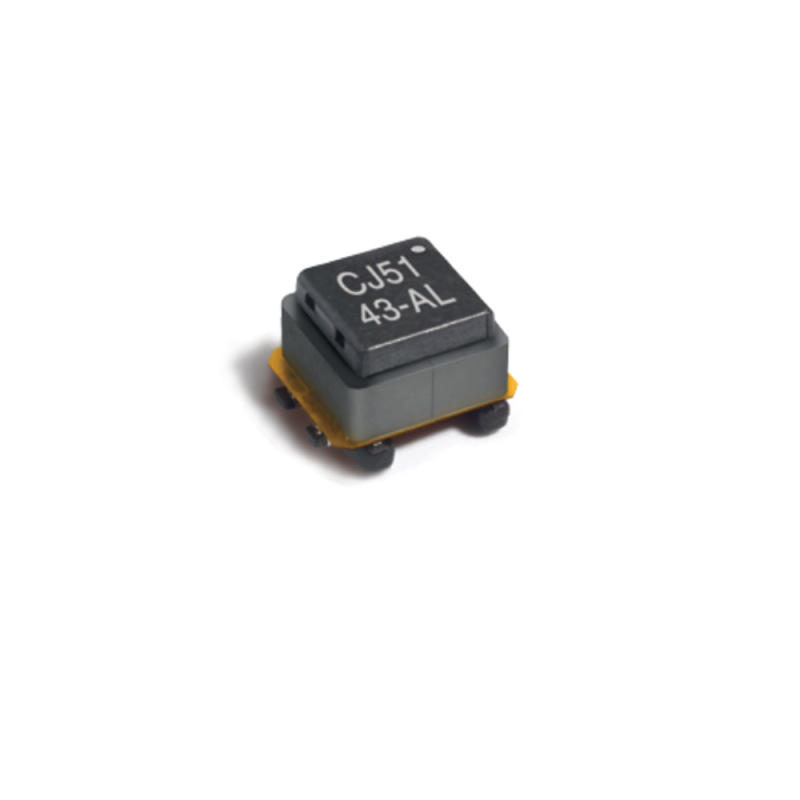

Audio Transformers / Signal Transformers CJ5143 for NCP5080 350V 1.2A SMT
Features：
Smallest capacitor charging transformer: 6.2 × 6.8 mm footprint and 4.6 mm high
Developed for ON Semiconductor NCP5080 Photoflash Capacitor Charger
|
Product Attribute |
Attribute Value |
|
Frequency Range: |
100 kHz |
|
Inductance: |
15 uH |
|
Isolation Voltage: |
1 kV |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Number of Channels: |
Single |
|
Application: |
NCP5080 Photoflash Capacitor Charger |
|
Length: |
6.8 mm |
|
Width: |
6.2 mm |
|
Height: |
4.6 mm |
|
Maximum DC Current: |
1.2 A |
|
Maximum DC Resistance: |
25 Ohms, 1 Ohms |
|
Primary Resistance: |
1 Ohms |
|
Product Type: |
Audio & Signal Transformers |
|
Secondary Resistance: |
25 Ohms |
|
Shielding: |
Shielded |
|
Subcategory: |
Transformers |
|
Unit Weight: |
300 mg |
