Features：

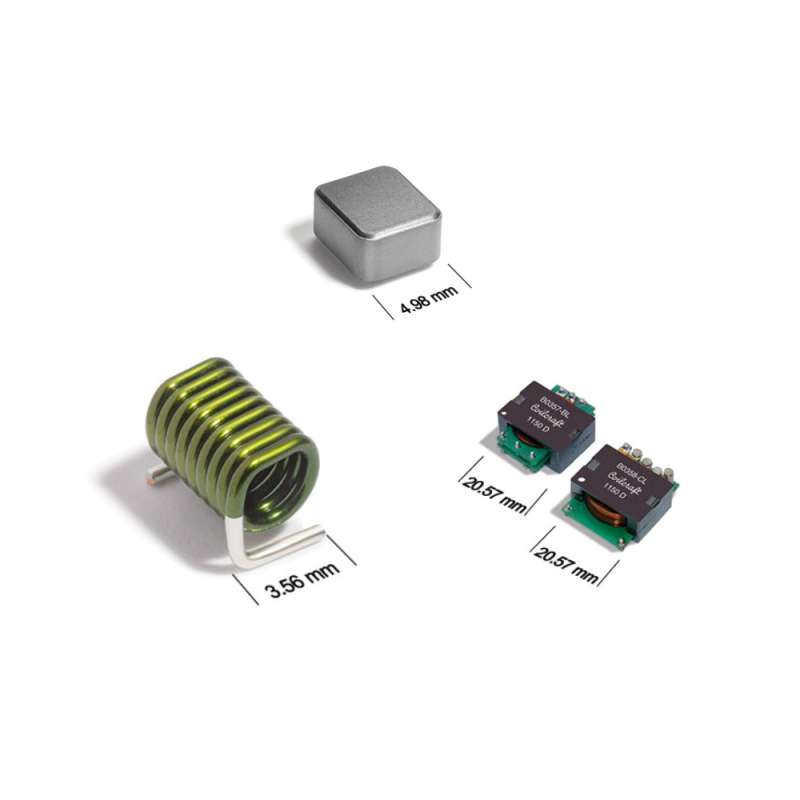

Our Midi Spring® air core inductors have exceptionaly high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications. As their name implies, air core inductors do not use a magnetic core, resulting in high Q and the lowest possible losses for high-frequency applications. They can withstand high temperatures, meeting AEC-Q200 Grade 1 (−40°C to +125°C) requirements. High-reliability versions are available for space, military, and other critical applications.
Inductance values from 22 nH to 150 nH
Exceptionally high Q even at low frequencies; Handles up to 3.5 Amps current
Tight tolerance (as low as ±2%) can eliminate circuit tuning
Flat top jacket for mechanical stability and reliable pick and place operations
Solder coated leads ensure reliable soldering
AEC-Q200 Grade 1 (−40°C to +125°C)
