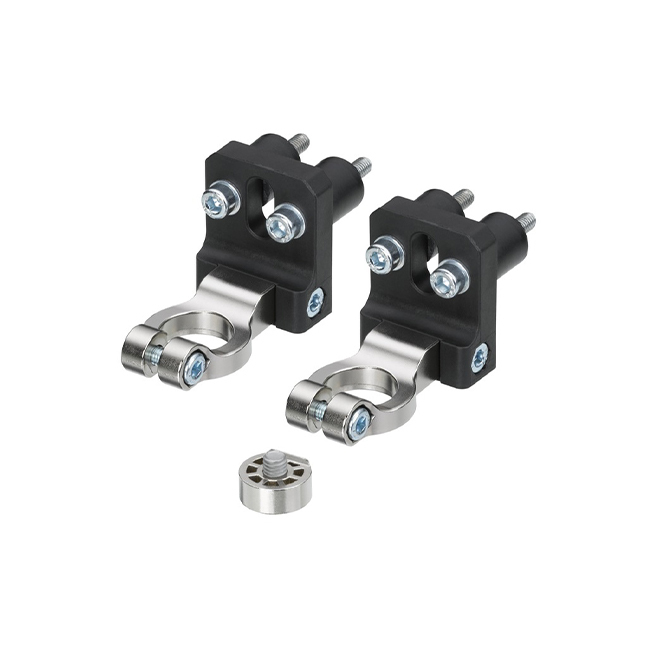

In Stock ! Leuze Mounting bracket set BT-2HF

Part no.: 429393

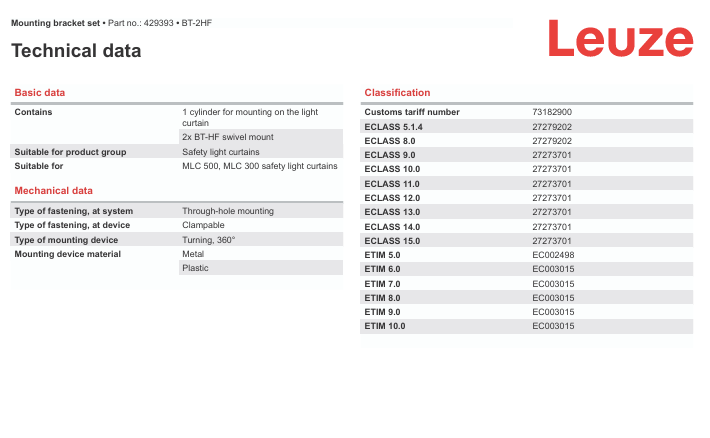

Features：

Contains：1 cylinder for mounting on the light curtain

2x BT-HF swivel mount

Suitable for product group：Safety light curtains

Suitable for：MLC 500, MLC 300 safety light curtains

Net weight：77 g

Type of fastening, at system：Through-hole mounting

Type of fastening, at device：Clampable

Type of mounting device：Turning, 360°

Mounting device material：Metal  Plastic

Mounting systems

A wide selection of mounting systems with mounting brackets, rod mounts and other systems are available for mounting the sensors. This allows the devices to be reliably mounted and easily aligned, where necessary.

Mounting brackets

For simple and fast mounting

Versions in galvanized material or stainless steel

Suitable for sensors in various sizes

Rod mounts

For easily mounting on rods

Versions in galvanized material or stainless steel

Suitable for sensors and accessories in various sizes

Clamp brackets

For simple and fast mounting, some with limit stop

Versions in galvanized material or plastic

Suitable for sensors in various sizes

Mounting brackets for hand-held scanners

Wall mounts or table supports for easy use

Versions in metal or plastic

Available for different devices in various versions

Other mounting systems

Sliding blocks

Swiveling mounting brackets

Adjustable mounting brackets and much more
