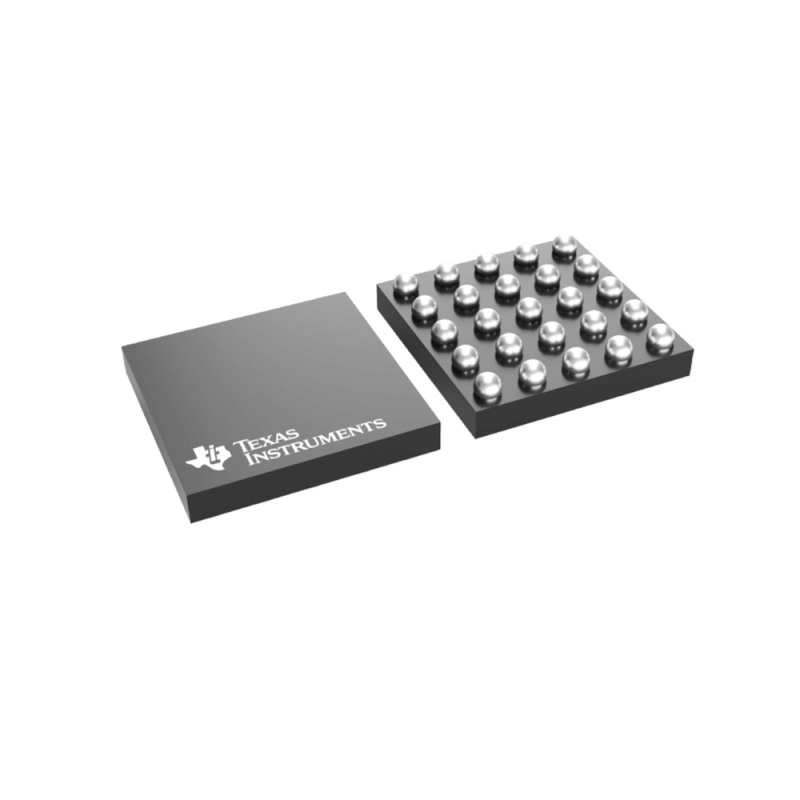

| Brand | Texas Instruments |
| Date Code | 2130 |
| Packing | Reel |
| Package | DSBGA-25 |
| Minimum Packing | 250pcs |
300-mA linear battery charger with Power Path, integrated LDO and buck converter 2.5V default output
Features：
uality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSnAgCu |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
|
Quality, reliability View or download |
Packaging information
|
Package | PinsDSBGA (YFP) | 25 |
|
Operating temperature range (°C)-40 to 85 |
|
Package qty | Carrier3,000 | LARGE T&R |
Features for the BQ25121A
Increases system operation time between charges
Configurable 300-mA buck regulator (2.5-V default)
700-nA (typical) Iq with buck converter enabled (no load)
Configurable load switch or 100-mA LDO output ( load switch by default)
Up to 300-mA charge current for fast charging.
0.5% Accurate battery voltage regulation (configurable from 3.6 V to 4.65 V in 10-mV steps)
Configurable termination current down to 500 µA
Simple voltage based battery monitor
Watchdog timer disabled
Highly integrated solution with small footprint
2.5-mm x 2.5-mm WCSP Package and six external components for minimal solution
Push-button wake-up and reset with adjustable timers
Power path management for powering the system and charging the battery
Power path management enables < 50 nA Ship Mode battery quiescent current for longest shelf life
Battery charger operates from 3.4 V – 5.5 VIN (5.5-V OVP / 20-V tolerant)
Dedicated pins for input current limit, charge current, termination current, and status output
I2C communication control
Charge voltage and current
Termination threshold
Input current limit
VINDPM Threshold
Timer options
Load switch control
System output voltage adjustment
LDO output voltage adjustment
Safety-Related Certification:
TUV IEC 62368-1 Certification

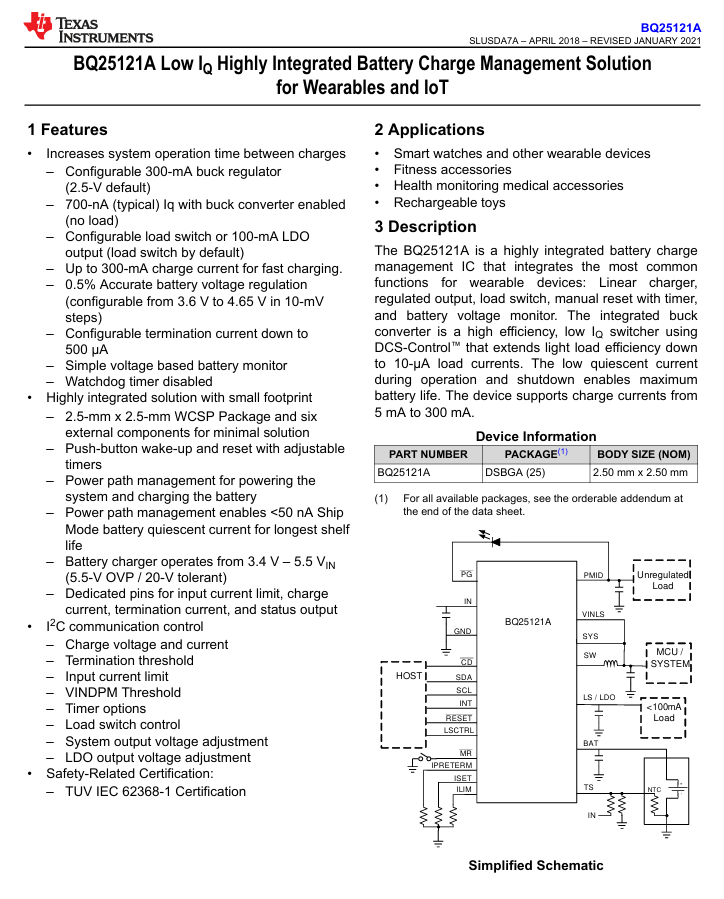

Description for the BQ25121A
The BQ25121A is a highly integrated battery charge management IC that integrates the most common functions for wearable devices: Linear charger, regulated output, load switch, manual reset with timer, and battery voltage monitor. The integrated buck converter is a high efficiency, low IQ switcher using DCS-Control™ that extends light load efficiency down to 10-µA load currents. The low quiescent current during operation and shutdown enables maximum battery life. The device supports charge currents from 5 mA to 300 mA.
The battery is charged using a standard Li-Ion charge profile with three phases: precharge, constant current and constant voltage. A voltage-based JEITA compatible battery pack thermistor monitoring input (TS) is included that monitors battery temperature and automatically changes charge parameters to prevent the battery from charging outside of its safe temperature range. The charger is optimized for 5-V USB input, with 20-V tolerance to withstand line transients. The buck converter is run from the input or battery. When in battery only mode, the device can run from a battery up to 4.65 V.
A configurable load switch allows system optimization by disconnecting infrequently used devices. The manual reset with timer allows multiple different configuration options for wake are reset optimization. A simple voltage based monitor provides battery level information to the host in 2% increments from 60% to 100% of the programmed V(BATREG).
