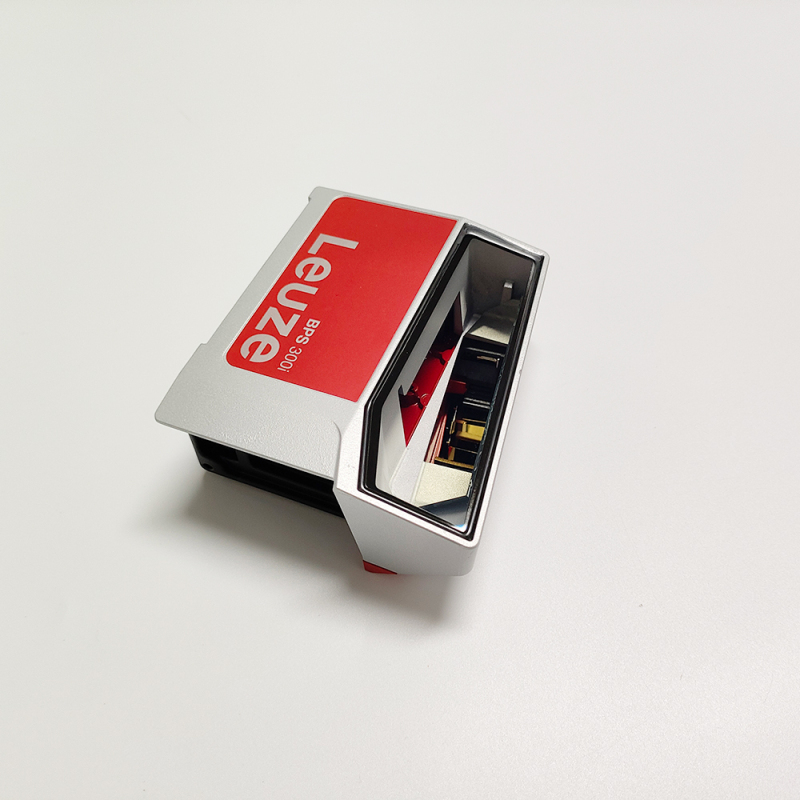

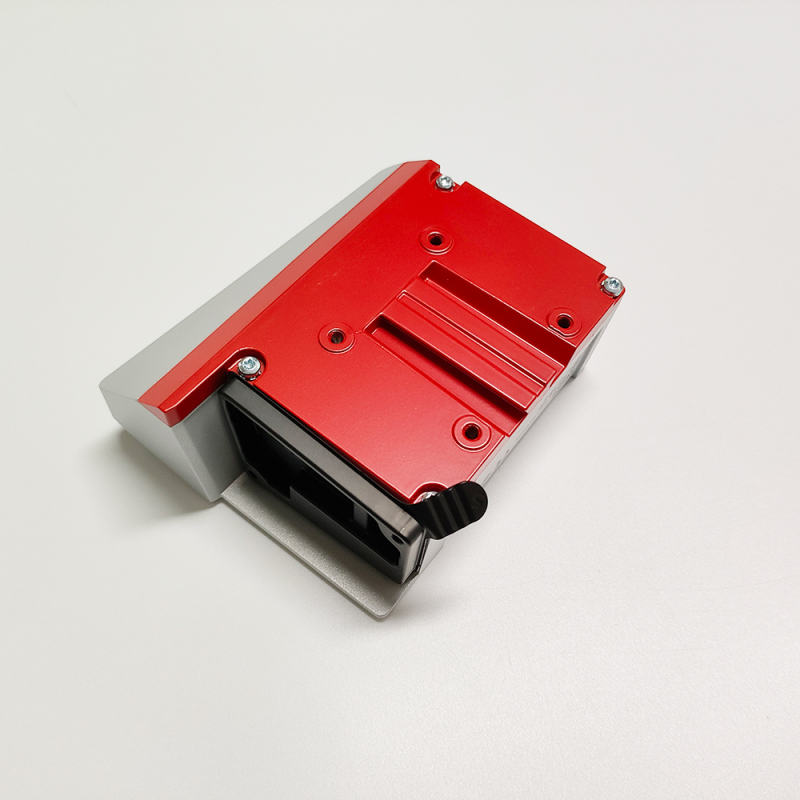

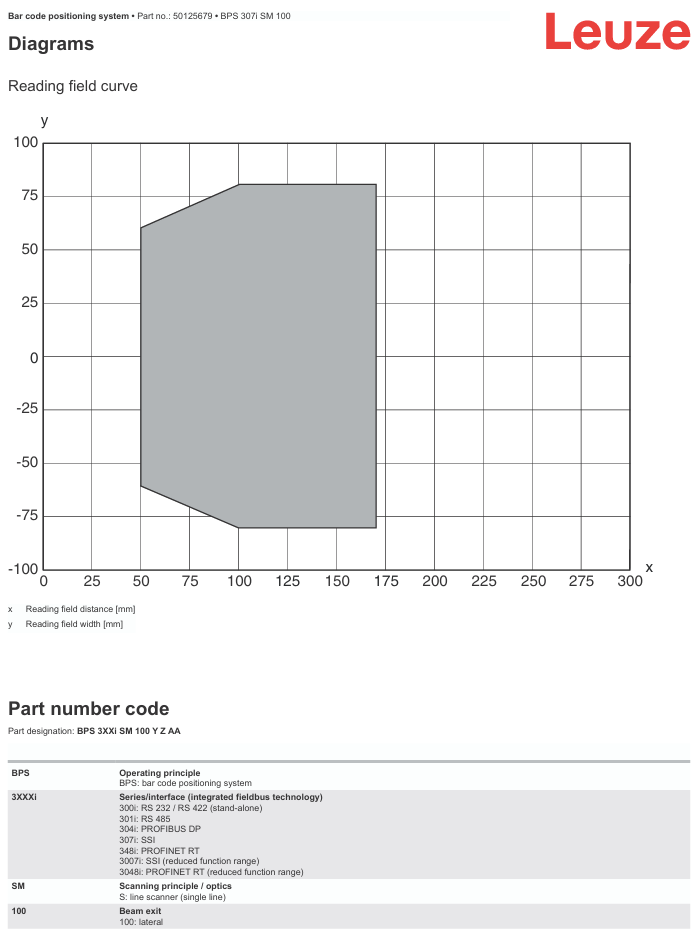

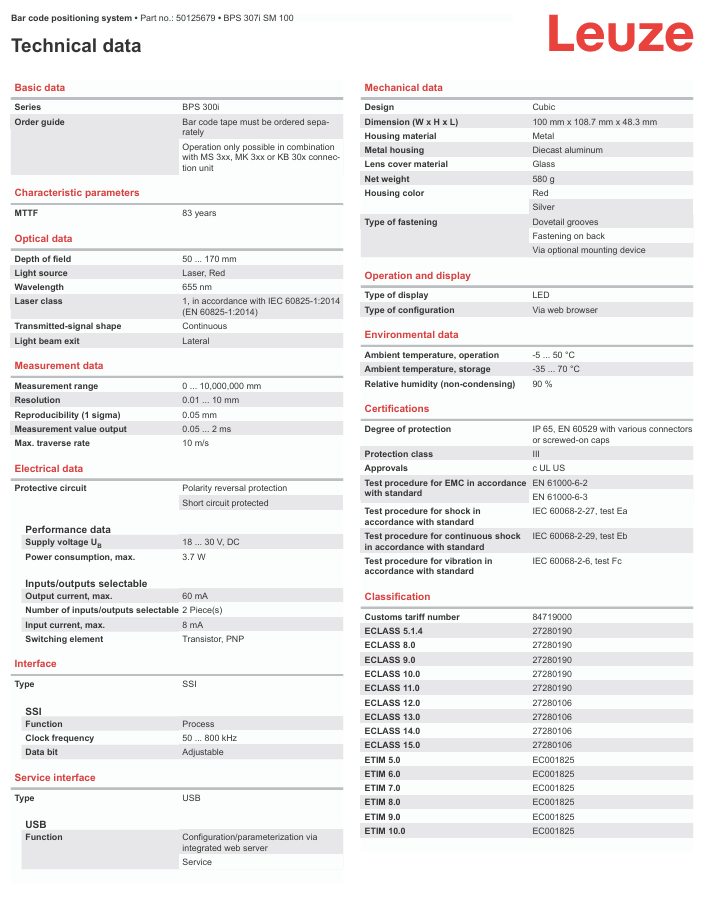

Features：Depth of field：50 ... 170 mm
Light source：Laser, Red
Laser class：1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
Transmitted-signal shape：Continuous
Light beam exit：Lateral
Measurement range：0 ... 10,000,000 mm
Reproducibility (1 sigma)：0.05 mm
Measurement value output：0.05 ... 2 ms
Max. traverse rate：10 m/s
Supply voltage UB：18 ... 30 V, DC
Power consumption, max.：3.7 W
Design：Cubic

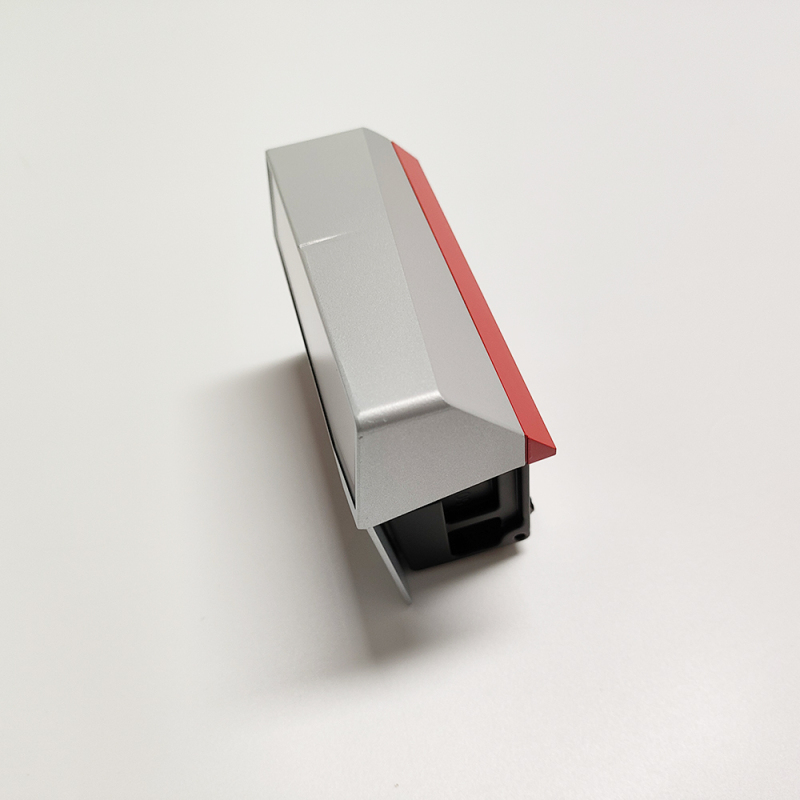

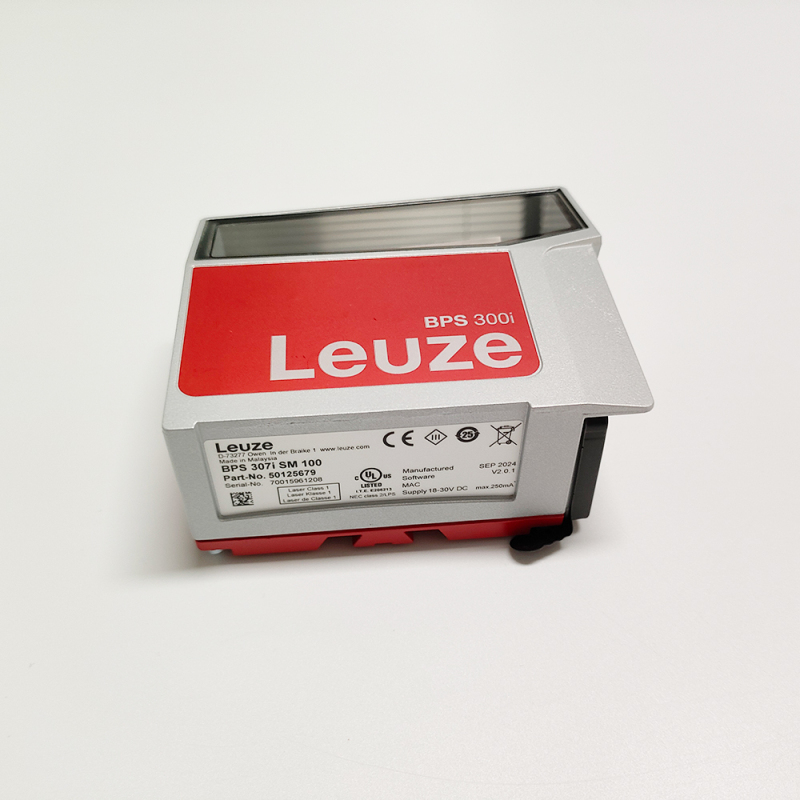

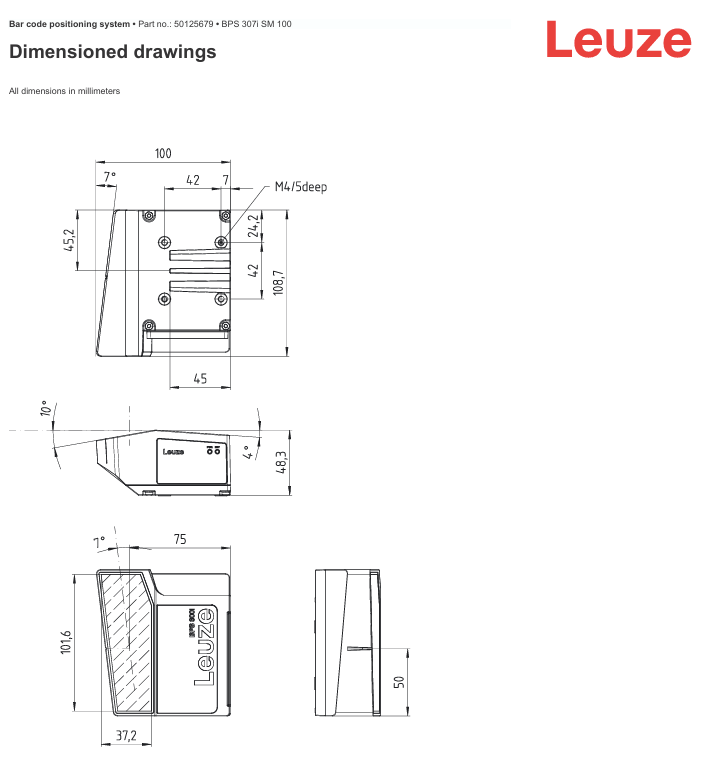

Dimension (W x H x L)：100 mm x 108.7 mm x 48.3 mm
Housing material：Metal
Lens cover material：Glass
Net weight：580 g
Ambient temperature, operation：-5 ... 50 °C
Ambient temperature, storage：-35 ... 70 °C
Relative humidity (non-condensing)：90 %

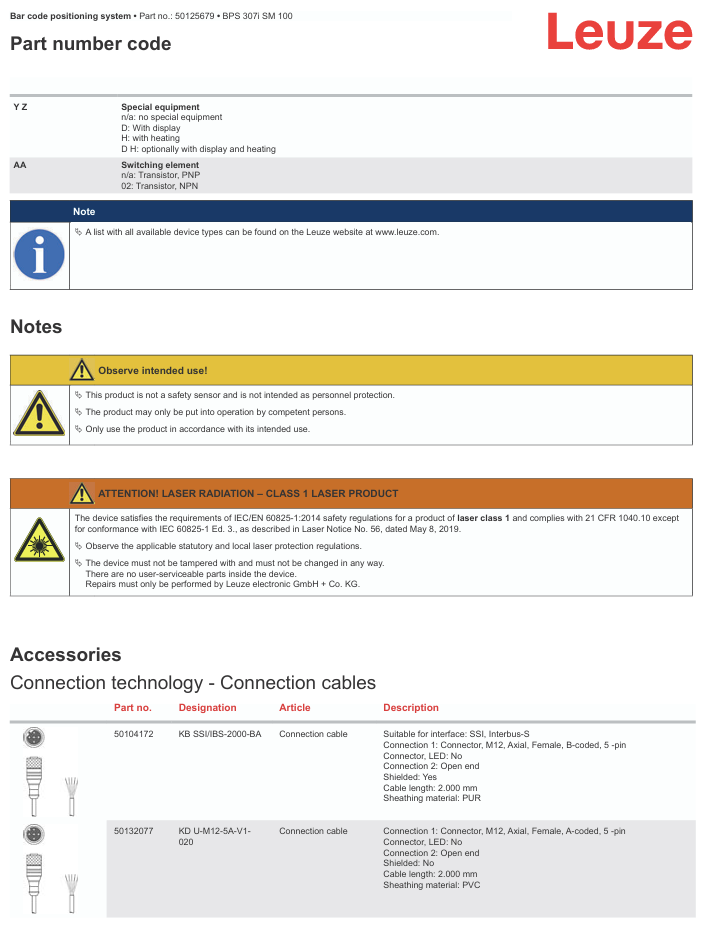

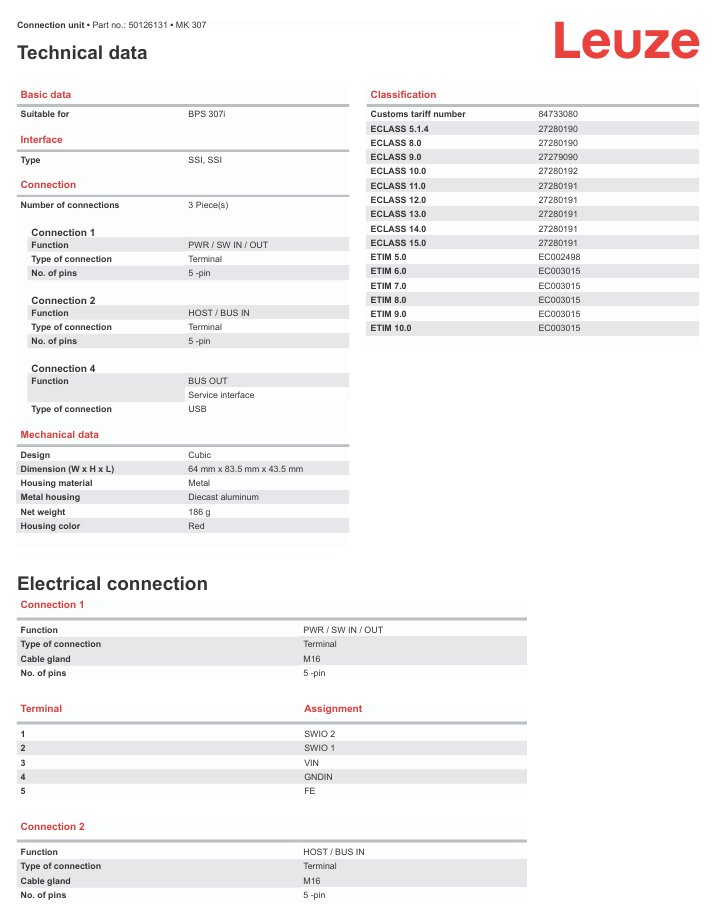

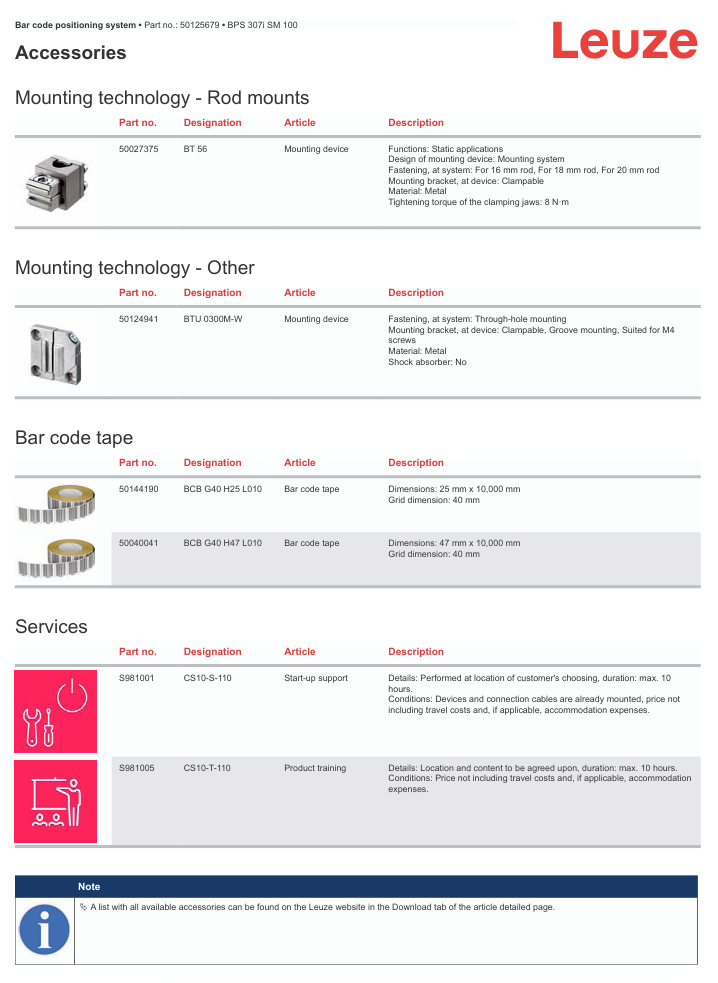

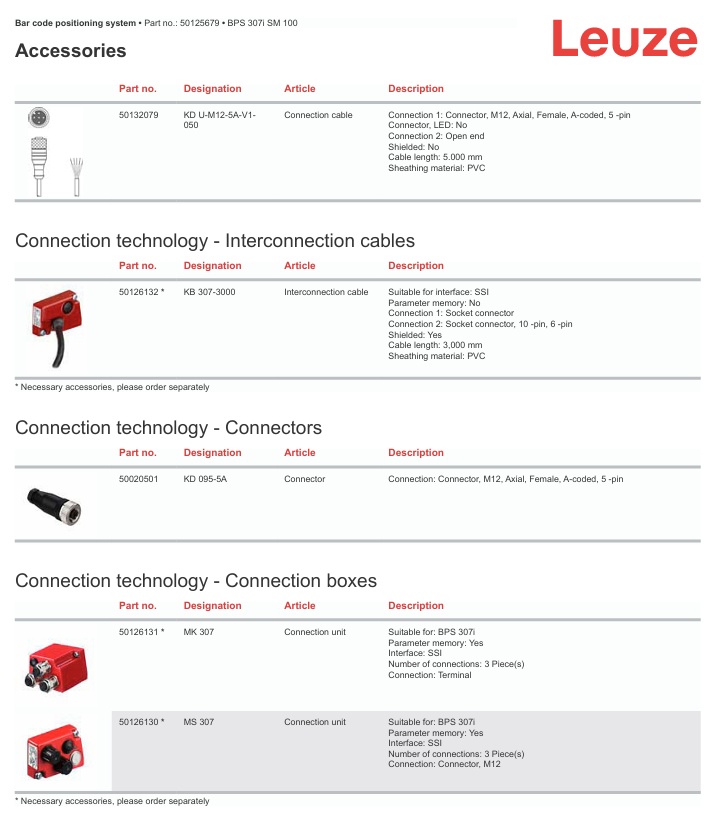

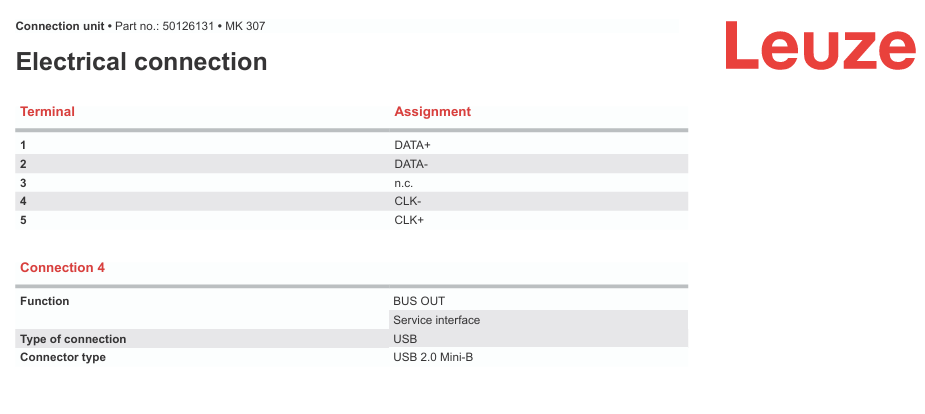

Sensors for positioning
With moving system parts that need to automatically work together, the positioning of parts or work pieces with millimeter accuracy is of great importance. For this purpose, sensors with various operating principles are provided: Laser distance measurement devices that measure against a reflector, bar code positioning systems whose red light laser determines position and speed relative to a bar code tape, sensors for optical guidance using edge detection as well as solutions for camera-based compartment fine positioning.
Bar code positioning systems
Extremely flexible positioning using bar code tape up to 10 km
Large working range with +/-1 mm positioning accuracy
Various series and many interfaces
Laser positioning systems
Precise positioning against reflector up to 300 m
High measurement value stability at high speed
With optics heating for low-temperature applications
Optical guidance
Short distance to track of 10 mm to 60 mm
Variants with 140 mm or 280 mm detection range
High resolution and flexibility through detection of up to 12 edges
Camera-based compartment fine positioning
Large working range up to 2,400 mm
Integrated web server and industrial interfaces (Ethernet TCP/IP, Profinet and Ethernet/IP)
Version with heating at ambient temperatures as low as -30°C
