Features：B3 subminiature basic switches, available in commercial and military grades, offer low-level switching and high cycle life.
Low level switching capability
Less than 25mΩ contact resistance
Up to 8 amps switching capability
Button accepts actuation directly from a cam
Choice of 0.156” & 0.200” wide models
Choice of 6 standard terminal styles or wire leads
Available in Commercial & Military grades
Qualified under MIL-PRF-8805/76 & MIL-PRF-8805/101
Momentary action
UL recognized
RoHS compliant

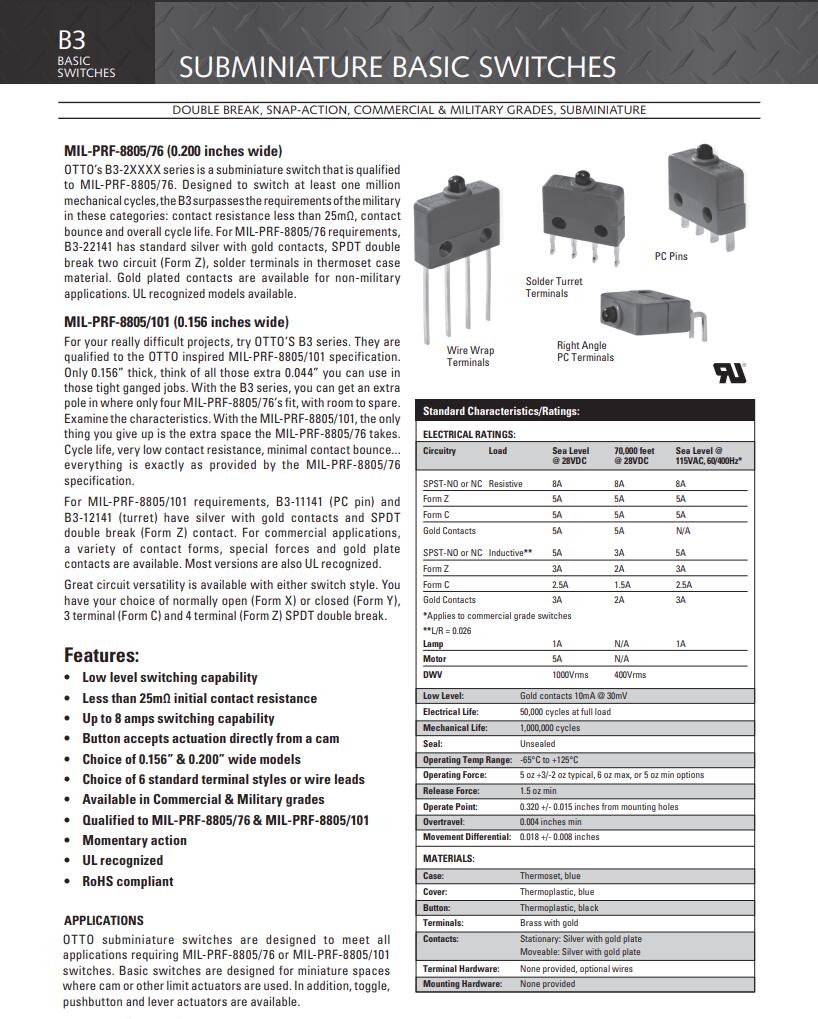

MIL-PRF-8805/76 (0.200 inches wide): OTTO’s B3-2XXXX series is a subminiature switch that is qualified to MIL-PRF-8805/76. Designed to switch at least one million mechanical cycles, the B3 surpasses the requirements of the military in these categories: contact resistance less than 25mΩ, contact bounce and overall cycle life. For MIL-PRF-8805/76 requirements, B3-22141 has standard silver with gold contacts, SPDT double break two circuit (Form Z), solder terminals in thermoset case material. Gold plated contacts are available for non-military applications. UL recognized models available.
MIL-PRF-8805/10
