| Brand | ADI |
| Date Code | 2150 |
| Packing | Reel |

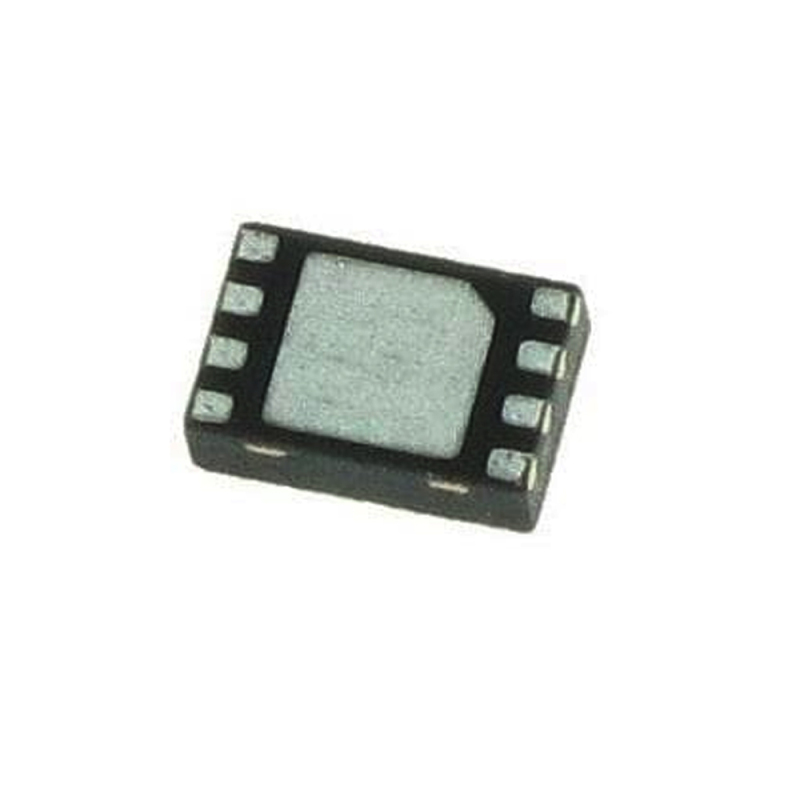

| Package | DFN-8 |
| Minimum Packing | 500pcs |

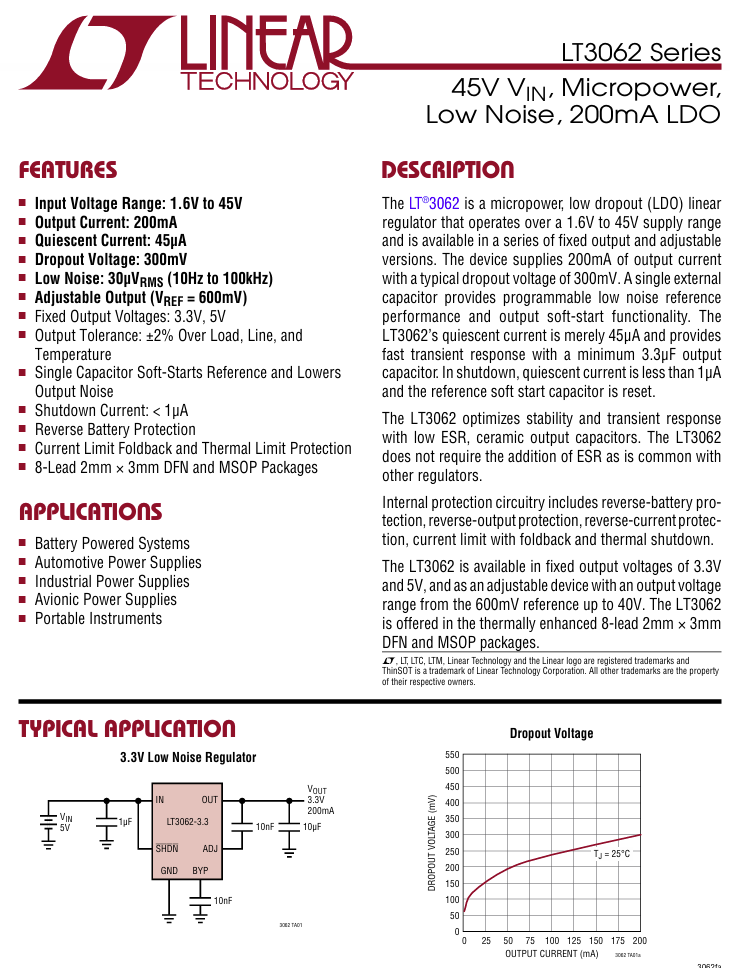

LDO Voltage Regulators 45V Vin, uP, L N, 200mA LDO
Features：
Input Voltage Range: 1.6V to 45V
Output Current: 200mA
Quiescent Current: 45μA
Dropout Voltage: 300mV
Low Noise: 30μVRMS (10Hz to 100kHz)
Adjustable Output (VREF = 600mV)
Fixed Output Voltages: 3.3V, 5V
Output Tolerance: ±2% Over Load, Line, and Temperature
Single Capacitor Soft-Starts Reference and Lowers Output Noise
Shutdown Current: < 1μA
Reverse Battery Protection
Current Limit Foldback and Thermal Limit Protection
8-Lead 2mm × 3mm DFN and MSOP Packages
The LT3062 is a micropower, low dropout (LDO) linear regulator that operates over a 1.6V to 45V supply range and is available in a series of fixed output and adjustable versions. The device supplies 200mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. The LT3062’s quiescent current is merely 45μA and provides fast transient response with a minimum 3.3μF output capacitor. In shutdown, quiescent current is less than 1μA and the reference soft start capacitor is reset.
The LT3062 optimizes stability and transient response with low ESR, ceramic output capacitors. The LT3062 does not require the addition of ESR as is common with other regulators.
Internal protection circuitry includes reverse-battery protection, reverse-output protection, reverse-current protection, current limit with foldback and thermal shutdown.
The LT3062 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from the 600mV reference up to 40V. The LT3062 is offered in the thermally enhanced 8-lead 2mm × 3mm DFN and MSOP packages.
Applications
Battery Powered Systems
Automotive Power Supplies
Industrial Power Supplies
Avionic Power Supplies
Portable Instruments
